MHO3 Series High Resolution Oscilloscope

Name: MHO3 Series High Resolution Oscilloscope
Brand: Micsig
SKU: MHO3-5004
Price: 23999.0 HKD
Availability: InStock

From $19,999.00

Key Features

Bandwidth: 500MHz, 350MHz, 250MHz
Analog channels: 4
Real-time sampling rate: up to 3GSa/s
Memory depth: up to 360Mpts
Vertical resolution: 12-bit

Model

MHO3-5004 MHO3-3504 MHO3-2504

$23,999.00

Download datasheet

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Product Introduction

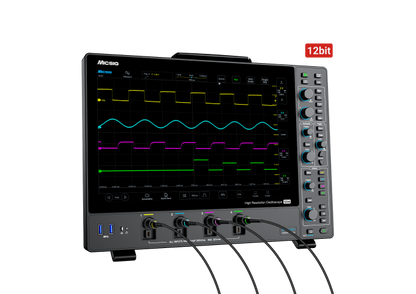

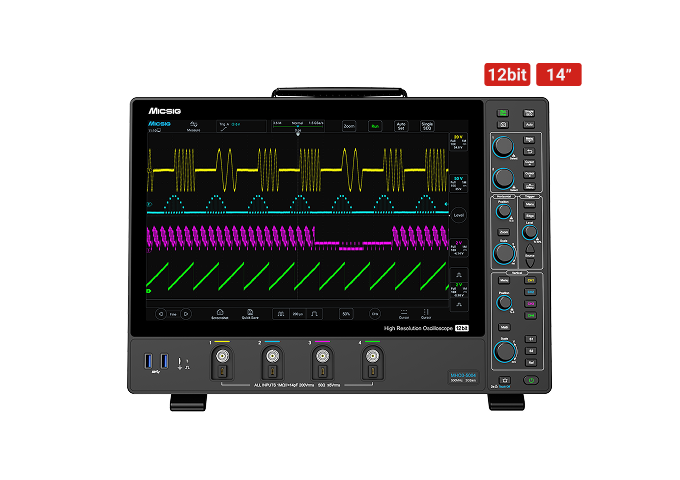

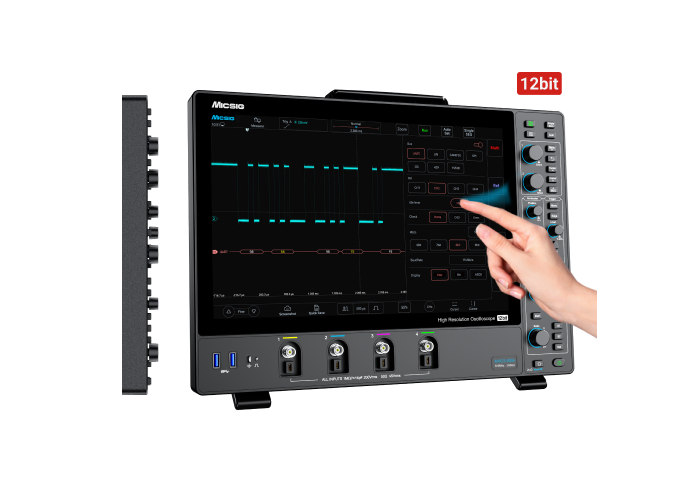

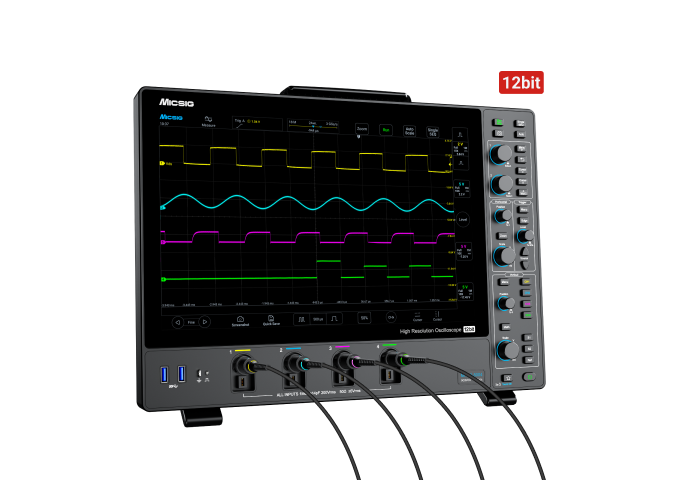

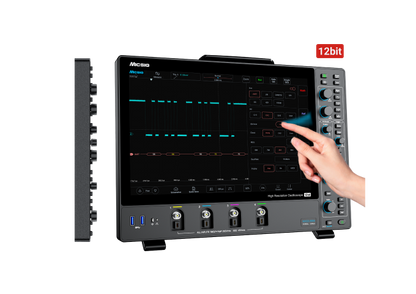

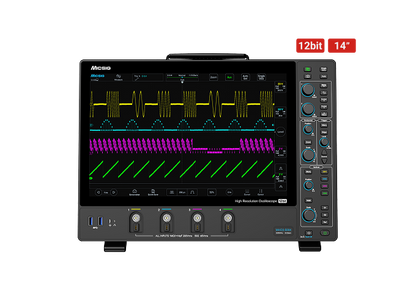

High Resolution Oscilloscope MHO 3 Series has 500MHz bandwidth, 3GSa/s sampling rate, 4 analog channels, 360Mpts memory depth and 12 bits vertical resolution; 3.75cm ultra-thin body support wall /arm mounting; 14-inch integrated touch screen with resolution of 1920 x 1200 brings unmatched waveform display. 12-bit Vertical Resolution MHO 3 series has 12-bit high-resolution ADC with a quantization level of up to 4096, which is 16 times that of traditional 8-bit ADC, helping users to observe waveform details more comprehensively and clearly. Most Friendly UI Equipped with instrument-dedicated SigTestUI™ operating system, and accumulation of 10 years of UI design experience, the MHO 3 series evolved to simplify all user interfaces, newer engineers can quickly learn to use in 5 minutes.

Specifications

Model	MHO3-5004	MHO3-3504	MHO3-2504
Bandwidth	500MHz	350MHz	250MHz
Rise Time	≤0.7ns	≤1ns	≤1.4ns
Analog Channels	4	4	4
Real-time Sampling Rate	3GSa/s	3GSa/s	3GSa/s
Memory Depth	360Mpts	360Mpts	360Mpts
Vertical Resolution	12bit
Max.waveform Capture Rate	230,000wfms/s
Noise	＜80μVrms
Interfaces	USB 3.0 Host、USB Type-C、HDMI、Trigger out
Display	14" full touch display, 1920 x 1200 resolution
Dimension	28039737.5mm
