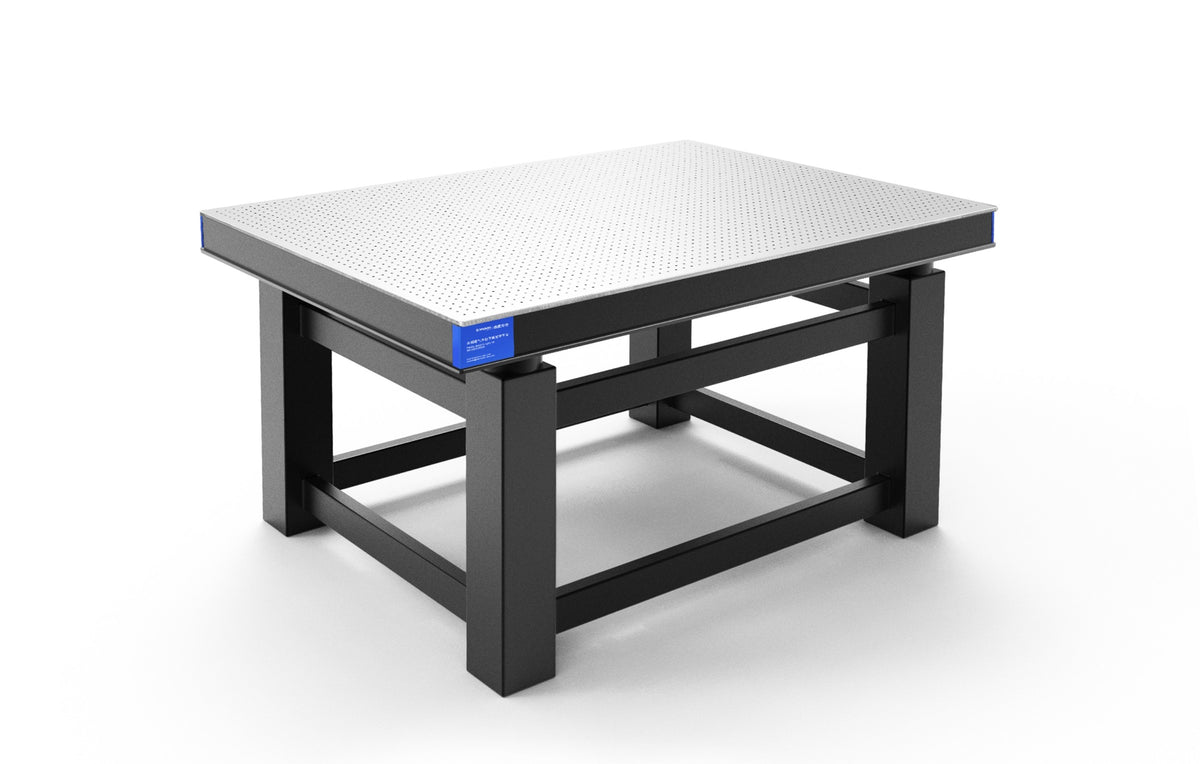

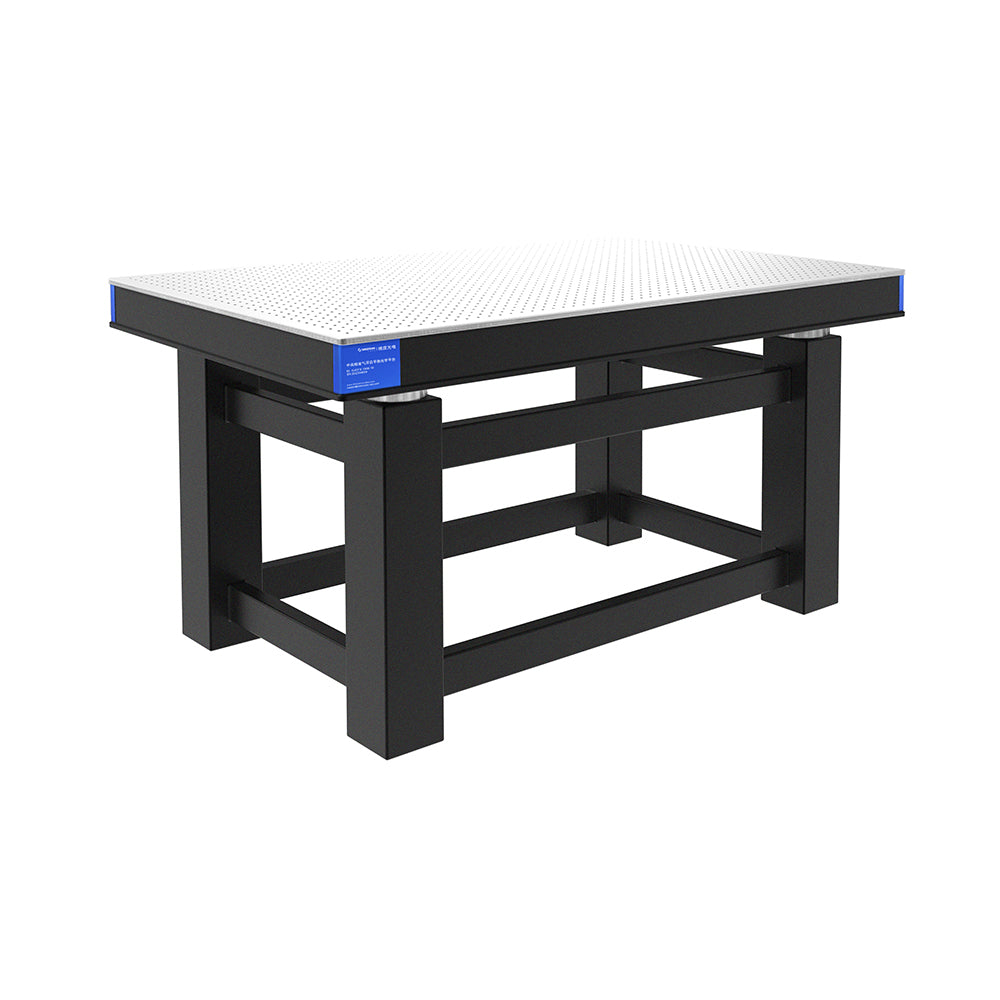

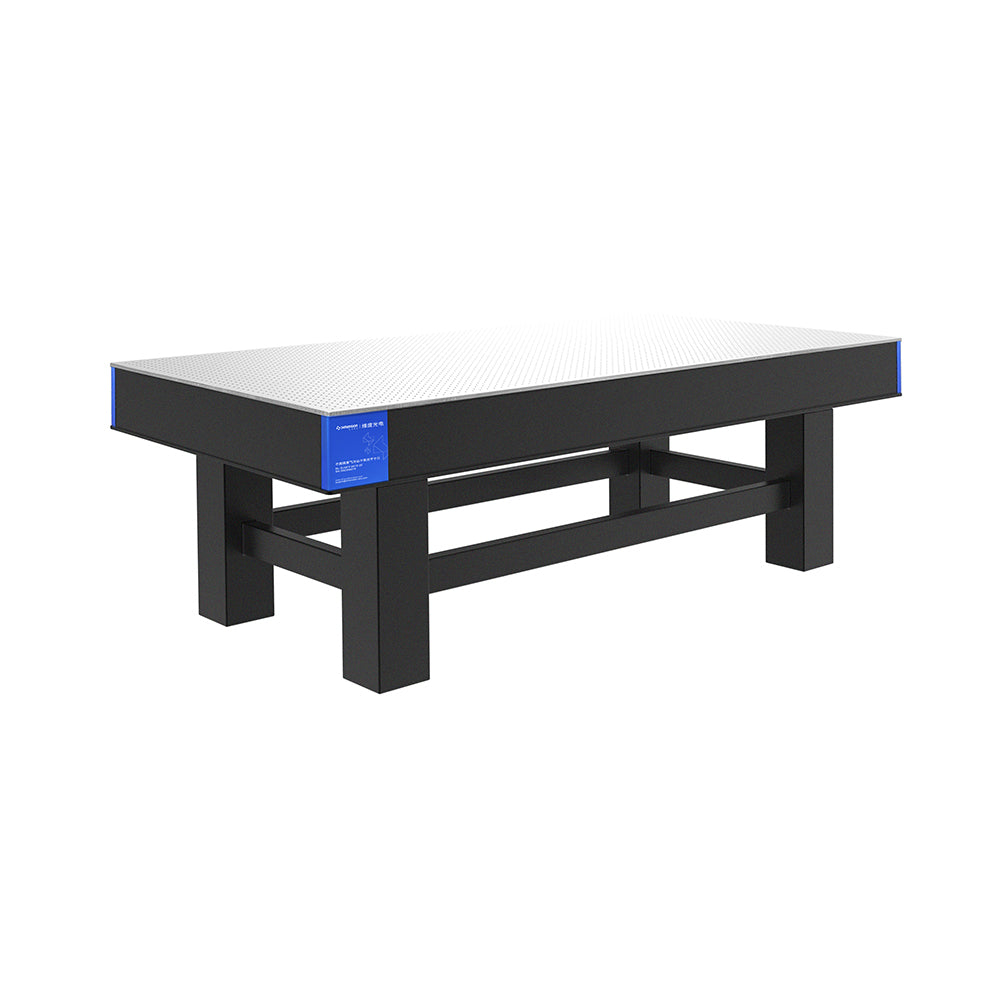

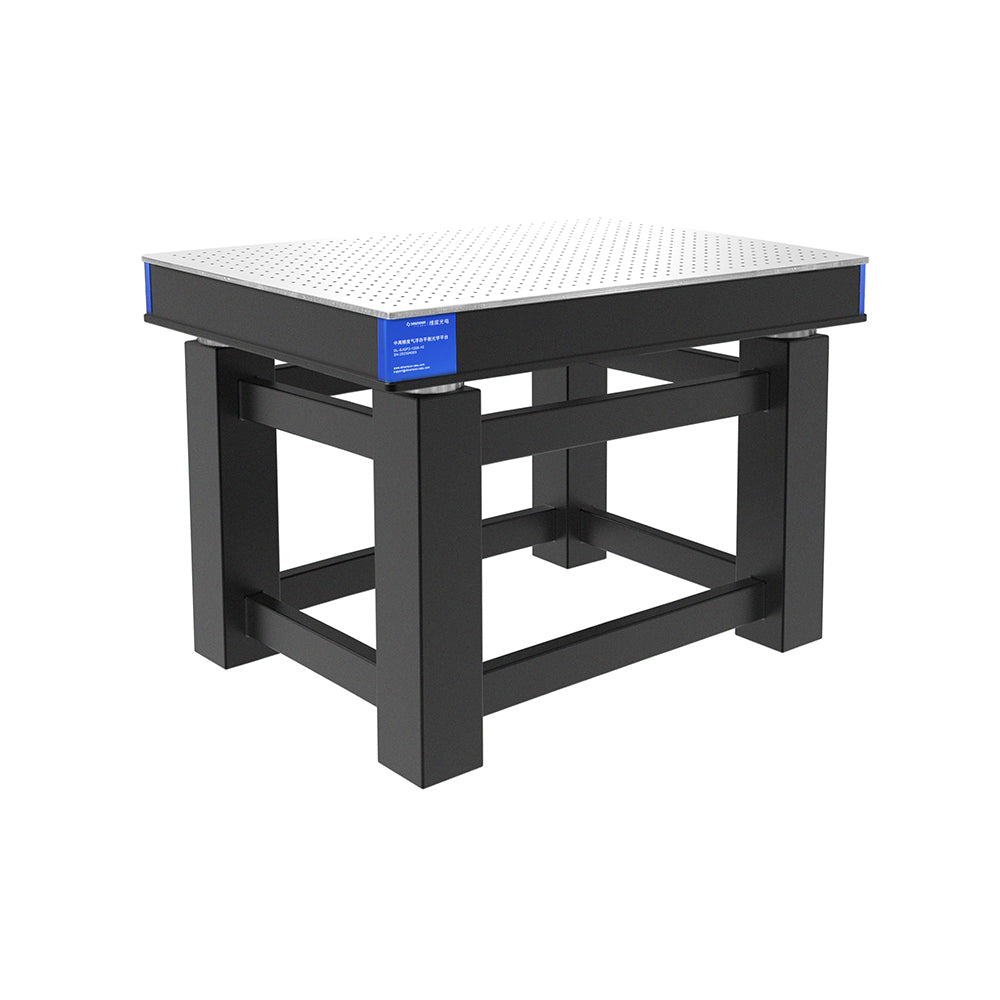

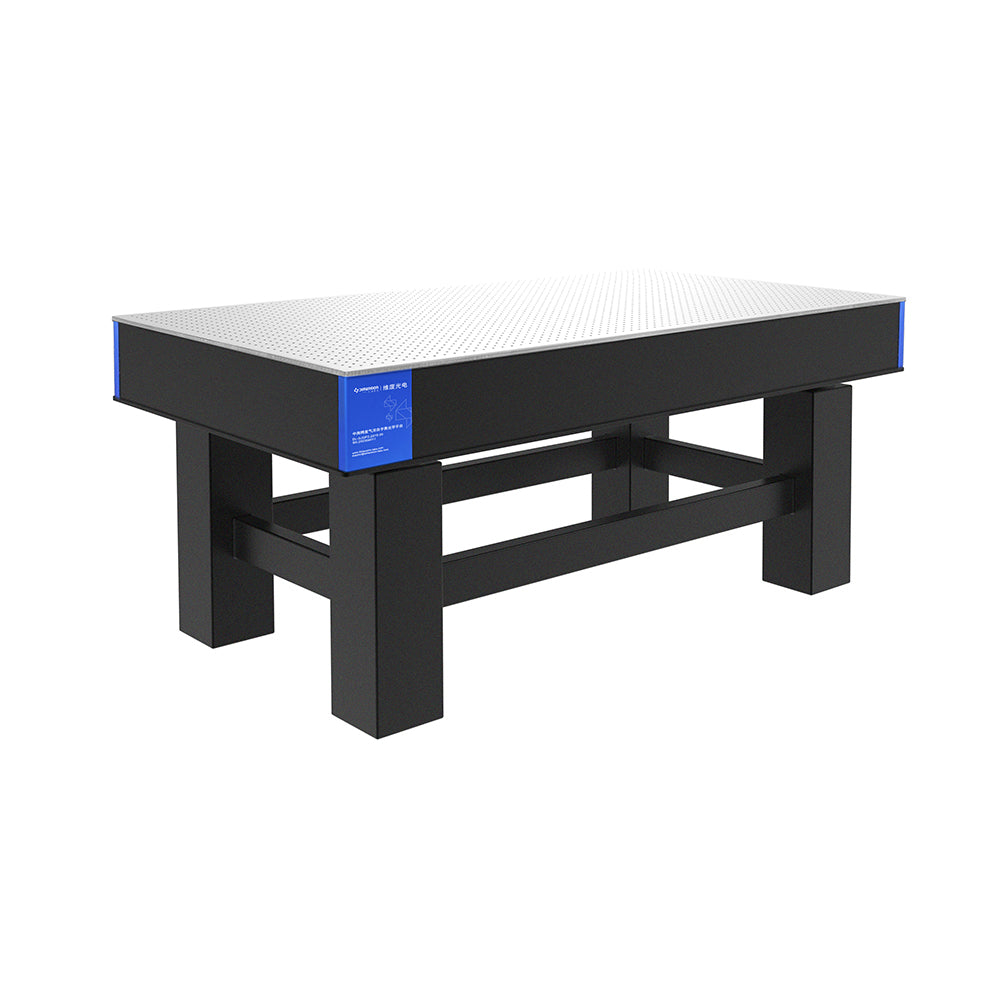

Name: Medium-Precision Air-Floating Self-Balancing Optical Table
Brand: Dimension-Labs
SKU: DL-GJQF2-0906-05
Availability: InStock

The DL-GJQF2 series is an air-floating (pneumatic) vibration-isolated optical table with automatic self-leveling, offering good vertical and horizontal isolation at a lower cost than the DL-GJQF1 series. Floor vibration at 5 Hz and 10 Hz is reduced by about 80% and 96% respectively, suitable for most optics and laser laboratories.

The table top is 12Cr13 ferromagnetic stainless-steel top with M6 tapped holes on a 25 mm × 25 mm grid, flatness 0.1 mm/m² and textured matte finish (Ra 0.8–1.6 µm).

Table Construction

Welded steel-grid core: 6 mm steel plates welded into a cross-grid core and stress-relieved by high-temperature tempering and ageing. Heavy and very rigid, with minimal deflection under heavy loads and no risk of debonding. 22 standard sizes from 900 × 600 mm up to 6000 × 1500 mm.
Bonded honeycomb core (models ending in -A): Stainless top plate, sealed isolation-cup layer, bonded honeycomb core and steel bottom plate. Lighter and easier to move and install; the dust-proof cups stop liquids and debris entering the core and block air flow between tapped holes. 13 standard sizes from 900 × 600 mm up to 2400 × 1500 mm.

Models & Specifications

Welded steel-grid core

Specification	Value
Flatness (mm/m²)	0.1
Vertical Natural Frequency	2–3Hz
Horizontal Natural Frequency	2–3Hz
Isolation Method	Air-floating isolation
Inflation Pressure	Max. 0.6 MPa
Max. Relative Displacement (nm)	0.22~0.70

Model	Table Size L×W×T (mm)	Height (mm)	Max. Load (kg)	Max. Dynamic Deflection Coefficient

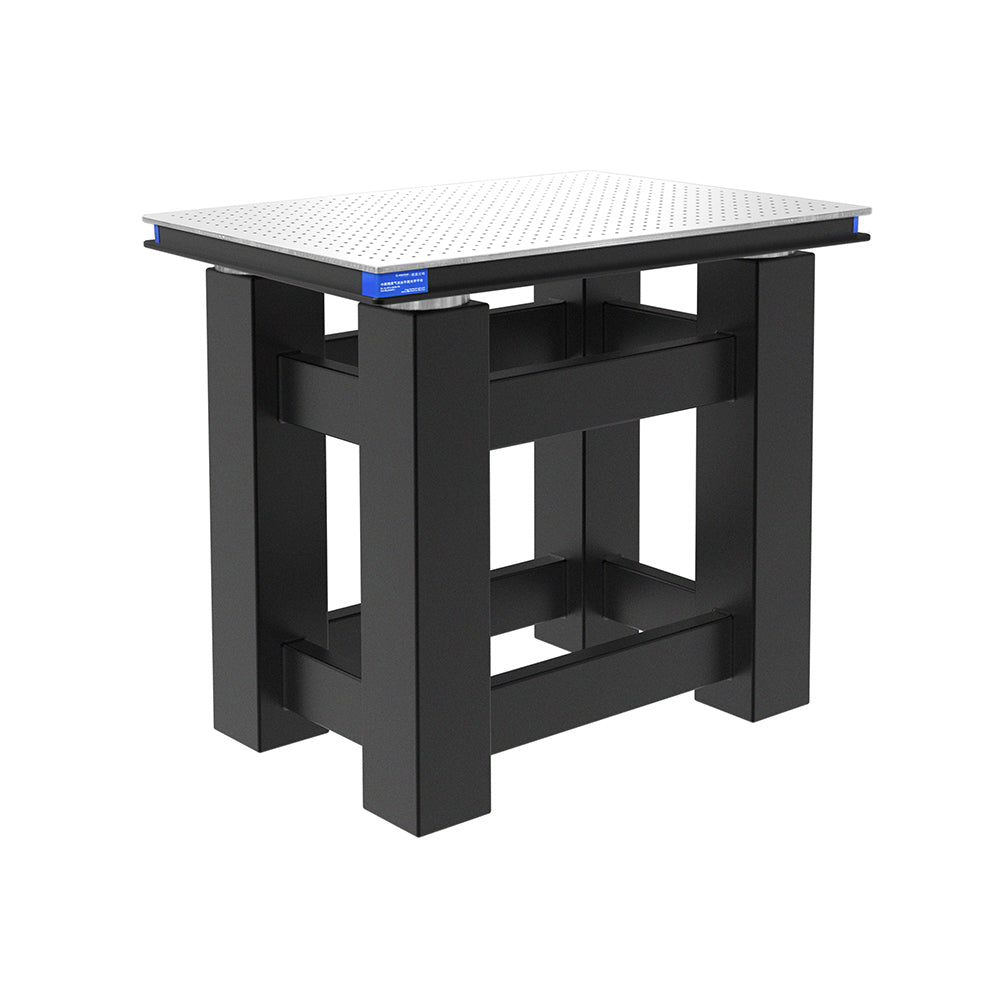

DL-GJQF2-0906-05	900×600×50	800	200	1.1×10⁻³ ~ 3.5×10⁻³

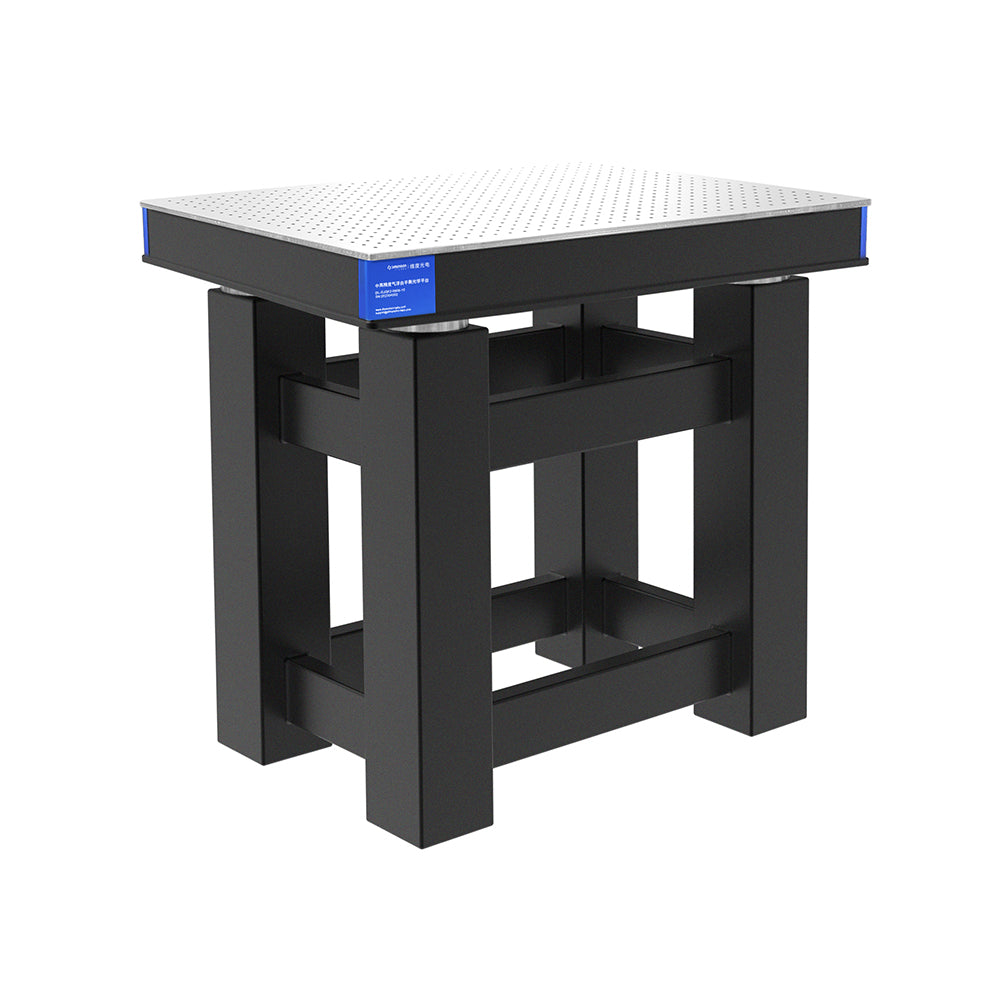

DL-GJQF2-0906-10	900×600×100	800	400	1.1×10-3~3.5×10-3
DL-GJQF2-1208-10	1200×800×100	800	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-1509-10	1500×900×100	800	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-1510-10	1500×1000×100	800	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-1511-10	1500×1100×100	800	800	1.1×10⁻³ ~ 3.5×10⁻³

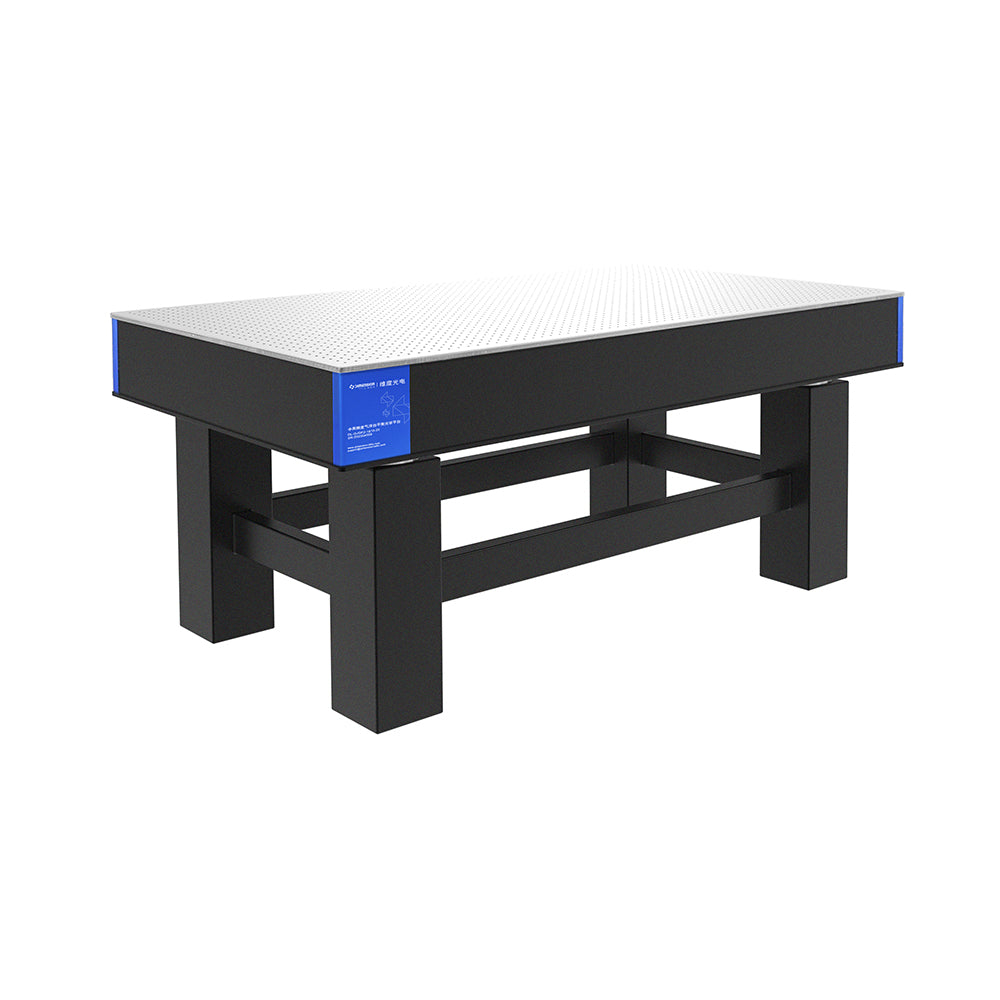

DL-GJQF2-1810-20	1800×1000×200	800	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-1812-20	1800×1200×200	800	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-2010-20	2000×1000×200	800	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-2012-20	2000×1200×200	800	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-2015-20	2000×1500×200	800	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-2412-20	2400×1200×200	800	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-2415-20	2400×1500×200	800	800	1.1×10⁻³ ~ 3.5×10⁻³

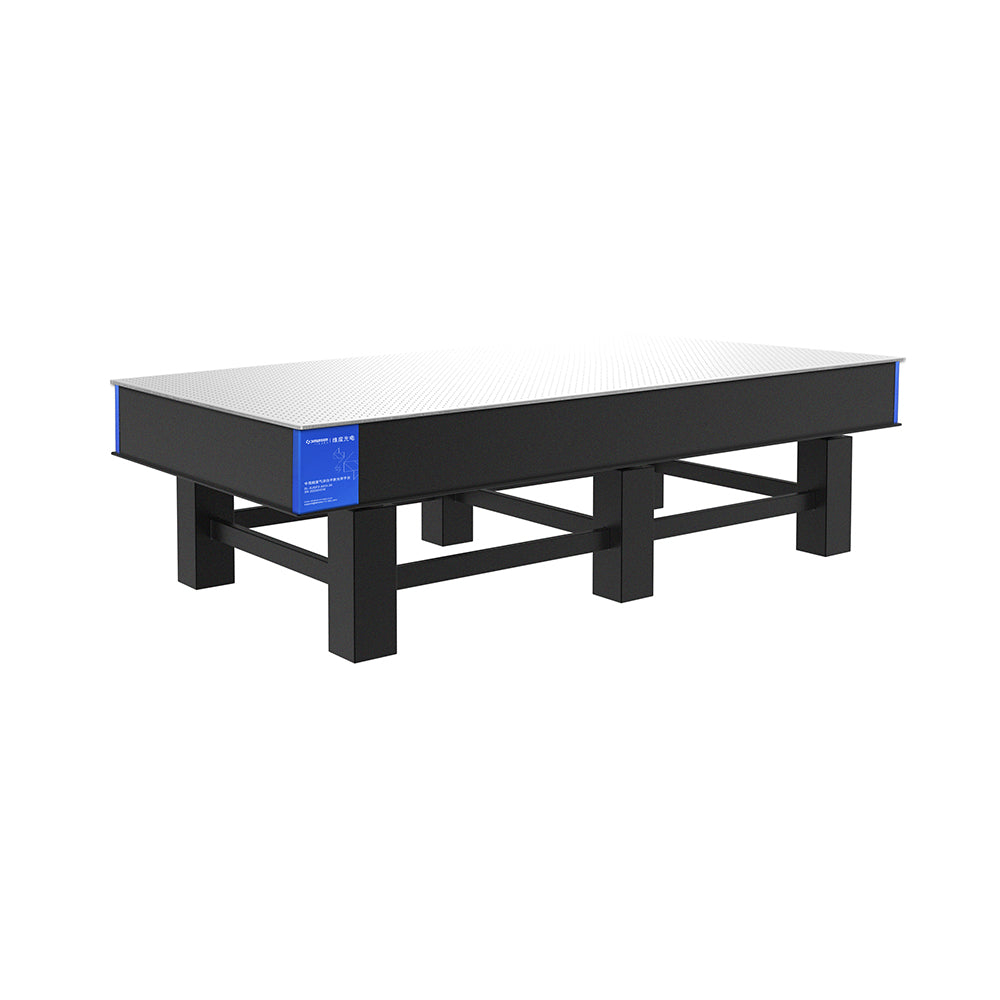

DL-GJQF2-3012-30	3000×1200×300	850	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-3013-30	3000×1300×300	850	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-3015-30	3000×1500×300	850	800	1.1×10⁻³ ~ 3.5×10⁻³

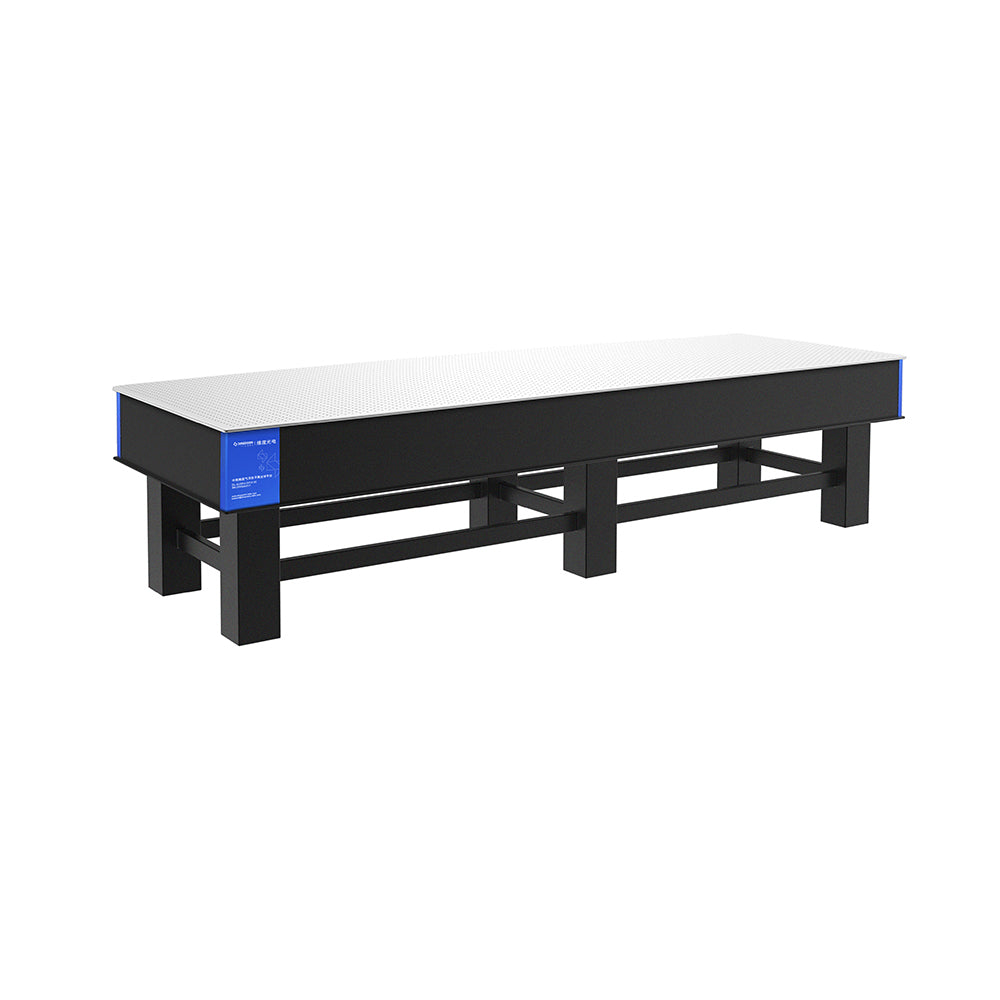

DL-GJQF2-3512-30	3500×1200×300	850	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-3513-30	3500×1300×300	850	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-3515-30	3500×1500×300	850	800	1.1×10⁻³ ~ 3.5×10⁻³
DL-GJQF2-4015-30	4000×1500×300	850	800	1.1×10⁻³ ~ 3.5×10⁻³

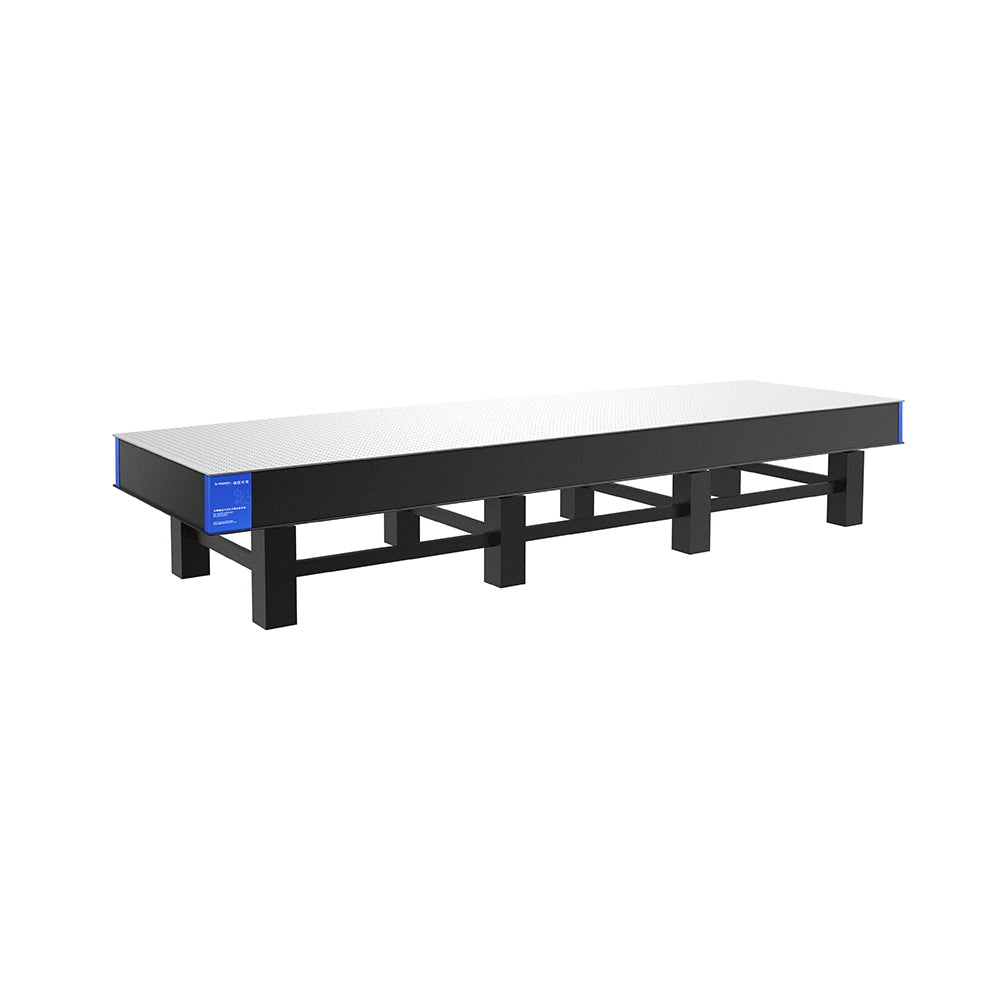

DL-GJQF2-5015-30	5000×1500×300	850	800	1.1×10⁻³ ~ 3.5×10⁻³

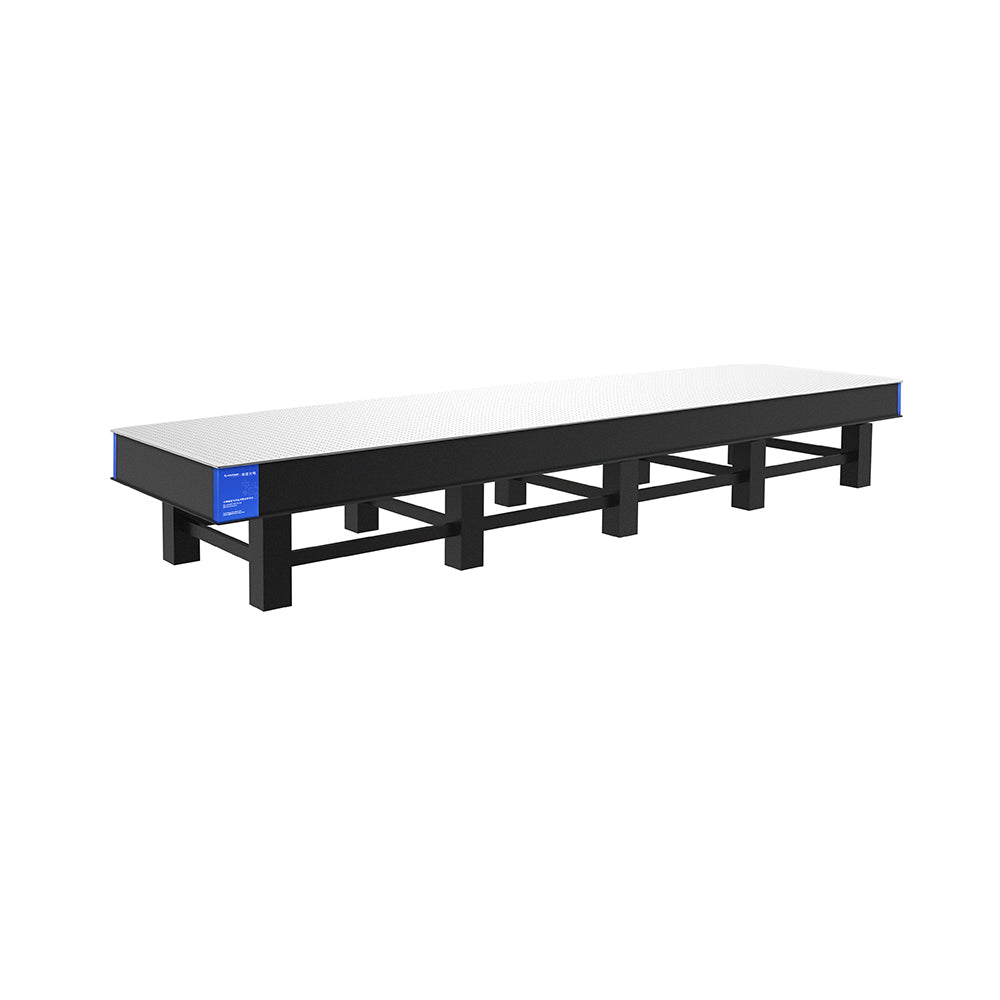

DL-GJQF2-6015-30	6000×1500×300	850	3000	1.1×10⁻³ ~ 3.5×10⁻³

Bonded honeycomb core (models ending in -A)

Specification	Value
Height (mm)	800
Isolation Method	Air-floating isolation
Flatness (mm/m²)	0.1
Vertical Natural Frequency	2–3Hz
Horizontal Natural Frequency	2–3Hz
Max. Dynamic Deflection Coefficient	1.1×10⁻³ ~ 3.5×10⁻³
Inflation Pressure	Max. 0.6 MPa
Max. Relative Displacement (nm)	0.22~0.70

Model	Table Size L×W×T (mm)	Table Weight (kg)	Max. Load (kg)
DL-GJQF2-0906-05-A	900×600×50	180	200
DL-GJQF2-0906-10-A	900×600×100	194	400
DL-GJQF2-1208-10-A	1200×800×100	199	800
DL-GJQF2-1509-10-A	1500×900×100	264	800
DL-GJQF2-1510-10-A	1500×1000×100	294	800
DL-GJQF2-1511-10-A	1500×1100×100	314	800
DL-GJQF2-1810-20-A	1800×1000×200	482	800
DL-GJQF2-1812-20-A	1800×1200×200	532	800
DL-GJQF2-2010-20-A	2000×1000×200	512	800
DL-GJQF2-2012-20-A	2000×1200×200	562	800
DL-GJQF2-2015-20-A	2000×1500×200	582	800
DL-GJQF2-2412-20-A	2400×1200×200	632	800
DL-GJQF2-2415-20-A	2400×1500×200	664	800
