Product Introduction

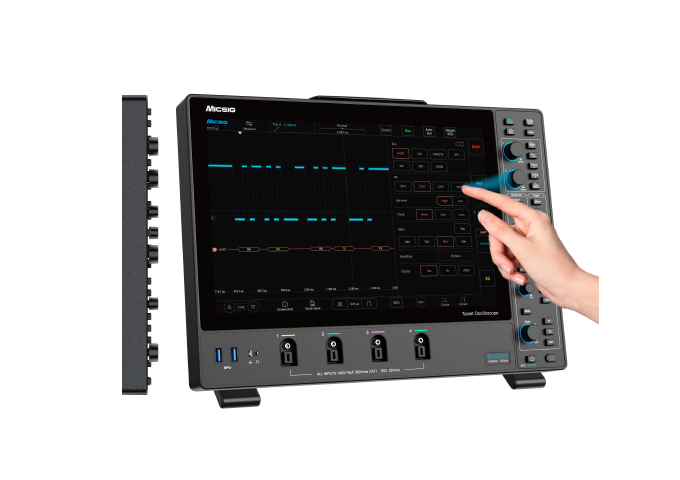

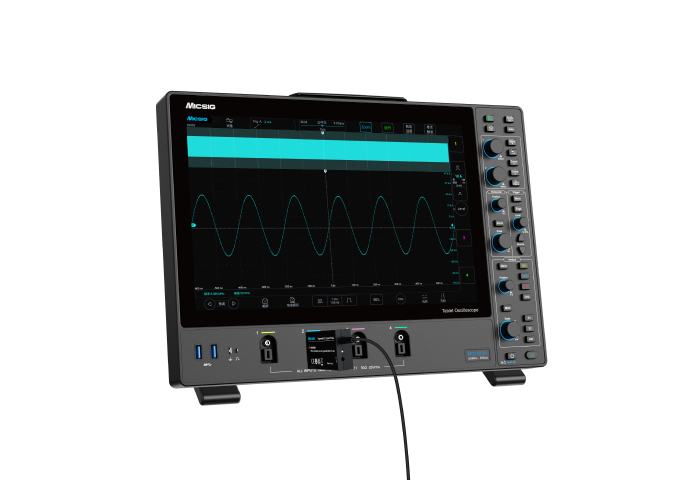

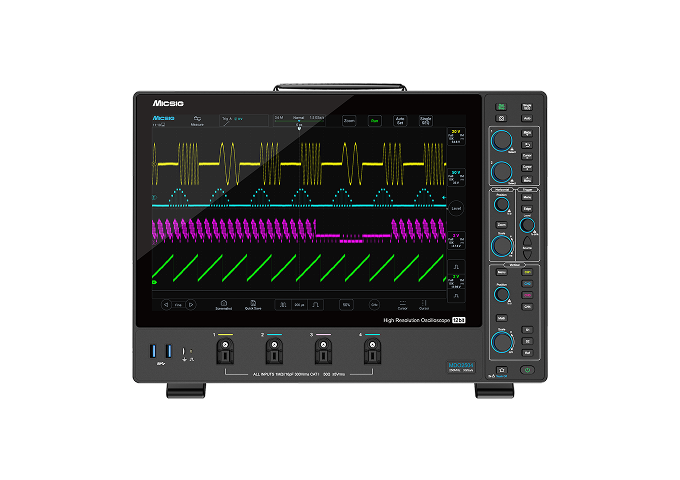

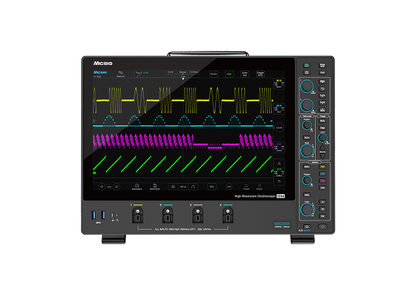

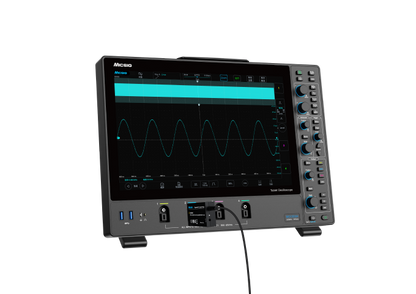

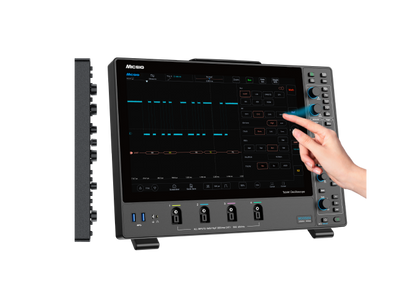

MDO series is Micsig's 5th-generation digital storage oscilloscope, with 500MHz bandwidth, 3GSa/s sampling rate, 4 analog channels, and 360Mpts memory depth; 3.58cm ultra-thin body support wall / arm mounting, significantly saves desktop space; A 14-inch integrated touch screen with resolution of 1920 x 1200 provides ultimate clear waveform display. Most Friendly UI Equipped with instrument-dedicated SigTestUI™ operating system, and accumulation of 10 years of UI design experience, the MDO series evolved to simplify all user interfaces, newer engineers can quickly learn to use in 5 minutes. Complete Connectivity Original Mic-OPI™ probe interface, automatically identifies passive probe attenuation, one-click to proceed auto-calibration; standard with BNC adapter, also has USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger out etc.
Specifications
| Model | MDO5004 | MDO3504 | MDO2504 |
| Bandwidth | 500MHz | 350MHz | 250MHz |
| Rise Time | ≤0.7ns | ≤1ns | ≤1.4ns |
| Analog Channels | 4 | 4 | 4 |
| Real-time Sampling Rate | 3GSa/s | 3GSa/s | 3GSa/s |
| Memory Depth | 360Mpts | 360Mpts | 360Mpts |
| Max. waveform Capture Rate | 230,000wfms/s | ||
| Vertical Resolution | 8bit | ||
| Noise | ＜90μVrms | ||
| Interfaces | USB 3.0 Host、USB Type-C、HDMI、Trigger out | ||
| Display | 14" full touch display, 1920 x 1200 resolution | ||
| Dimension | 400*280*35.8mm | ||
