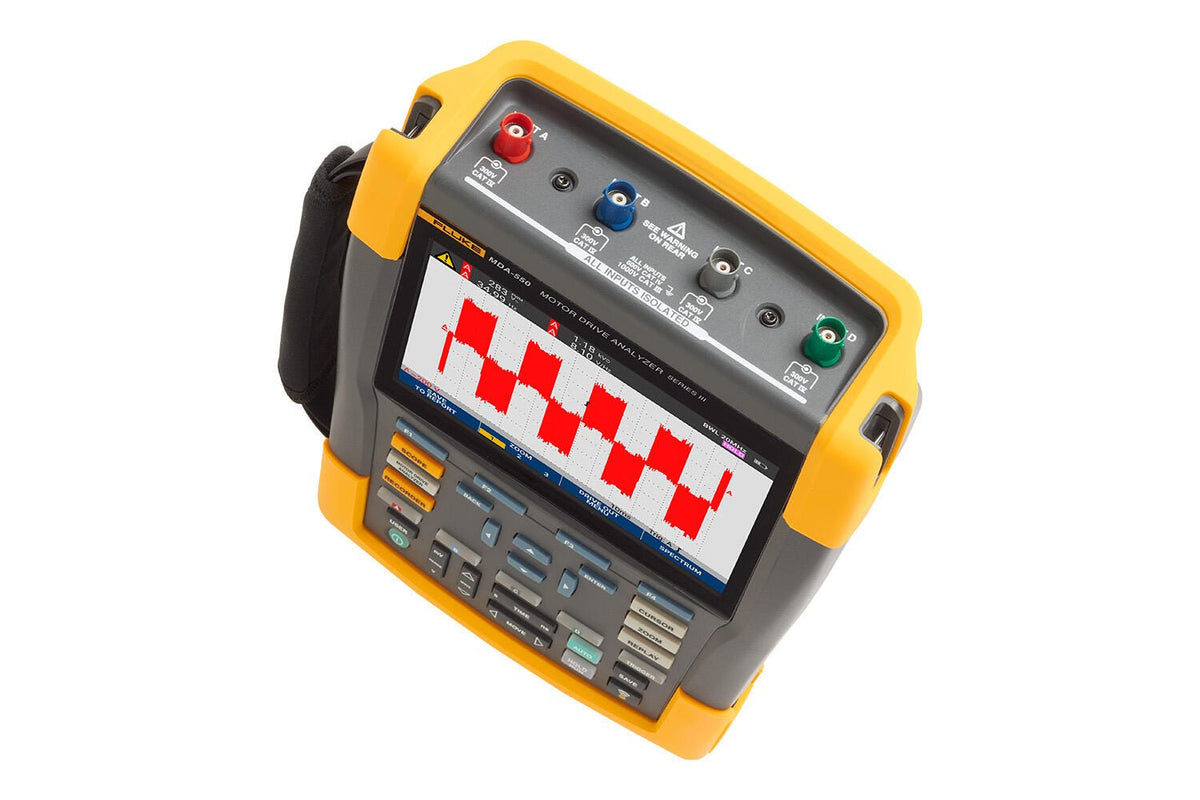

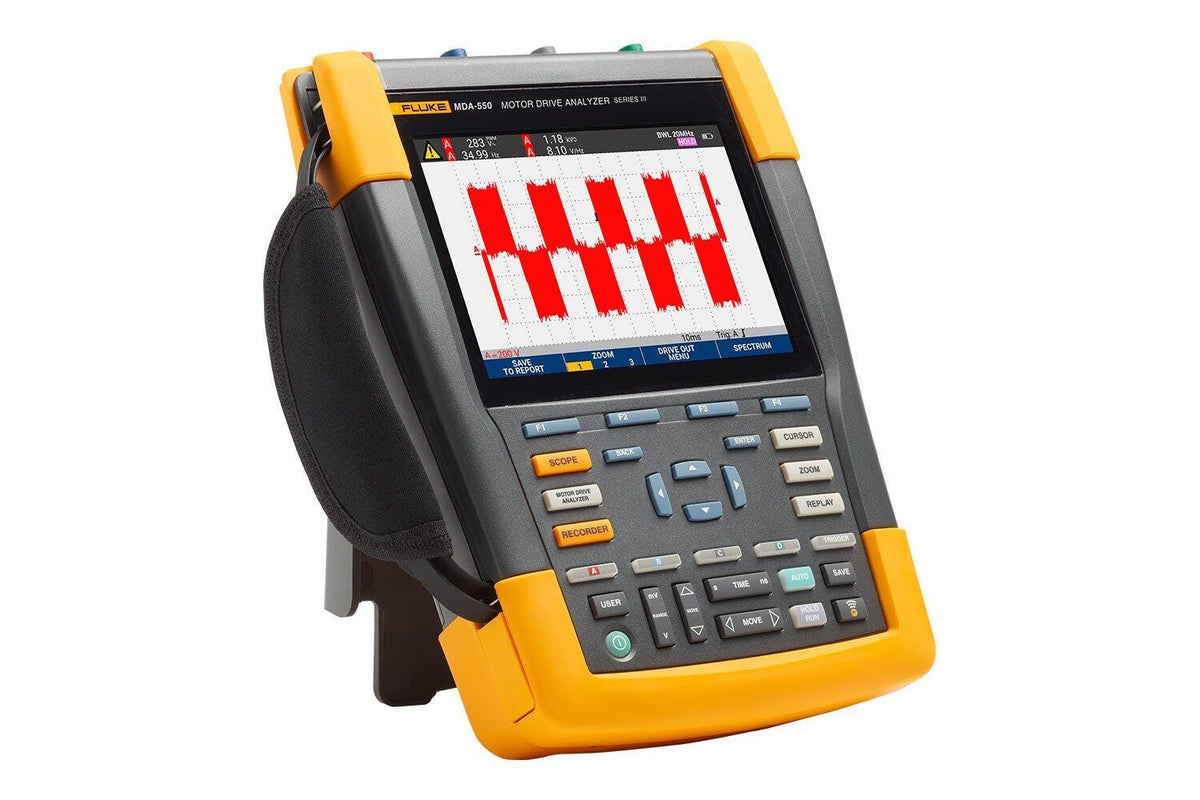

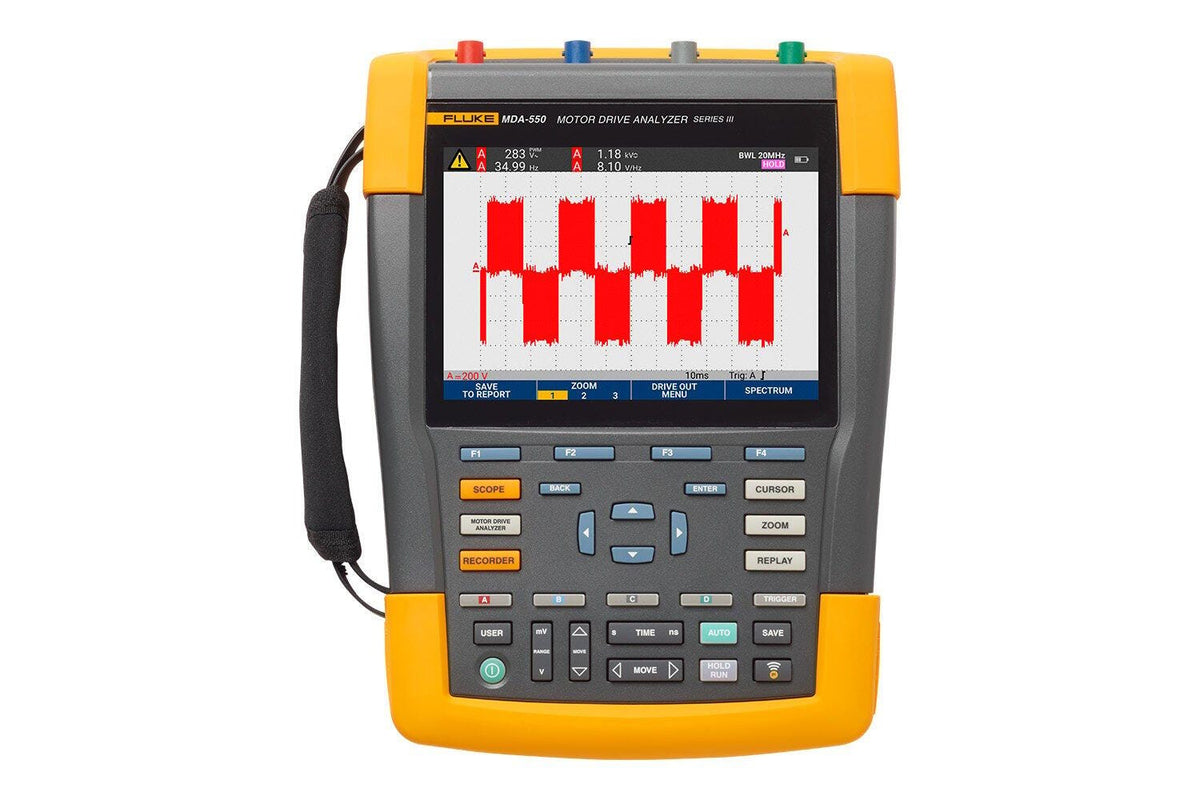

MDA-550 Series III Motor Drive Analyzer

Key Features

  • 4-channel, 500 MHz motor-drive analyzer
  • Guided tests from drive input to motor shaft
  • Harmonics, unbalance, DC bus and shaft voltage
  • CAT III 1000 V / CAT IV 600 V isolated inputs
  • Vertical resolution: 8-bit
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

Product Introduction

The MDA-550 Series III is a handheld motor-drive analyzer built on the 190 Series III ScopeMeter platform. Guided setups show where to connect voltage and current for the drive input, DC bus, drive output, motor input and shaft. It measures voltage, current, DC bus ripple, unbalance, harmonics and shaft voltage discharges, and it can generate as-found and as-left reports. It is also a 500 MHz, 4-channel isolated oscilloscope.

Models

Model Bandwidth Channels
MDA-550-III 500 MHz 4

Digitizer resolution is 8-bit, the same as the 190 Series III. Real-time sampling is up to 5 GS/s depending on how many channels are on.
