LI-350

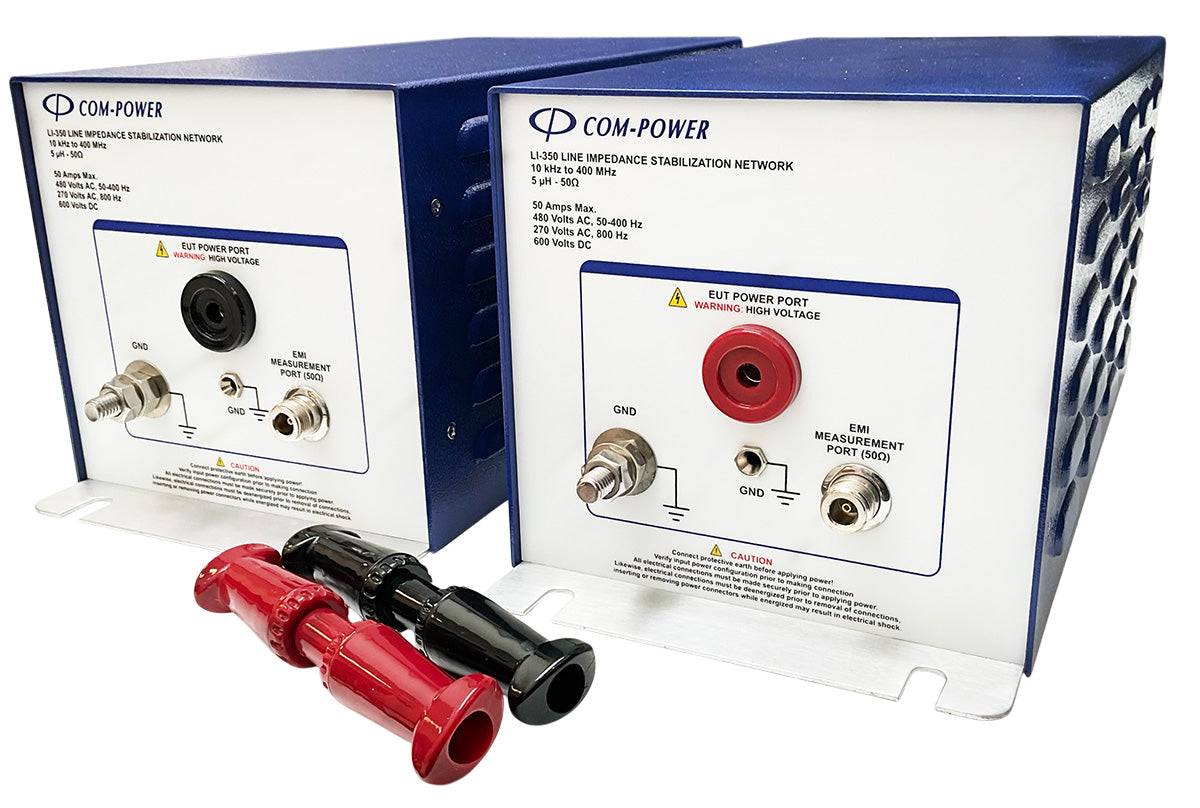

Com-Power LI-350 LISN

The LI-350 Line Impedance Stabilization Network (LISN) is designed for conducted emissions testing.

It is fully compliant with RTCA DO-160 and MIL-STD-461 standards.

This LISN is used for power line conducted emissions tests in commercial and military applications.

The frequency range is 10 kHz to 400 MHz, covering a wide spectrum for EMC measurements.

A 50Ω N-type female RF connector provides a stable and accurate measurement output.

The unit supports 50 amperes of current with 480 VAC (50–400 Hz), 270 VAC (800 Hz), and 600 VDC ratings.

It uses 5 µH air-core inductors to ensure consistent performance without saturation.

Superior Electric SUPERCON® shrouded sockets allow secure connections for mains and EUT wiring.

Each unit comes with individual calibration data and a three-year warranty for reliability.
