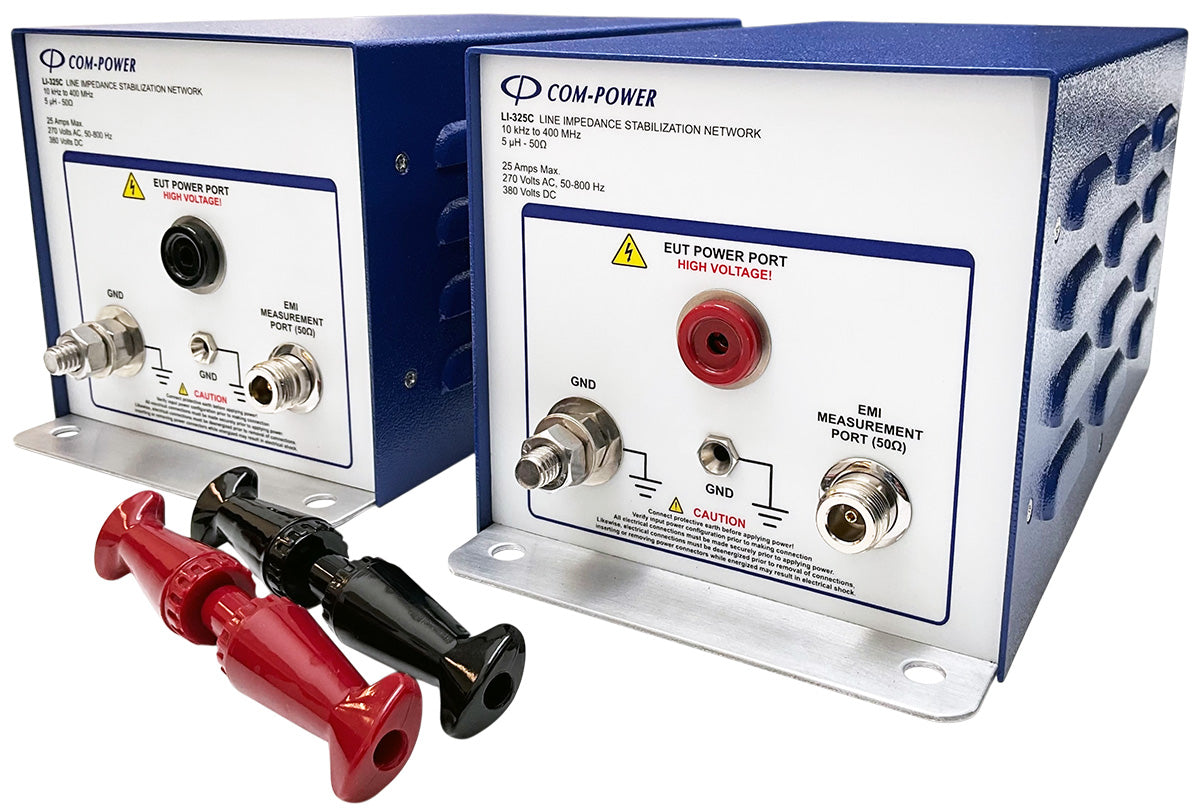

LI-325C

LI-325C Line Impedance Stabilization Network:

The LI-325C LISN operates over a frequency range of 10 kHz to 400 MHz.

It is fully compliant with RTCA DO-160, FAA, and MIL-STD 461 standards.

The unit provides stable impedance and isolates the EUT from power source effects.

It ensures accurate and repeatable power line conducted emissions testing.

Each LI-325C includes a pair of single-conductor networks for flexible system use.

A second pair can be added for compatibility with three-phase power systems.

Air-core inductors prevent saturation and permeability variations.

It uses Superior Electric SUPERCON® shrouded sockets for power connections.

Color-coded plugs for mains and EUT wiring are included for easy setup.

The unpainted mounting plate ensures proper grounding to earth.

Each unit is individually calibrated with supplied impedance and loss data.

Calibration includes a certificate for RTCA DO-160, FAA,  and MIL-STD 461 compliance.

The LISN is backed by a three-year warranty from Com-Power Corporation.
