LI-3100

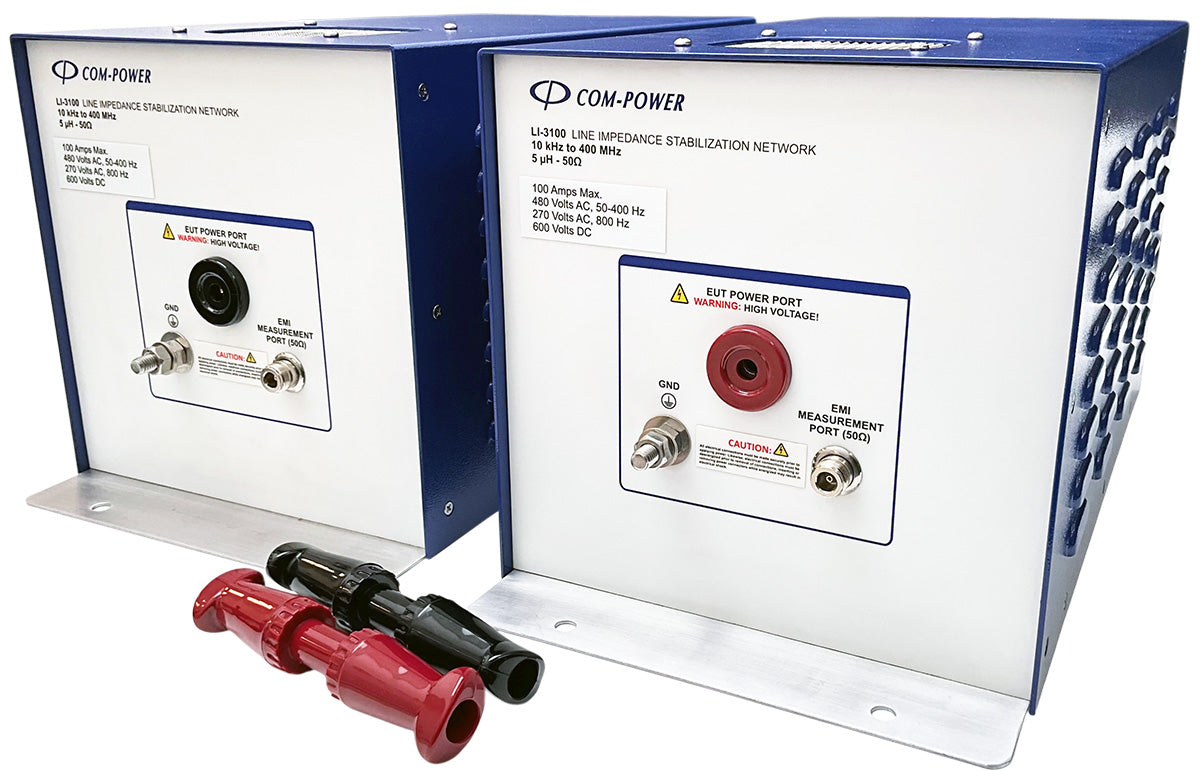

Com-Power LI-3100 Line Impedance Stabilization Network (LISN):

The LI-3100 operates from 10 kHz to 400 MHz and supports compliance testing for DO-160, FAA, MIL-STD 461F, CISPR 25, and CISPR 16-1-2 standards.

It is designed to handle up to 100 amps AC with forced air cooling for reliable performance.

The LISN uses air-core inductors to prevent saturation and ensure stable performance over time.

It provides defined and stable impedance while isolating the EUT from power source influences, ensuring accurate and repeatable measurements.

The system includes a pair of separately housed, single-conductor LISNs for use with single-phase, dual-phase, or DC power systems.

Two LI-3100 units can be used together to support three-phase power systems (Wye or Delta configurations).

Superior Electric SUPERCON® shrouded sockets are used for mains and EUT connections, with color-coded plugs provided for easy setup.

The LISN features an unpainted mounting plate for a secure earth ground connection, which is necessary due to high leakage current.

Each LI-3100 is individually calibrated to RTCA DO-160, FAA, MIL-STD 461F, CISPR 25, and CISPR 16-1-2, with impedance, phase, and insertion loss data provided.

The device is covered by a three-year standard warranty for long-term reliability and assurance.
