LI-125C

Com-Power LI-125C LISN

The LI-125C operates over a frequency range of 150 kHz to 30 MHz.

Fully compliant with CISPR 16-1-2 and ANSI C63.4 standards.

Uses air-core inductors to eliminate core saturation and maintain stability.

Includes individual calibration with NIST traceable certificate.

Comes with a standard three-year warranty.

Description & Application

The LI-125C provides a stable, defined impedance for power line conducted emissions testing.

It isolates the equipment under test (EUT) from the power source to ensure repeatable measurements.

Suitable for use in single-phase, dual-phase, and DC systems, with optional extension for 3-phase systems.

Construction

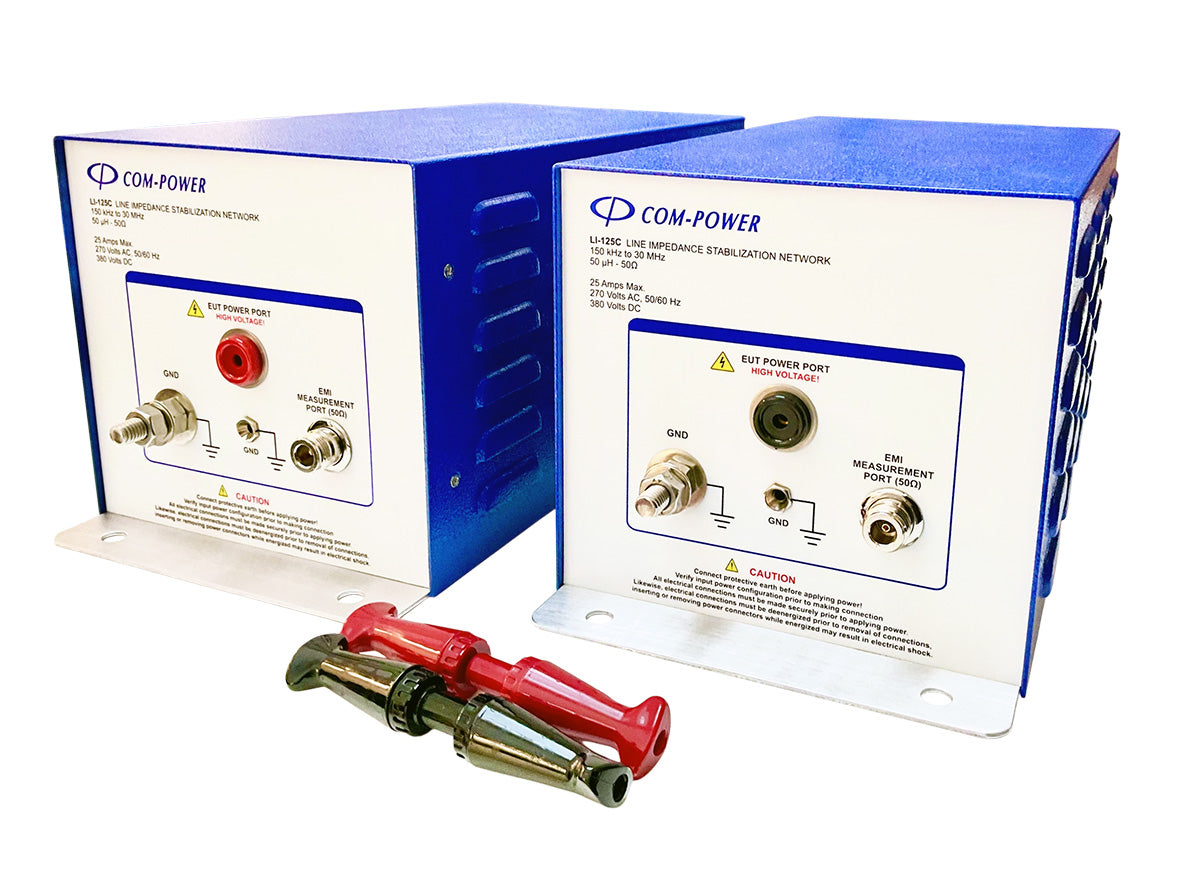

Includes a pair of separately housed, single-conductor networks.

Equipped with Superior Electric SUPERCON® shrouded sockets and matching plugs for safe, secure connections.

Built with an unpainted mounting plate for effective grounding, crucial for high-leakage current scenarios.

Transient Protection

A transient limiter is recommended for added protection and improved measurement quality, available from Com-Power.

Calibration

Each unit is individually calibrated per CISPR 16-1-2 and ANSI C63.4 standards.

Supplied with calibration certificate and detailed performance data (impedance, phase, isolation, insertion loss).
