IT7900HV 700V-1050V 90kVA-900kVA

  • Voltage up to 700 VL-N，1050 VL-N
  • 16Hz~100Hz
  • Used as regenerative grid simulator, four-quadrant source
  • CV/Current Limit/Power Limit
  • AC, AC+DC output capability
  • Three-phase output capability
  • Programmable Output Impedance，power impedance simulation
  • LVRT /Phase Jump/Frequency variation /Harmonic Injection
  • Regulatory testing include IEC61000-4-11/4-13/4-14 /4-28 *2
  • Touch screen; AC power meter and digital oscilloscope
  • Harmonic and interharmonic waveform synthesis*2
  • LIST/SWEEP/Surge&Sag*2 simulate grid disturbances
  • Voltage and current harmonics measurement, up to 50 times.*1
  • Front USB interface, support data and waveform import and export
  • Relay Ctrl output for electrical isolation between DUT and grid simulator.
  • Built-in USB/CAN/LAN/LXI compliant LAN interface/DigitalIO, optional GPIB /RS232
Model

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

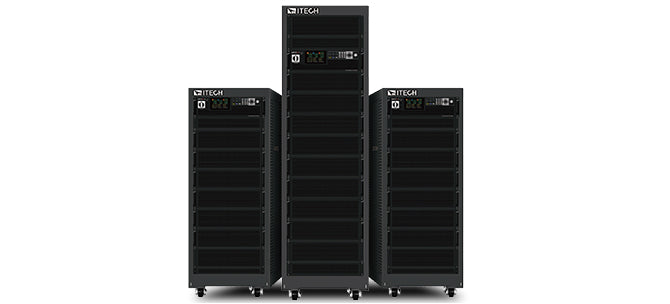

IT7900 Regenerative Grid Simulator High Voltage Series

IT7900 series represents a new generation of programmable, full four-quadrant grid simulators that can also be used as fourquadrant power amplifiers for testing all kinds of grid-connected products. Examples include PCS, energy storage systems,micro-grids, BOBC (V2X) and power related hardware loop simulation (PHiL). With the energy regenerative function, it provides 100% current absorption and feeds back to the grid through the device, saving power and cooling costs. IT7900 series is a high-voltage series with voltage up to 700 VL-N, even up to 1050 VL-N. The power can be easily extended to 900 kVA by parallel operation. Also, it has touch-screen, concise UI interface, and powerful arbitrary waveform editing function that can simulate a variety of grid disturbance waveforms. It is good choice for test and R&D labs.
