IT7900 2kVA-165kVA

  • Adopt advanced SiC technology
  • High power density/minimum rack space, 3U up to 15kVA,16Hz~150Hz
  • Regenerative grid simulator & full 4-Quadrant AC&DC power sources
  • Power Amplifier function for PHiL applications
  • Professional anti-islanding test mode, can set and simulate the RLC (resistive-inductive-capacitive), active and reactive power circuit for anti-islanding detection *3
  • Three working modes： CV/Current Limit/Power Limit
  • AC, DC, AC+DC or DC+AC output capability
  • Comprehensive working modes selectable: single-phase, three-phase, reversed phase and multi-channel *1
  • Programmable Output Impedance, allows simulation of Real-World Utility Grid Impedance
  • Compliance tests incl LVRT /Phase Jump/Frequency variation/Harmonic Injection
  • Supported regulatory testing include IEC61000-4-11/4-13/4-14/4-28
  • Current source mode
  • Wide voltage ranges: 350V L-N
  • Master-slave parallel with current sharing technology, up to 960kVA
  • Intuitive touch screen;Built-in single/3-phase AC power meter;Scope function
  • Fast response time and high accuracy 0.1%+0.2%FS
  • Waveforms Library : Sine wave, Square wave,Triangle wave,Clipped sine waves, trapezoidal wave, self-defined waves
  • Harmonics and Interharmonics waveform synthesizer
  • Power line disturbance simulation testing by LIST programming/SWEEP/Surge&Sag functions
  • The harmonic measurement function can measure 50th order harmonics of voltage and current *2
  • Output 0-360 ° start/stop phase angle can be set
  • Front panel USB port for data and waveform import and export
  • Provide rich trigger configuration, synchronously capture the voltage waveform of DUT, collect and simulate data
  • Relay CTRL function, to cut off the connection between instrument and DUT
  • 6-phase, 12-phase power output
  • Built-in USB/CAN/LAN/Digital IO interface, optional GPIB / Analog&RS232
  • Support CANopen *4、Modbus、LXI、SCPI communication
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

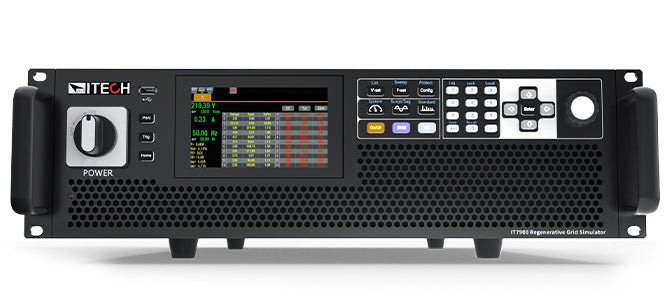

IT7900 Regenerative Grid Simulator

The IT7900 series is a programmable, four-quadrant grid simulator. It is also a four-quadrant power amplifier, which can be used to test various grid-connected equipment. For example, PCS, energy storage system, microgrid, BOBC (V2X), PHiL, etc. With advanced SiC technolgoy, a single unit of IT7900 can realize the anti-islanding protection test through islanding mode(RLC settable). Besides, the power density of IT7900 series is very high, 6kVA in 1U, 15kVA in 3U. After parallel connection, the power can be extended to 960kVA at most. Rich operating modes meet various test requirement of single-phase, three-phase, reverse-phase and multi-channel. In reverse mode, the voltage can be extended to 200% of the rated voltage. The strong arbitrary waveform editing function can simulate various power grid disturbance waveforms, making it an ideal choice for testing and R&D laboratories.
