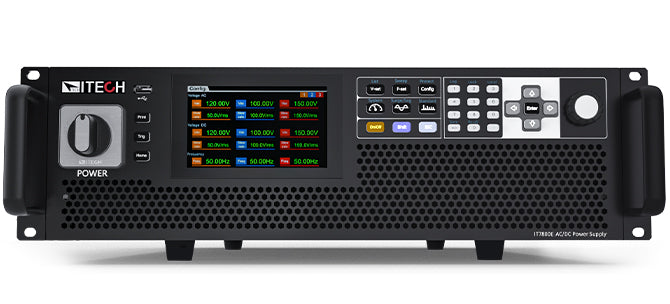

IT7800E 21kVA-213kVA

  • Adopt advanced SiC technology
  • High power density, 3U up to 21kVA
  • Master-slave parallel with current sharing technology, up to 10MVA, multiple units in parallel work as one
  • Voltage ranges : 350/700/1050 VL-N*3
  • Up to 50th harmonic simulation and analysis with built-in IEC61000-3-2/3-12 regulations*1
  • Output frequency: 16-2400Hz, programmable slew rate setting for changing voltage and frequency
  • Built-in single/3-phase AC power meter
  • 4 output modes: AC/DC/AC+DC/DC+AC
  • Choose single phase, three-phase, reverse phase output mode, to simulate 3-phase imbalance, 3-phase harmonics imbalance, 3-phase split phase test, reverse phase sequence tests for 3-phase models and etc.
  • Harmonics, inter-harmonics waveform synthesizer
  • Programmable output impedance
  • Intuitive touch screen interface
  • Simulate arbitrary waveform output, support csv. file import
  • High current crest factor, suitable for inrush current testing*2
  • Built-in various waveforms
  • List mode simulates the power supply reproduction function to realize the simulation function of instantaneous power interruption
  • Output 0-360 ° start/stop phase angle can be set
  • Surge/Sag function
  • Relay CTRL function, to cut off the connection between instrument and DUT
  • Built-in waveforms compliance with the IEC61000-4-11/ 4-13/4-14/4-28
  • Built-in USB/CAN/LAN/Digital IO interface, optional GPIB / Analog&RS232
  • Optional software can help complete the pre-compliance standards test of civil avionics/electrical ships interms of the multi-national safety regulations*1
  • Support CANopen*1、Modbus、LXI、SCPI communication
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

IT7800E High Power Programmable AC Power Supply

Adopting advanced SiC technology，ITECH IT7800E 3U high series of programmable AC/DC power supply, with power up to 21kVA, voltage ranges up to 350V L-N. Users are able to increase output power up to more than 10MVA by configuring master-slave parallel. With intuitive LCD touch panel interface, users can be quickly familiar with the unit operation. IT7800E series is built-in power meter and arbitrary waveform generator, which is able to simulate harmonics and other arbitrary waveform output. Users can choose single phase, three-phase and reverse phase output modes, with programmable output and complete measurements. ITECH IT7800E series is designed for new energy, power electronics, research institutes etc.
