IT6000B 80V-2250V 5kW-198kW

  • Adopts third-generation SiC technology, integrates source and sink function in one unit

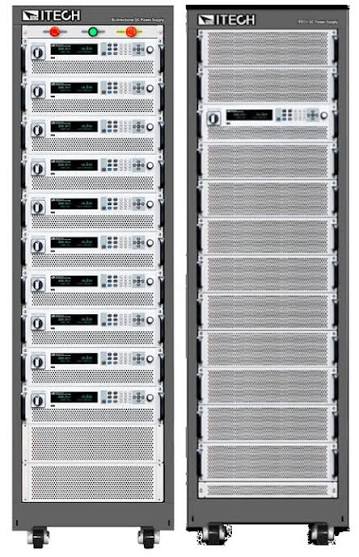

  • Stand-alone max. output power 144kW, expandable up to 2 MW by paralleling
  • Voltage output range: 0 to 2250V
  • Current output range:  0 to 2040A (single cabinet), 0 to 8000A (parallel connection between cabinets)
  • High power density up to 18kW in compact 3U rack space
  • Seamless current switch between souring and sinking
  • High regenerative efficiency up to 95%
  • Standard Built-in USB/CAN/LAN/digital IO interface, optional EtherCAT/GPIB/analog & RS232
  • Full protections: support OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection
  • Support CC/CV priority setting, different loop speed can be set
  • Partial pre-compliant with LV123, LV148, DIN40839, ISO-16750-2, SAEJ1113-11,LV124 and ISO21848 testing standards could be used as battery cycler and support various battery charging and discharging modes, such as CC/CV/CP
  • Built-in function generator, support arbitrary-waveform generating
  • Could be used as PV simulator, simulating the PV curves(with optional SAS1000 software)
  • Could be used as battery simulator(with optional BSS2000 Software)
  • Support multiple working modes, rising and falling time can be adjustable.
  • Support Datalog via USB disk and the shortest sample interval is 10us
  • Strong dynamic driving profile simulation function, up to 10,000,000 points
Model

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

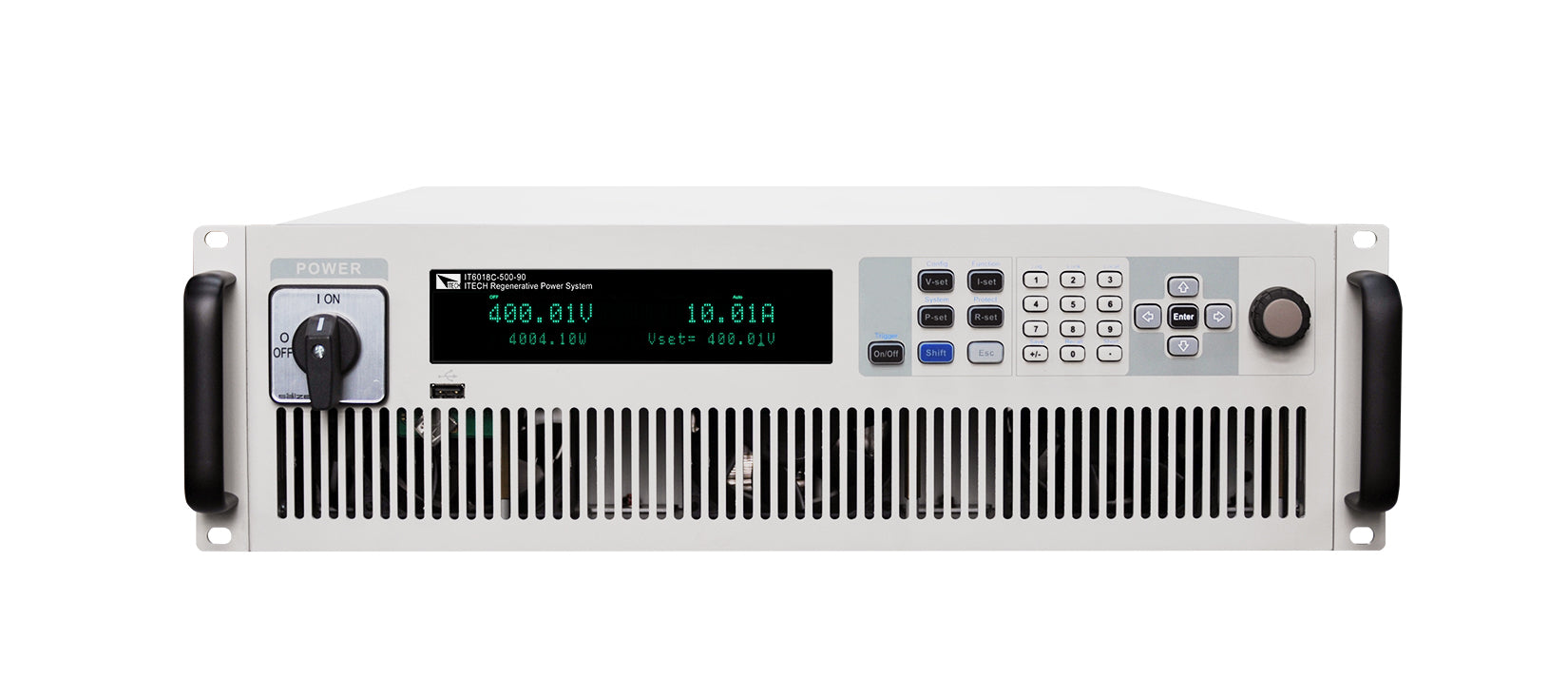

IT6000B Regenerative Power System

From the perspective of improving customer experience, ITECH launches a new incorporated product--IT6000B series. Adopting advanced SiC technology, IT6000B integrates bidirectional power supply and regenerative electronic load into one 3U unit. It can be used not only as a stand-alone powerful bidirectional power supply, as a source to provide power; but also as an independent regenerative electronic load, to absorb the consumed energy and feedback cleanly to the grid. IT6000B offers standard two-quadrants functionality. IT6000B provides 7 voltage specification, up to 2250V, supports master-slave parallel with even current distribution up to 2 MW. Built-in waveform generator supports generating arbitrary waveforms, and imports LIST files for waveforms via USB interface. IT6000B is a family of bi-directional, regenerative power system with excellent performance, extensively used in aspects of high power battery, automotive electronics, green energy, high speed testing etc.
