IT-M3900B 32-1500V 2kW-12kW

  • 2 in 1 unit - a bidirectional power supply and a regenerative load
  • One button switch between source and load on front panel
  • Compact design, 1U@6kW, 2U@12kW
  • Voltage range: 10~1500V
  • Current range: -720A~1020A
  • Power range: ±12kW
  • Bidirectional energy flow between the DUT and the grid, current seamless switching
  • Master/slave parallel connection with parallel technology - keep good performance while power extension*1
  • Efficient power regeneration -  reduce cost of electricity and cooling
  • CC/CV priority
  • Adjustable output impedance
  • Battery charge and discharge test
  • Battery simulation
  • Partial pre-compliant with LV123, LV148, DIN40839,ISO-16750-2, SAEJ1113-11,LV124 and ISO21848 automotive testing standards
  • Support solar panel I-V curves simulation*2
  • Slope of voltage, current and power is settable
  • Simulation of dynamic driving conditions, up to 10 million points
  • 8 operation modes under Source mode：CC/CV/CW/CR/CC+CV/CV+CR/CR+CC/CC+CV+CW+CR
  • Multiple protection: OVP / ±OCP / ±OPP / OTP /voltage transient drop protection/anti-islanding/power grid detection
  • Built-in USB/CAN/LAN/digital IO interfaces, Optional GPIB/Analog&RS232
Model

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

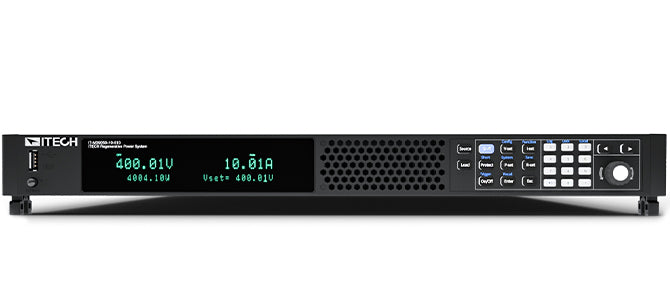

IT-M3900B Regenerative Power System

IT-M3900B regenerative power system feature two-in-one, which could use as a bidirectional DC power supply, also act as an independent regenerative load. One-button-switch between source and load mode, a unique and decisive feature for the user groups that works in different applications such as battery, PV energy storage, electric vehicle, Green energy and some ATE fields.
