IT-M3300 60V-600V 200W-800W

  • 1U half rack, high power density
  • Battery discharge test
  • High efficient power regeneration
  • 8 operating modes ：CC/CV/CP/CR/CV+CC/CC+CR/CV+CR/CV+CC+CP+CR
  • Supports synchronous control of up to 256 channels, implement synchronization or proportional tracking
  • Parallel connection, up to 16 units
  • High-speed measurement, keep 10 times / s update rate even connecting 16 stand-alone units
  • Adjustable current rise/fall time
  • List programming
  • Various protection such as OCP/UCP/OVP/UVP/OPP, over heat protection, grid fault protection and fault storage, foldback,Power-off protection, sense abnormal protection
  • Temperature measurement function, over temperature protection
  • Automatic detection of power grid state to realize reliable grid connection
  • Precharge function to prevent overshoot of DC loading current
  • Anti-reverse protection function by optional IT-E118
  • Five optional interfaces, supporting RS232, CAN, LAN, GPIB, USB_TMC, USB_VCP、RS485, analog and IO communication
Model

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

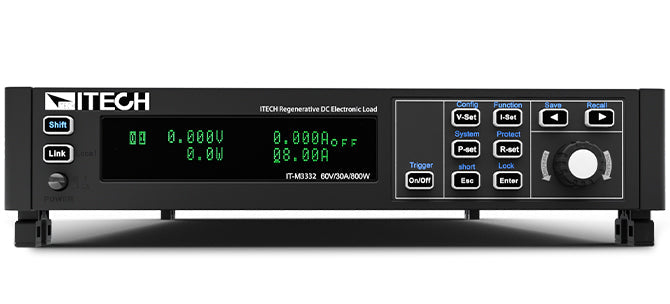

IT-M3300 Regenerative DC Electronic Load

IT-M3300 regenerative DC electronic load can not only simulate various load characteristics, but also can feed back electrical energy to the local grid instead of heat. With high power density design, it can provide up to 800W power absorption with tiny body of only 1U half-rack. Flexible modular architecture supporting synchronous control of up to 256 channels. At the same time, it has high-precision setting and measurement, and has made a number of safety designs for the test. It is suitable for test applications such as various types of battery discharge, multi-channel power supply, and semiconductor aging.
