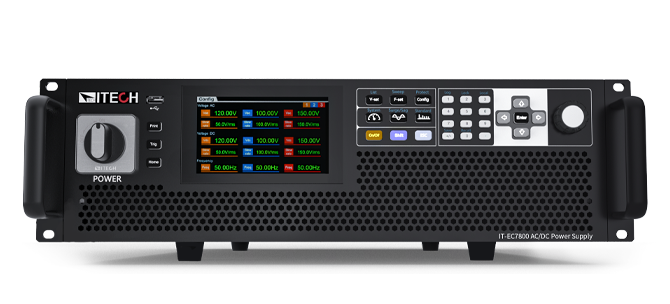

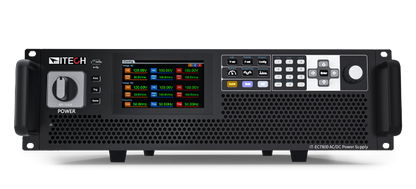

IT-EC7800 2kVA-15kVA

  • Adopts Silicon Carbide (SiC) technology

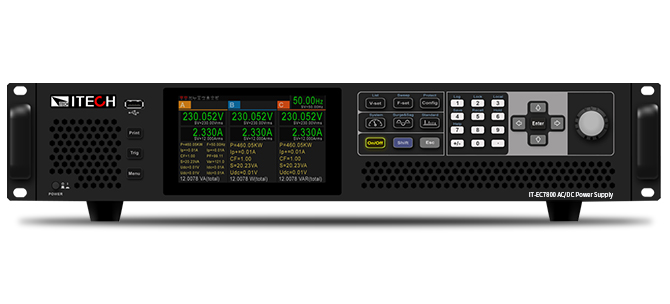

  • High power density design: up to 15kVA in 3U, up to 6kVA in 2U
  • Voltage rating: 350V L-N
  • Harmonic simulation and analysis up to the 50th order
  • Output frequency: 16–1000Hz; adjustable voltage and frequency slew rate
  • Built-in single-phase or three-phase AC power meter
  • Supports four output modes: AC, DC, AC+DC, DC+AC
  • Selectable single-phase or three-phase output modes
  • Programmable output impedance
  • Touchscreen interface with a clean UI design
  • Arbitrary waveform simulation, supports CSV waveform import
  • Built-in rich waveform database
  • List mode simulates power grid restoration and momentary power interruption
  • Configurable output start/stop phase angle from 0–360°
  • Built-in Surge & Sag simulation
  • Built-in Relay Ctrl output for DUT and source electrical isolation
  • Built-in USB/CAN/LAN/Digital I/O; optional GPIB/Analog/RS232 interfaces
  • Supports CANopen, Modbus, LXI, SCPI, and other communication protocols

Model

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

IT-EC7800 Series Programmable AC/DC Power Supply

The IT-EC7800 Series is a programmable AC/DC power supply that integrates advanced Silicon Carbide (SiC) technology and a high power density design, delivering up to 6kVA in a 2U chassis and up to 15kVA in a 3U chassis, combining compact size with powerful performance.
This series includes a built-in high-precision power meter and arbitrary waveform generator, supporting harmonic simulation, complex waveform output, and comprehensive data analysis functions, along with an intuitive LCD touchscreen for easy operation.It is widely used in R\&D validation, production testing, and quality control across industries such as new energy, power electronics, and scientific research institutions.
