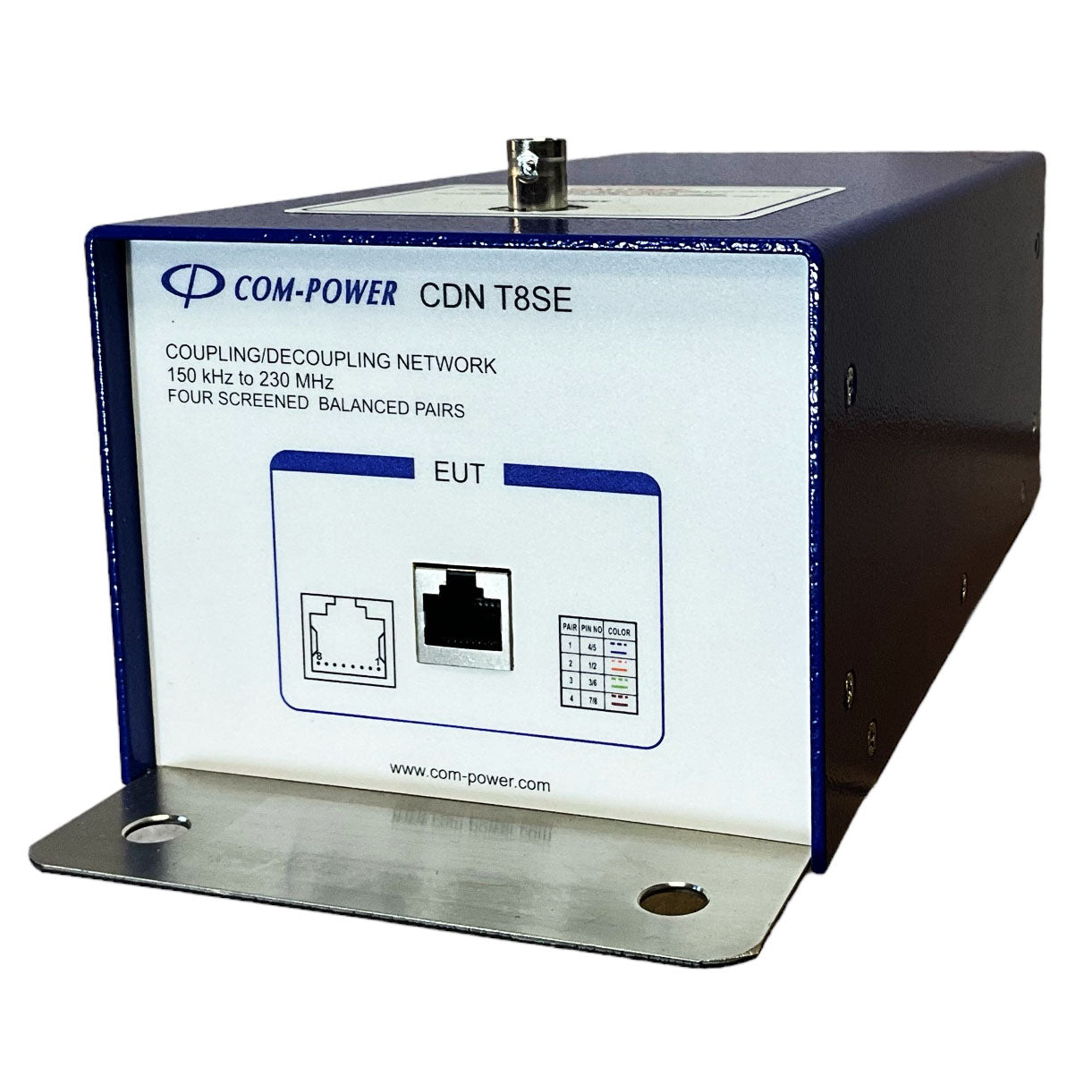

ISN/CDN-T8SE
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
Impedance Stabilization Network (ISN) for shielded telecom ports — measures common-mode conducted emissions on screened (shielded) lines with up to four balanced pairs per EN 55022/32 (CISPR 22/32) and CISPR 16-1-2. ISN role applied 150 kHz–30 MHz.
150 Ω common-mode termination per CISPR 22/32 — standard-defined impedance on the screened pairs so disturbance voltage at the measurement port is stable and repeatable.
Shielded RJ-45 receptacles on EUT and AE ports — direct mate with shielded Cat-5e/Cat-6/Cat-6A patch cords; no adapters required.
Shielded Ethernet ports on ITE — PoE switches, NICs, routers, network appliances, and servers with shielded RJ-45 jacks.
Industrial Ethernet / Profinet / EtherCAT shielded drops — field switches, drives, and I/O modules using shielded balanced pairs.
50 Ω BNC measurement port on top of housing — direct mate to spectrum analyzer / EMI receiver for the disturbance voltage scan.
Also usable as a CDN for IEC/EN 61000-4-6 conducted immunity — secondary capability over the full 150 kHz–230 MHz band when needed.
Individually calibrated; compact and light at 2 lbs (0.9 kg) — outer surface designed for grounding to the reference plane; pairs with the SPA-900TG series spectrum analyzer / EMI receiver.
