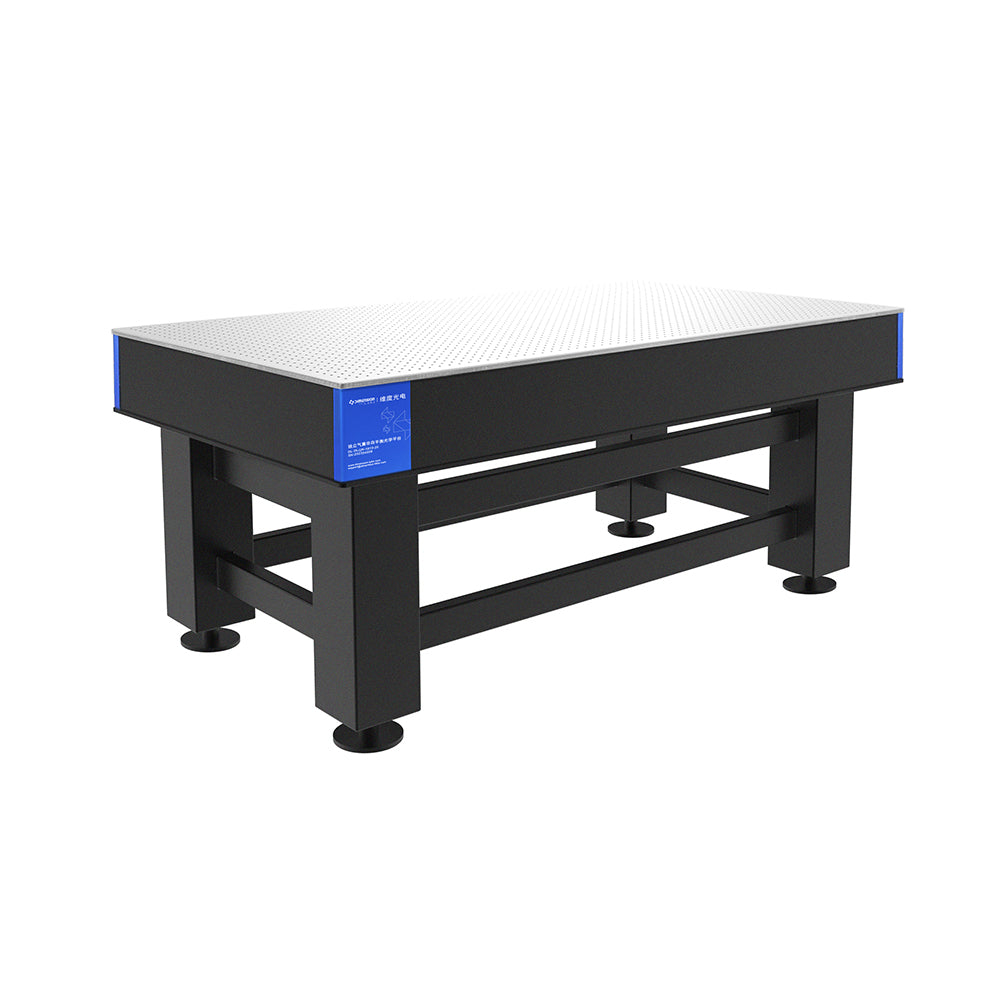

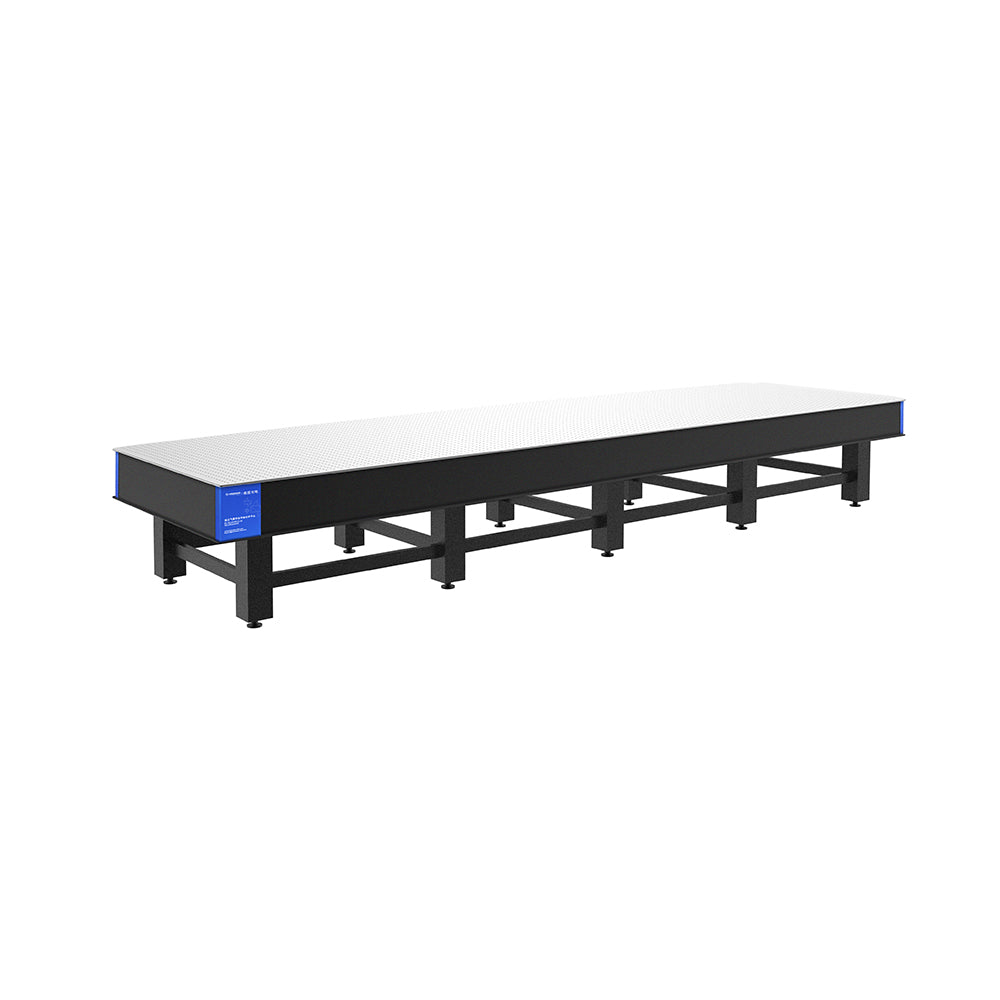

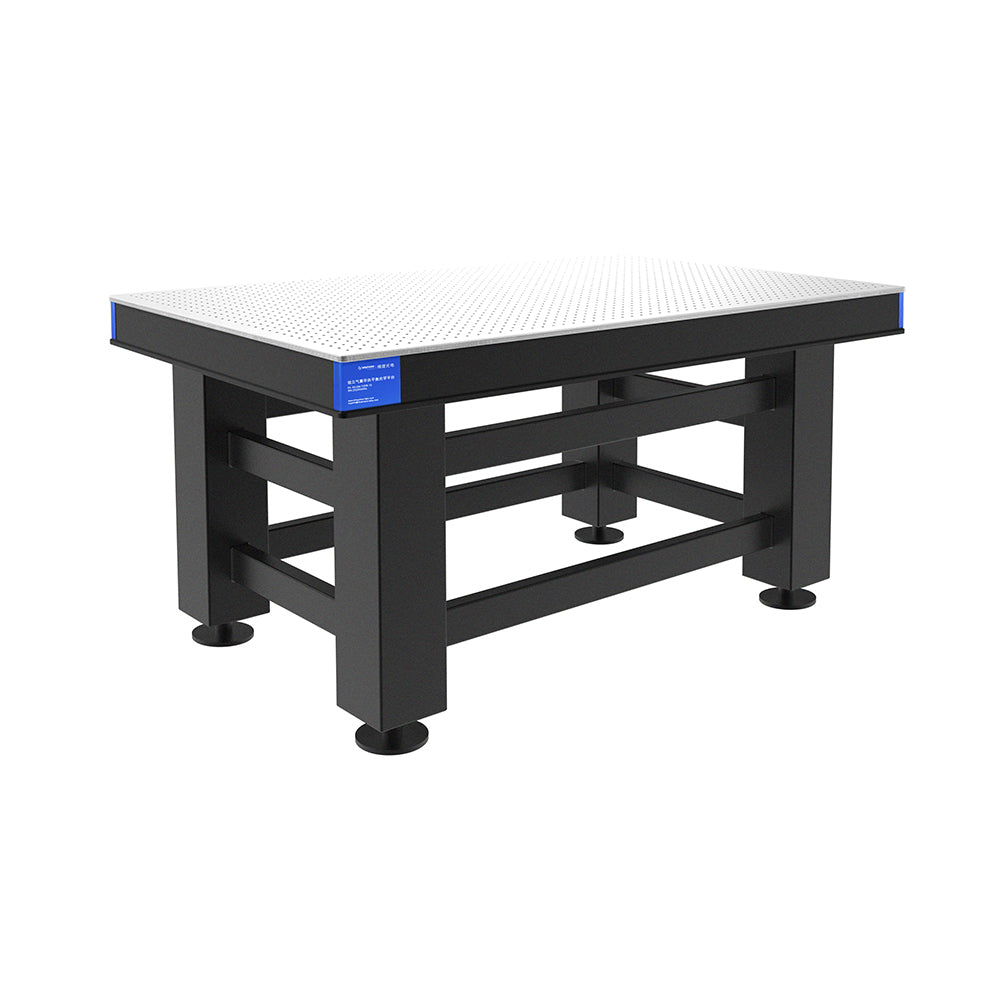

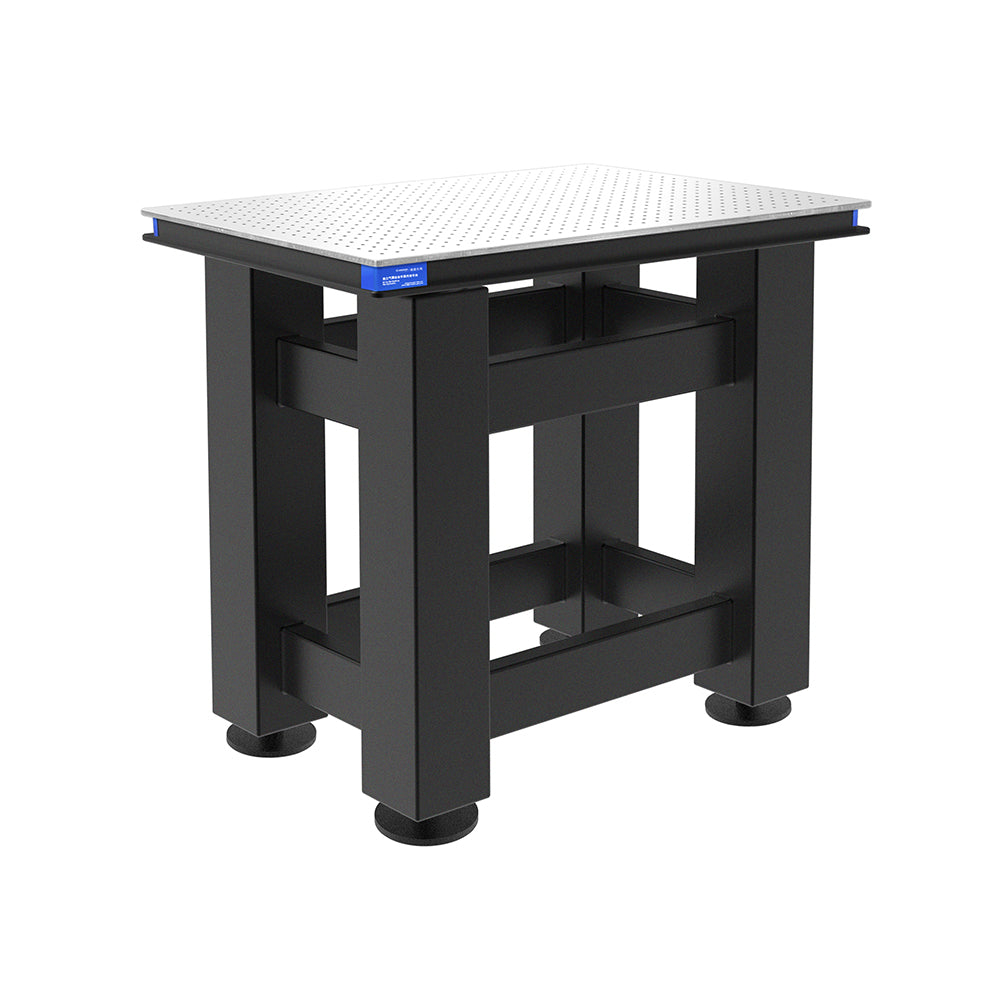

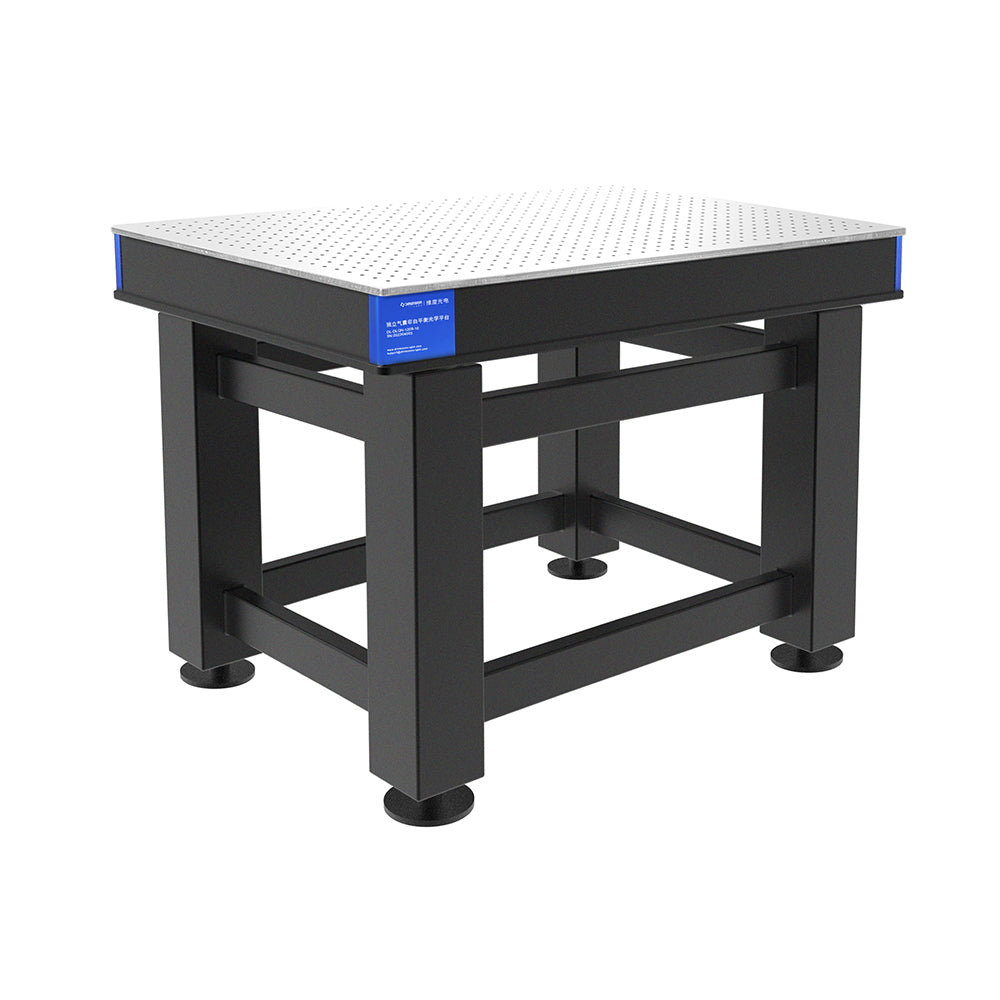

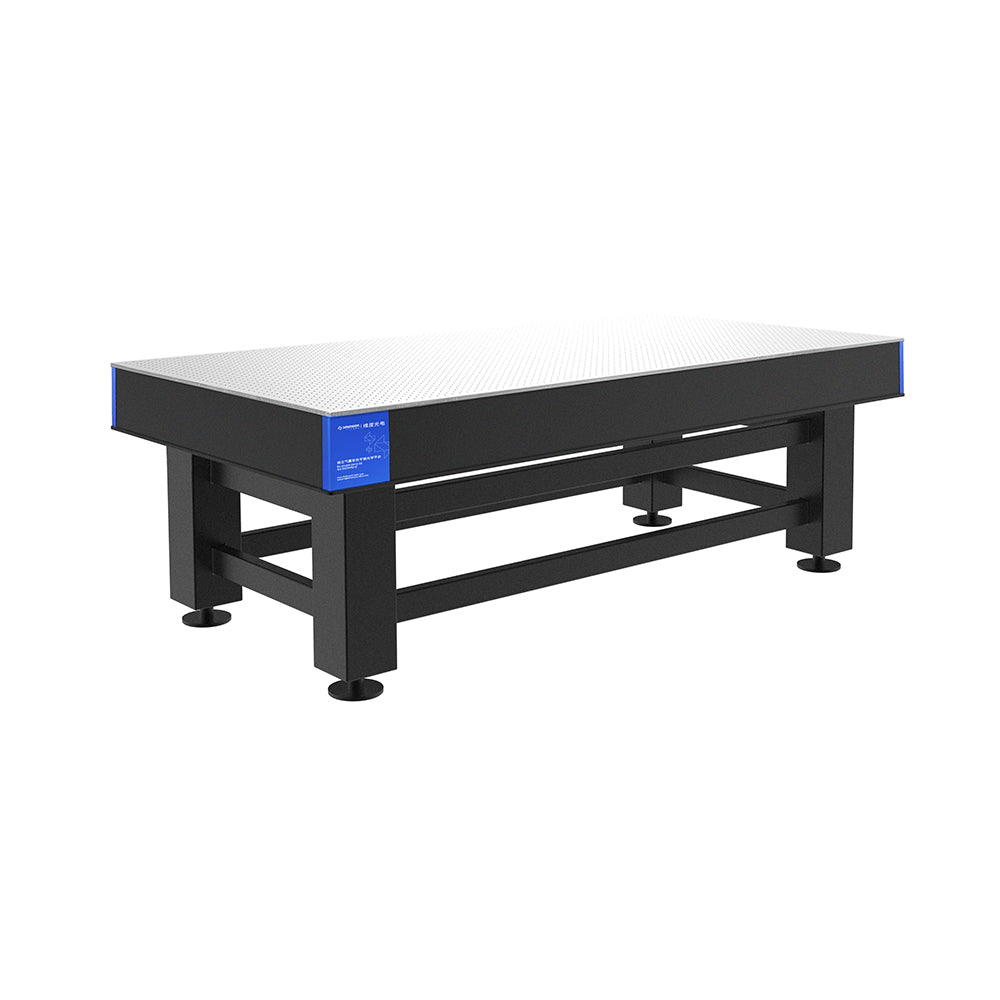

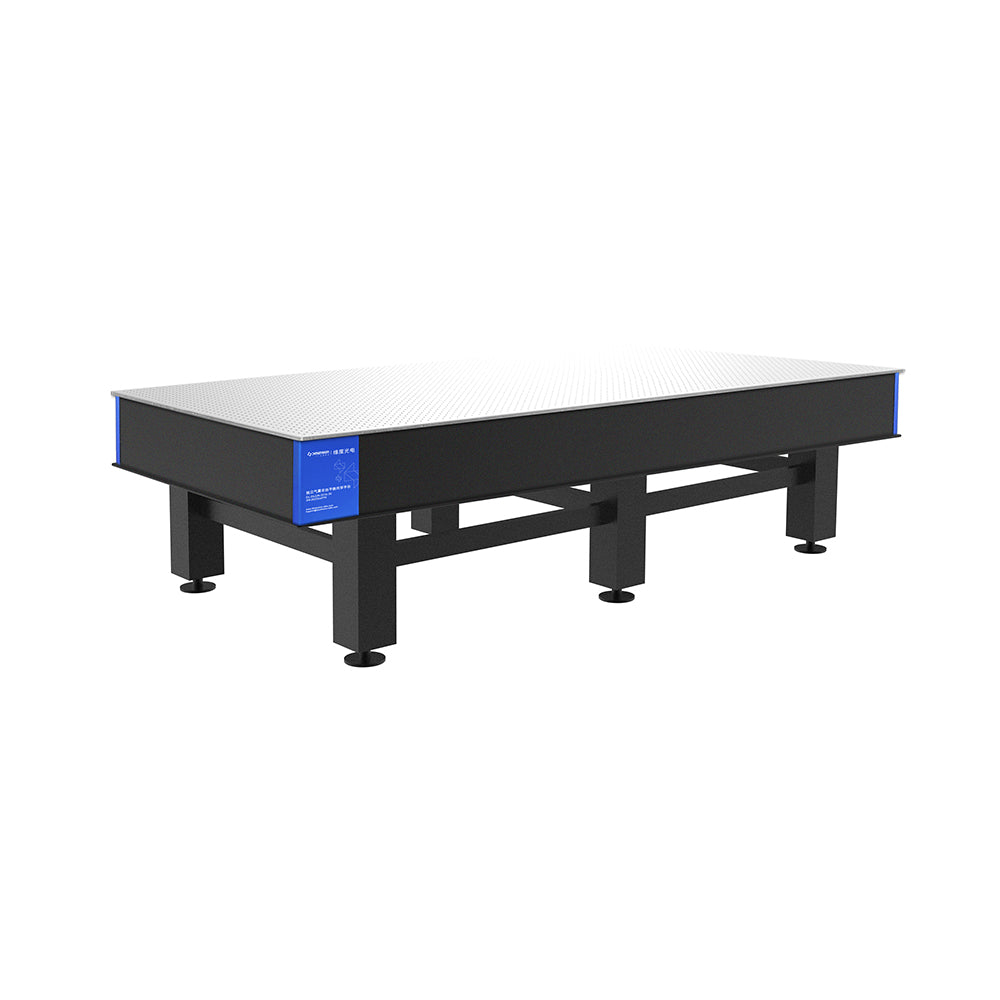

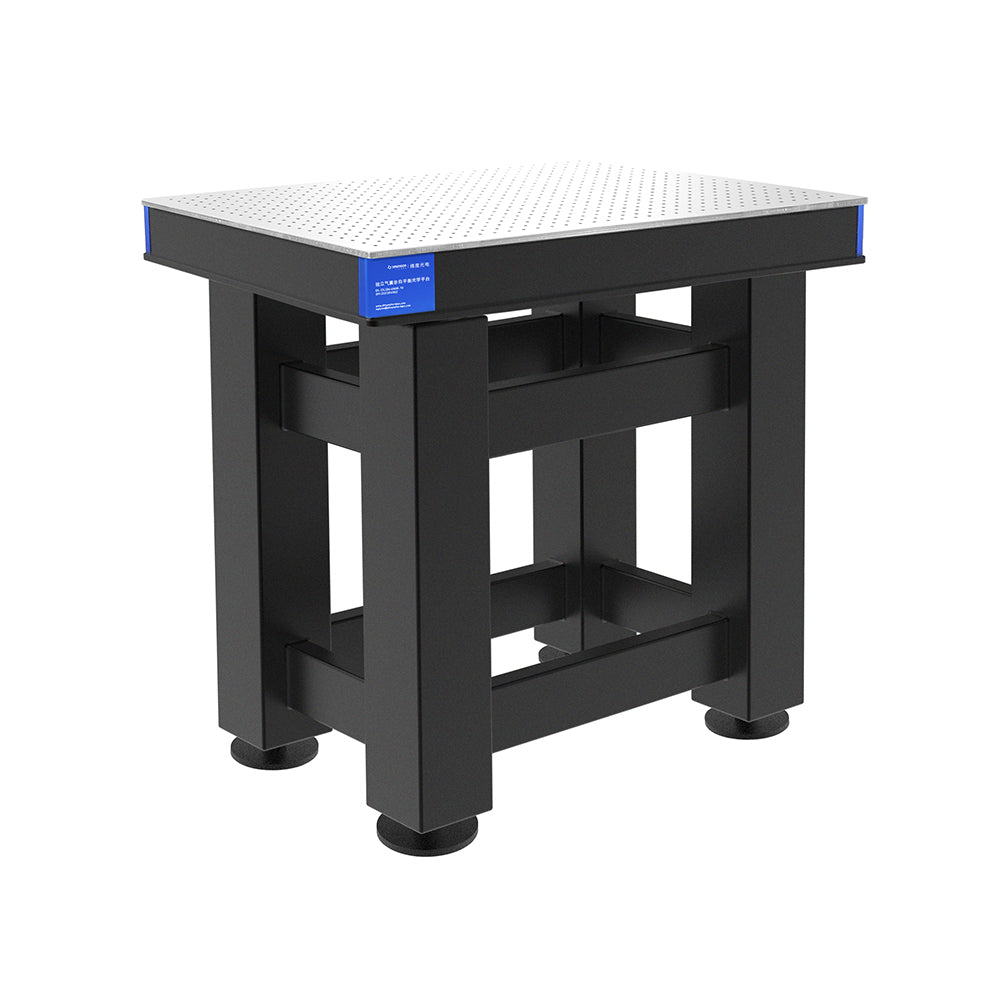

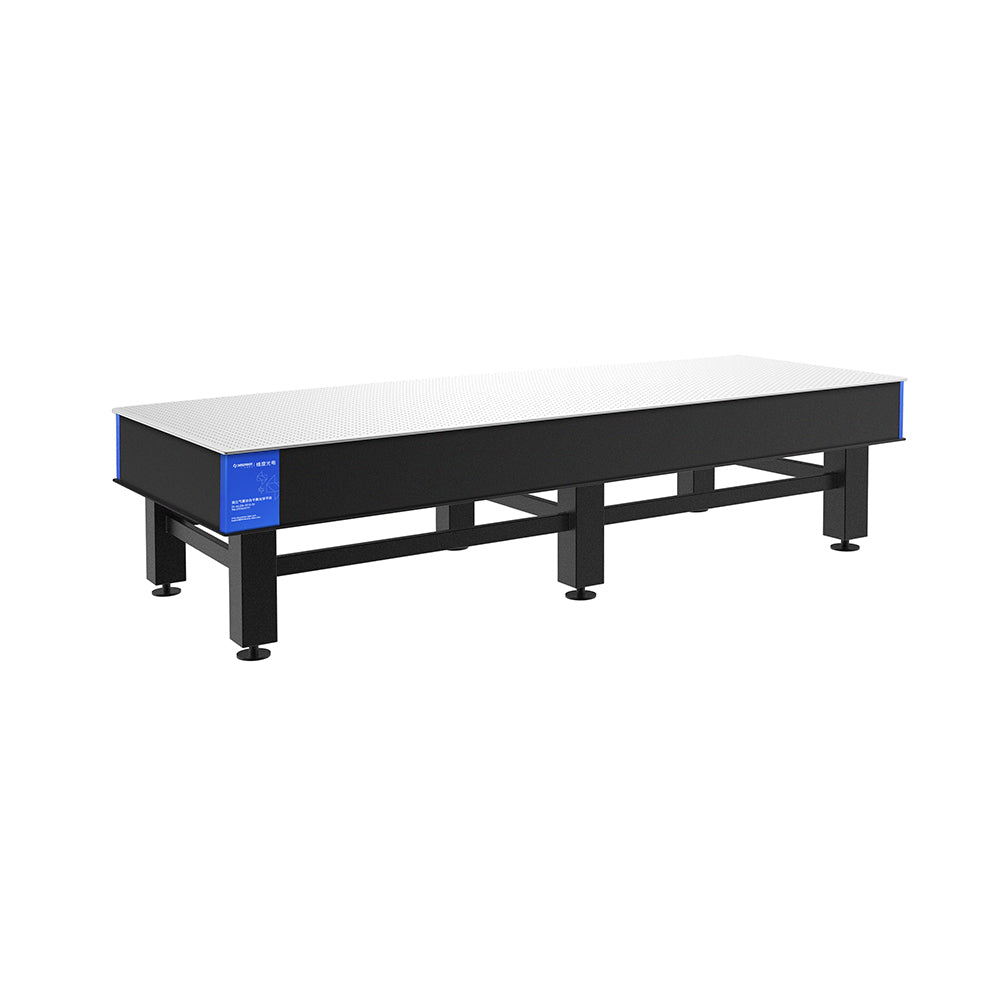

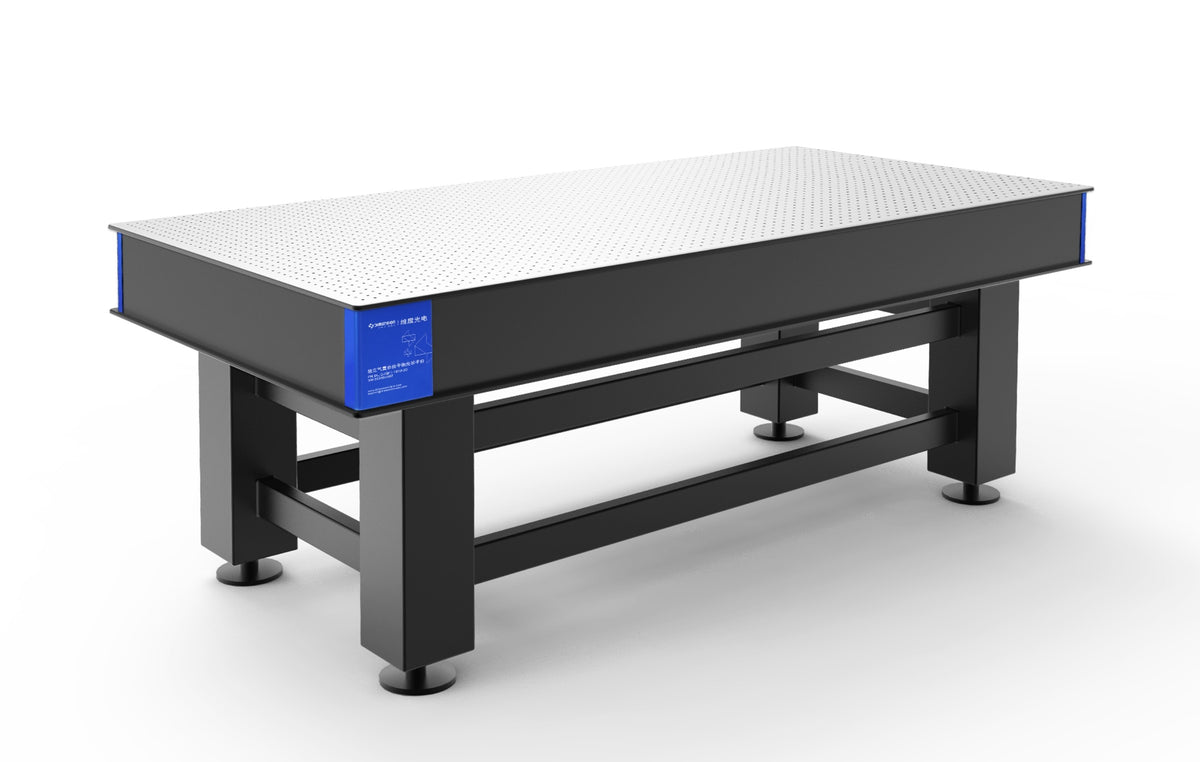

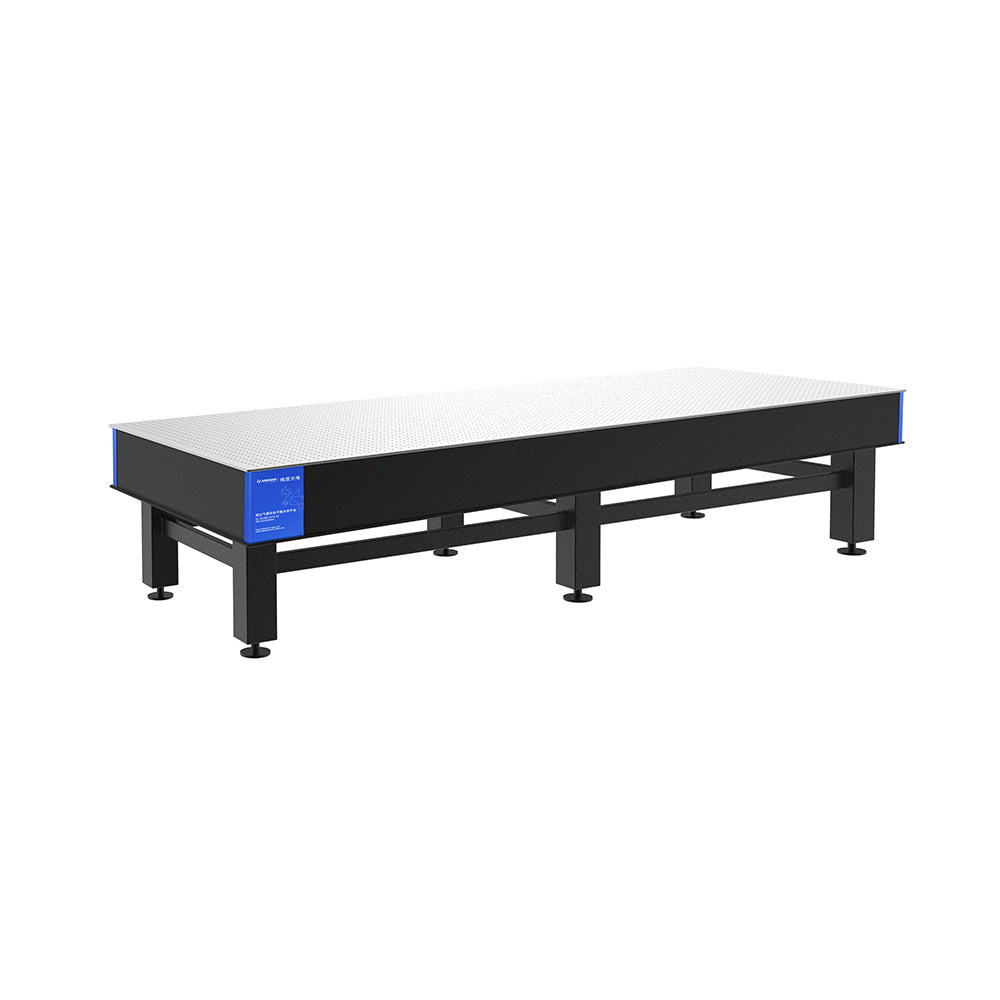

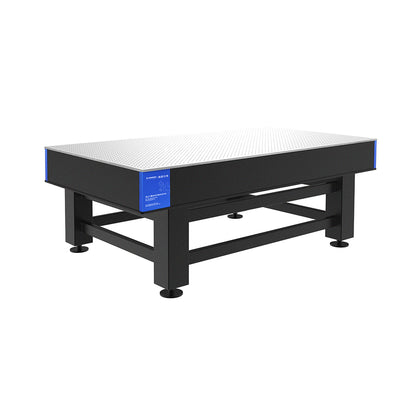

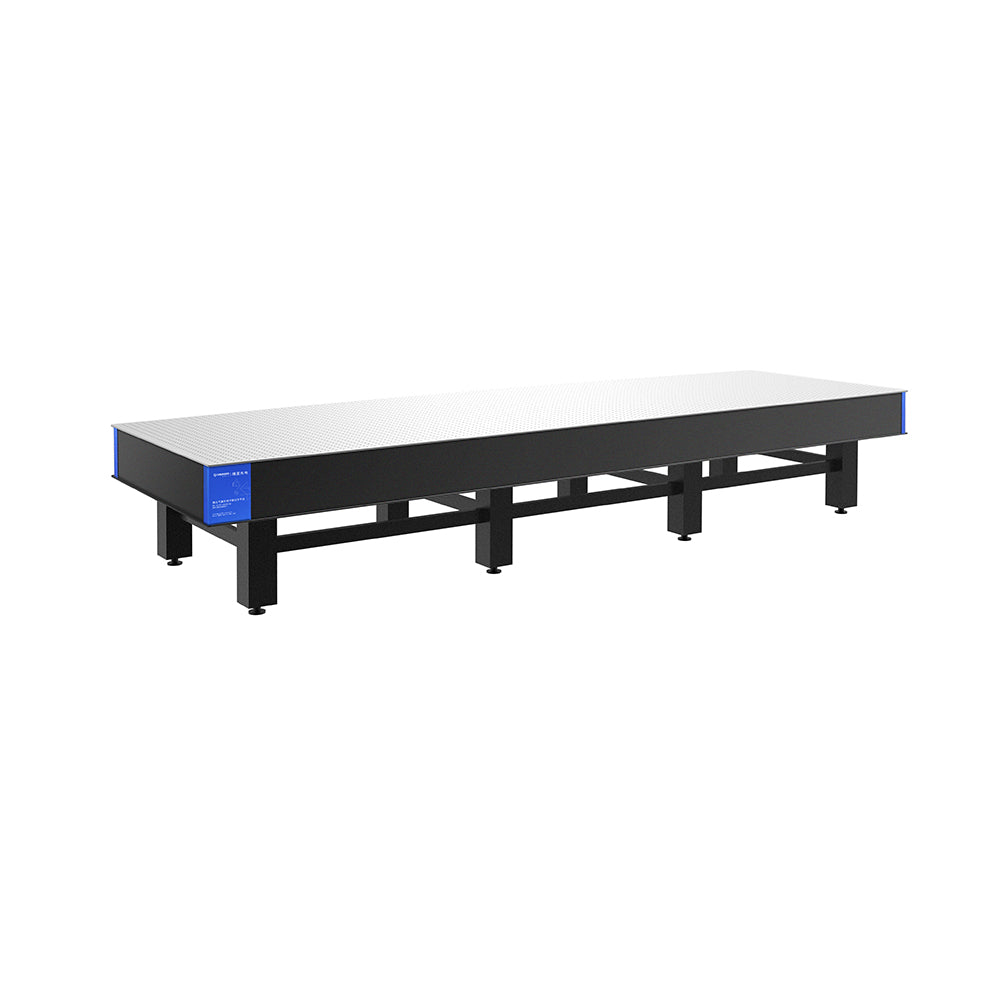

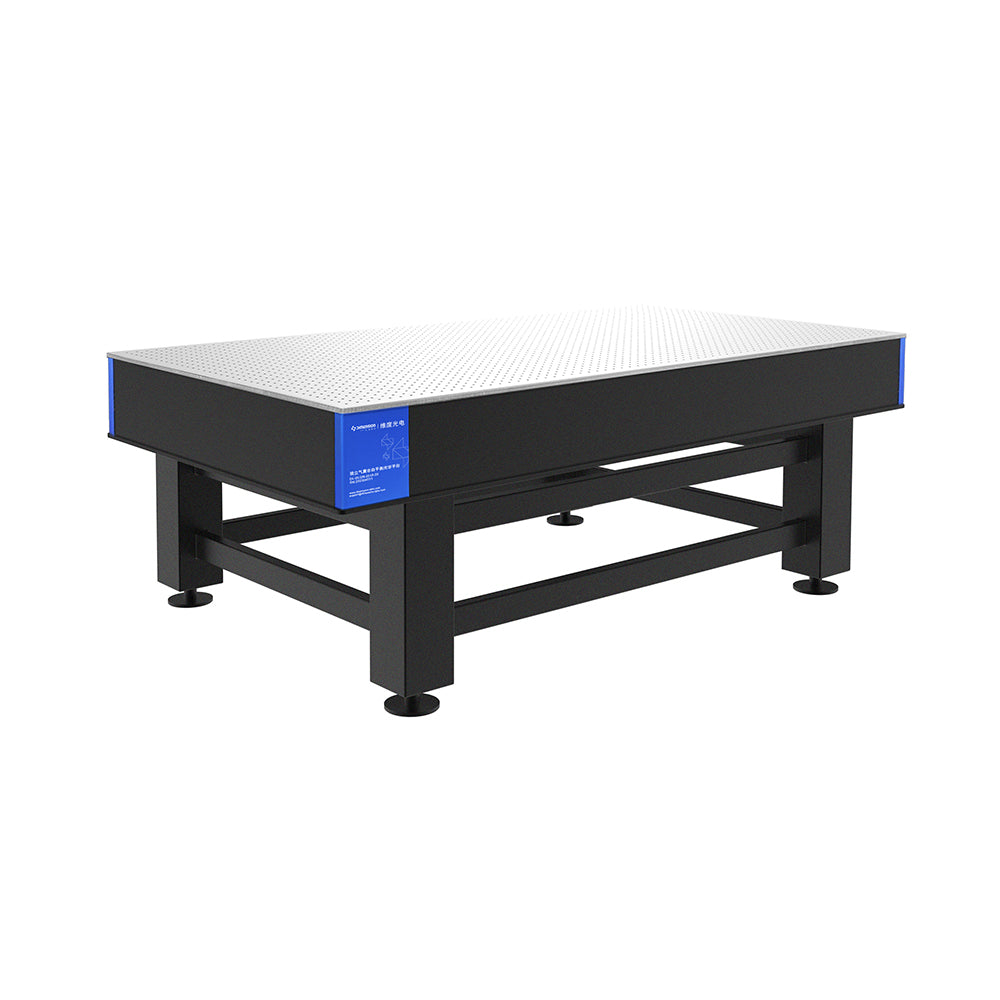

Independent Airbag Vibration Isolation Optical Table

The DL-DLQN series uses independent air bags (air springs) in each leg, inflated separately, for good vibration isolation without an automatic leveling system. It suits users who do not need the table to re-level itself after loading. One inflation typically lasts six months to a year, making operation simple and low-maintenance.

The table top is 12Cr13 ferromagnetic stainless-steel top with M6 tapped holes on a 25 mm × 25 mm grid, flatness 0.1 mm/m² and textured matte finish (Ra 0.8–1.6 µm).

Table Construction

• Welded steel-grid core: 6 mm steel plates welded into a cross-grid core and stress-relieved by high-temperature tempering and ageing. Heavy and very rigid, with minimal deflection under heavy loads and no risk of debonding. 22 standard sizes from 900 × 600 mm up to 6000 × 1500 mm.
• Bonded honeycomb core (models ending in -A): Stainless top plate, sealed isolation-cup layer, bonded honeycomb core and steel bottom plate. Lighter and easier to move and install; the dust-proof cups stop liquids and debris entering the core and block air flow between tapped holes. 13 standard sizes from 900 × 600 mm up to 2400 × 1500 mm.

Models & Specifications

Welded steel-grid core

Bonded honeycomb core (models ending in -A)

Custom sizes, hole patterns and isolation options are available on request. Datasheet: Dimension-Labs optical table selection guide (Chinese).
