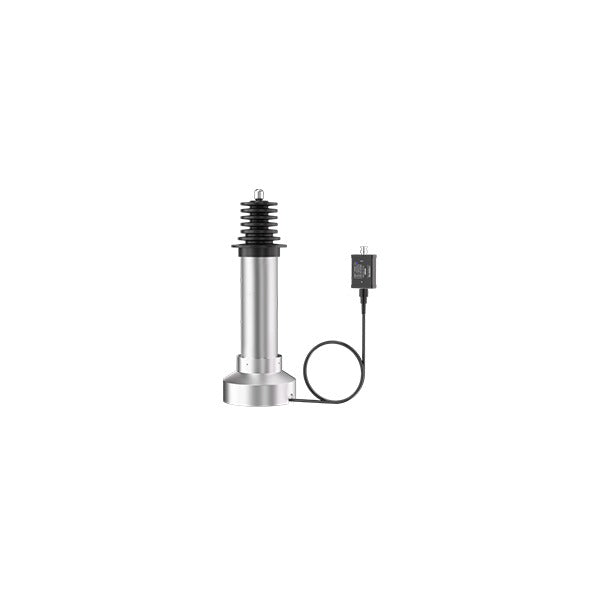

HP6603 High-Voltage Passive Probe 60 kV DC / 80 kV Pulse, 50 MHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The HP6603 is a 2000X high-voltage passive probe that measures up to 60 kV DC and 80 kV pulses with DC–50 MHz bandwidth and 1000 MΩ input impedance, for oscilloscopes with 1 MΩ inputs.
It suits high-voltage power supplies, pulsed power, X-ray and electrostatic applications. The probe must be grounded during use.
Models & Specifications
| Specification | HP6603 |
|---|---|
| Max. DC Voltage | 60 kV |
| Max. Pulse Voltage | 80 kV |
| Attenuation | 2000X |
| Bandwidth | DC–50 MHz |
| Rise Time | ≤7 ns |
| Input Impedance | 1000 MΩ |
| Accuracy | DC ≤2%, AC ≤5% |
| Oscilloscope Input | 1 MΩ only |
Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
