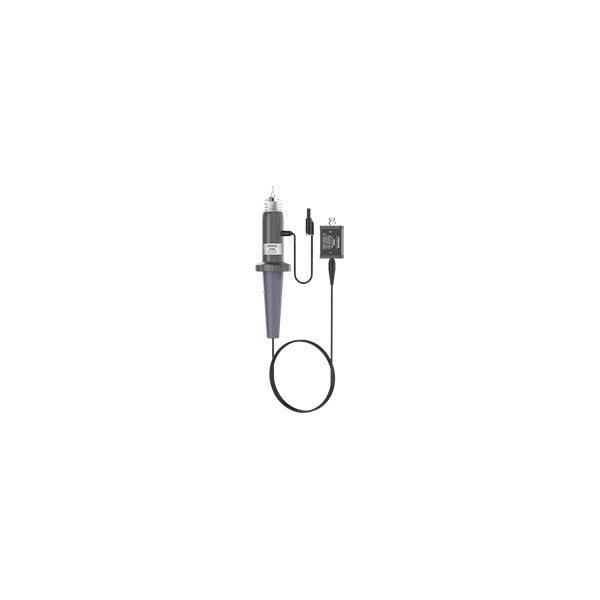

HP6203 High-Voltage Passive Probe 20 kV DC / 40 kV Pulse, 100 MHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The HP6203 is a 1000X high-voltage passive probe that measures up to 20 kV DC and 40 kV pulses with DC–100 MHz bandwidth. It is used with oscilloscopes and instruments with 1 MΩ input impedance for high-voltage power supply, pulse and insulation work.
A matched compensation box and dedicated cable are supplied; the probe must be grounded during use.
Models & Specifications
| Specification | HP6203 |
|---|---|
| Max. DC Voltage | 20 kV |
| Max. Pulse Voltage | 40 kV |
| Attenuation | 1000X |
| Bandwidth | DC–100 MHz |
| Rise Time | ≤3.5 ns |
| Input Impedance | 100 MΩ |
| Accuracy | DC ≤2%, AC ≤5% |
| Oscilloscope Input | 1 MΩ only |
Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
