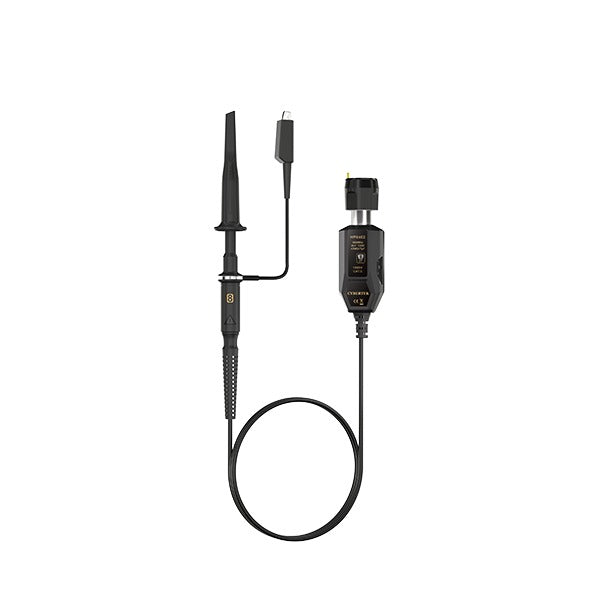

HP6000(T) Series Smart High-Voltage Passive Probe 2000–4000 V, 400 MHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The HP6000 and HP6000T series are smart high-voltage passive probes (100:1) for 2000 V or 4000 V peak with 400 MHz bandwidth. They are the first probes to match the oscilloscope input capacitance with a dial instead of square-wave calibration and a trimming tool, covering 8–23.5 pF in 0.5 pF steps.
A rotating channel ring replaces coloured identification bands, and the probes support oscilloscopes with automatic attenuation detection. The T versions have a lower 5 pF input capacitance.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Attenuation | 100:1 |
| Bandwidth | 400 MHz |
| Input Resistance | 100 MΩ |
| Compensation Range | 8–23.5 pF (0.5 pF steps), no square-wave calibration needed |
| Oscilloscope Input | 1 MΩ, auto attenuation detection supported |
Model Comparison
| Model | Max. Input Voltage | Input Capacitance |
|---|---|---|

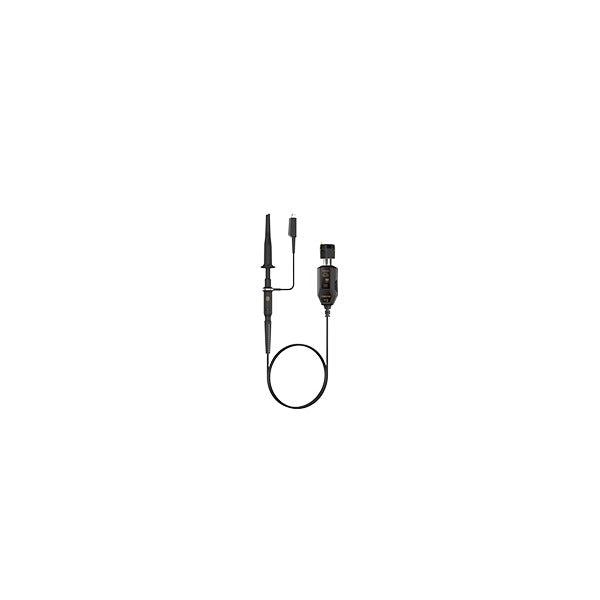

| HP6202 | 2000 V peak | 7 pF±0.5 pF |
| HP6402 | 4000 V peak | 7 pF±0.5 pF |
| HP6202T | 2000 V peak | 5 pF±0.5 pF |
| HP6402T | 4000 V peak | 5 pF±0.5 pF |
Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
