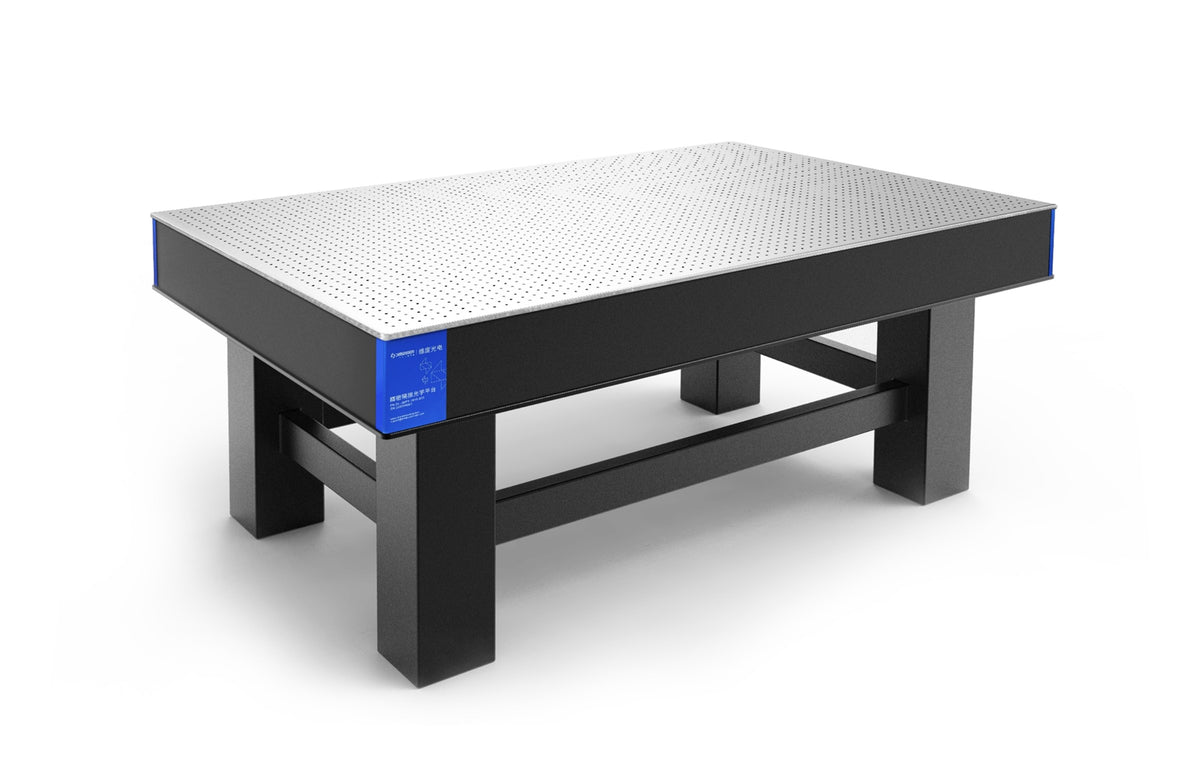

High-Precision Air-Floating Self-Balancing Optical Table

Key Features

  • Inverted-pendulum air-floating isolators with automatic self-leveling
  • Isolates about 90% of 5 Hz and 98% of 10 Hz floor vibration
  • Vertical natural frequency 1–1.7 Hz unloaded, 0.8 Hz at full load
  • Stainless ferromagnetic top, M6 holes on 25 mm grid, flatness 0.1 mm/m²
  • Welded steel-grid core (22 sizes up to 6000 × 1500 mm) or bonded honeycomb core (13 sizes)
  • Load capacity 200 to 3000 kg depending on size; max. inflation pressure 0.6 MPa
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The DL-GJQF1 series is Dimension-Labs' top-performance vibration-isolated optical table. Inverted-pendulum pneumatic (air-floating) isolators isolate both vertical and horizontal vibration and automatically re-level the table top after loading. Floor vibration at 5 Hz and 10 Hz is reduced by about 90% and 98% respectively, making it suitable for interferometry, laser systems, precision metrology and other vibration-sensitive experiments.

The table top is 12Cr13 ferromagnetic stainless-steel top with M6 tapped holes on a 25 mm × 25 mm grid, flatness 0.1 mm/m² and textured matte finish (Ra 0.8–1.6 µm).

Table Construction

  • Welded steel-grid core: 6 mm steel plates welded into a cross-grid core and stress-relieved by high-temperature tempering and ageing. Heavy and very rigid, with minimal deflection under heavy loads and no risk of debonding. 22 standard sizes from 900 × 600 mm up to 6000 × 1500 mm.
  • Bonded honeycomb core (models ending in -A): Stainless top plate, sealed isolation-cup layer, bonded honeycomb core and steel bottom plate. Lighter and easier to move and install; the dust-proof cups stop liquids and debris entering the core and block air flow between tapped holes. 13 standard sizes from 900 × 600 mm up to 2400 × 1500 mm.

Models & Specifications

Welded steel-grid core

Specification Value
Flatness (mm/m²) 0.1
Vertical Natural Frequency No load 1-1.7Hz, full load 0.8Hz
Horizontal Natural Frequency No load 1.1-1.7Hz, full load 1.0Hz
Isolation Method Air-floating isolation
Max. Dynamic Deflection Coefficient 1.1×10⁻³ ~ 3.5×10⁻³
Inflation Pressure Max. 0.6 MPa
Max. Relative Displacement (nm) 0.22~0.70
Model Table Size L×W×T (mm) Height (mm) Table Weight (kg) Max. Load (kg)

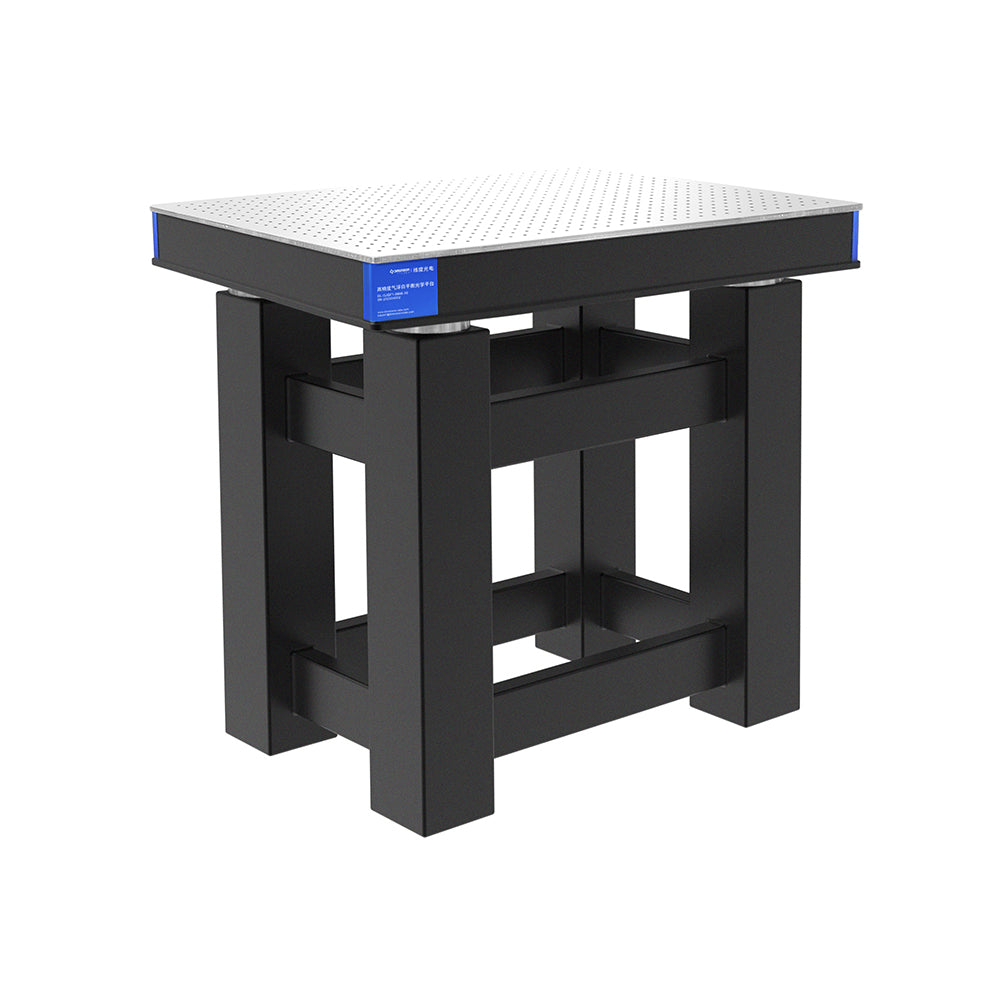

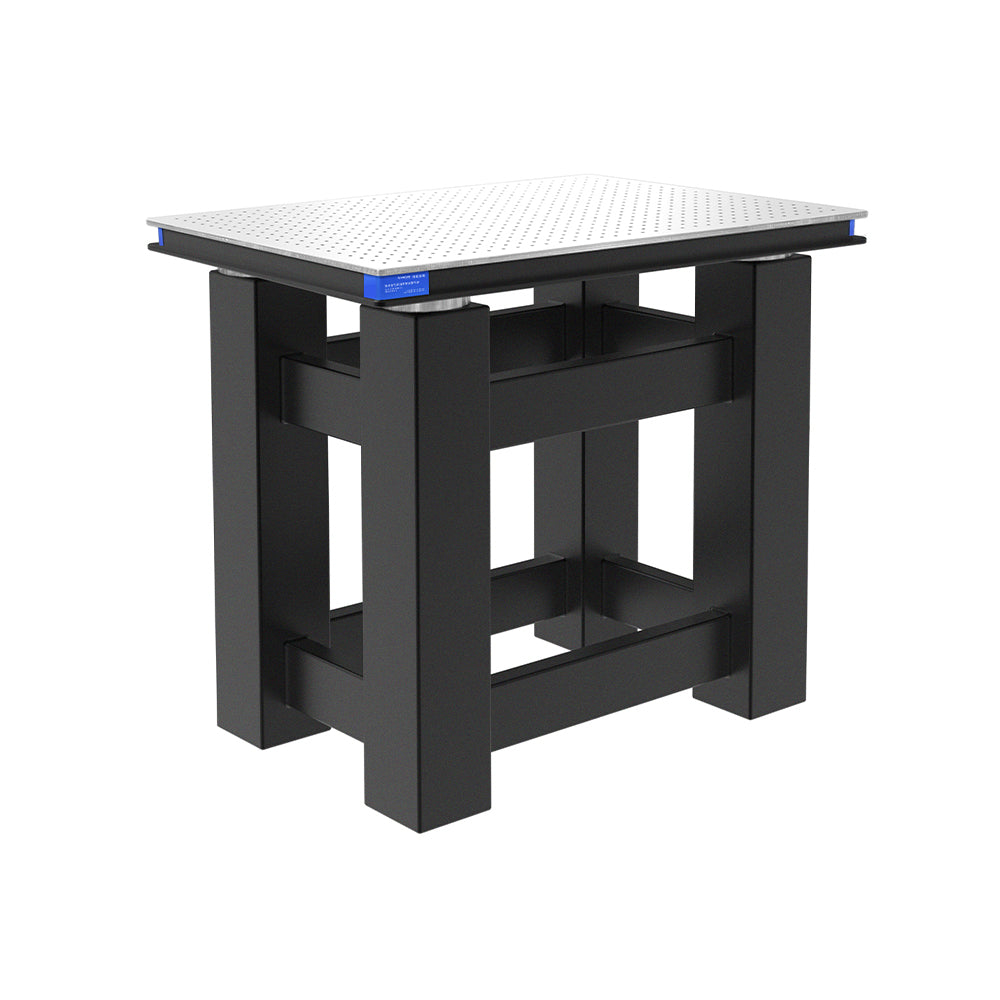

DL-GJQF1-0906-05 900×600×50 800 180 200
DL-GJQF1-0906-10 900×600×100 800 194 400

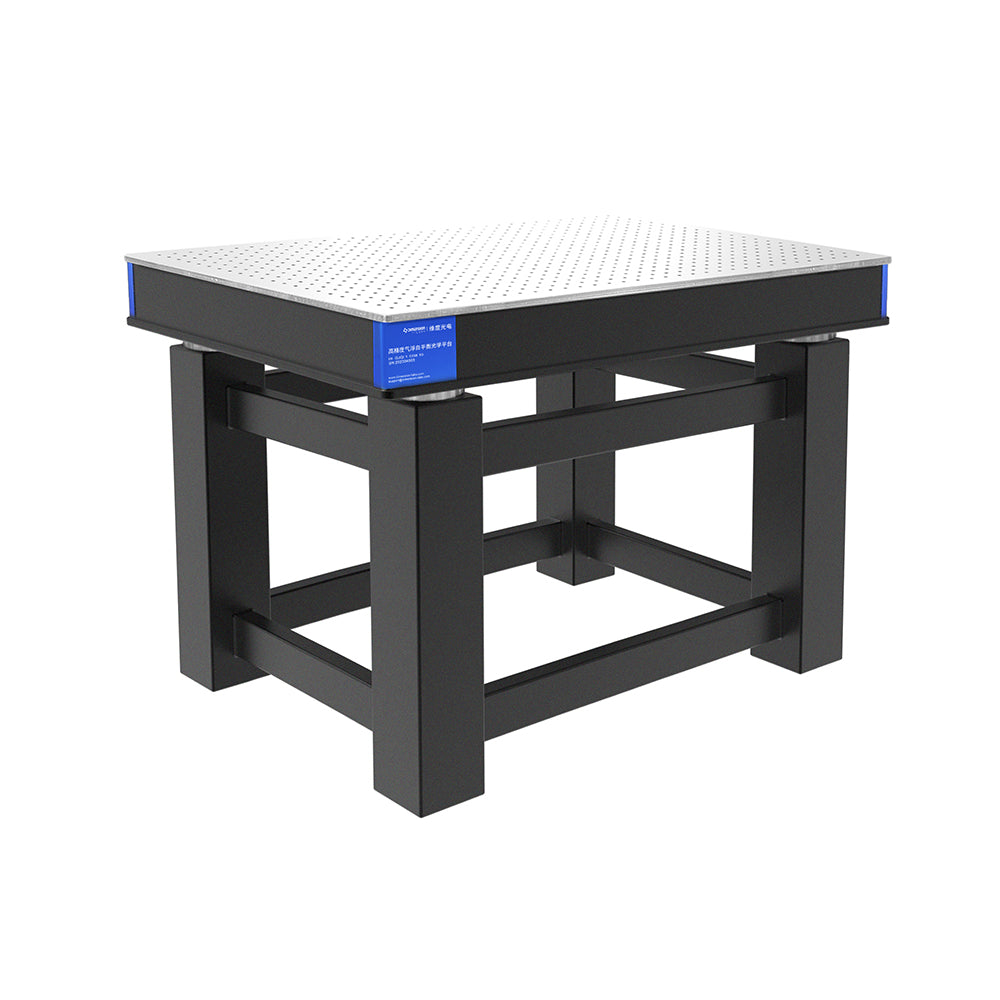

DL-GJQF1-1208-10 1200×800×100 800 199 800

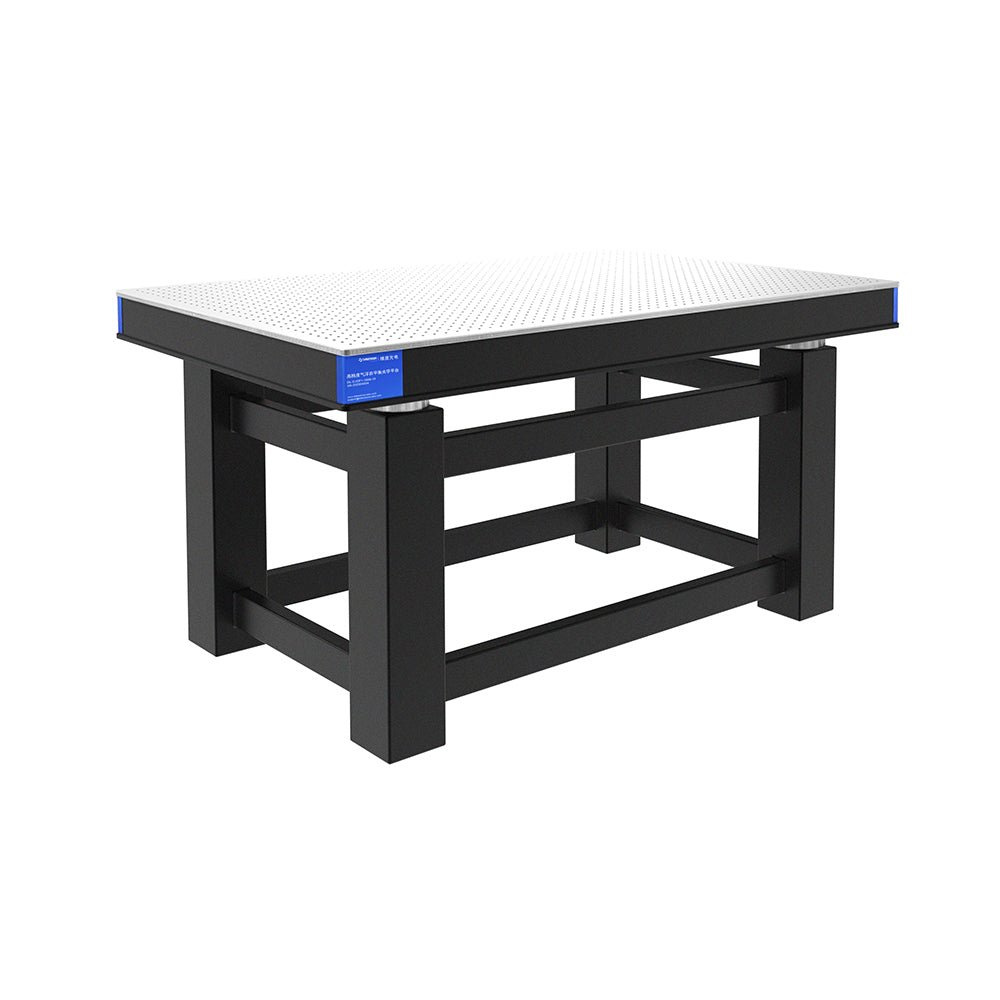

DL-GJQF1-1509-10 1500×900×100 800 264 800
DL-GJQF1-1510-10 1500×1000×100 800 294 800
DL-GJQF1-1511-10 1500×1100×100 800 314 800

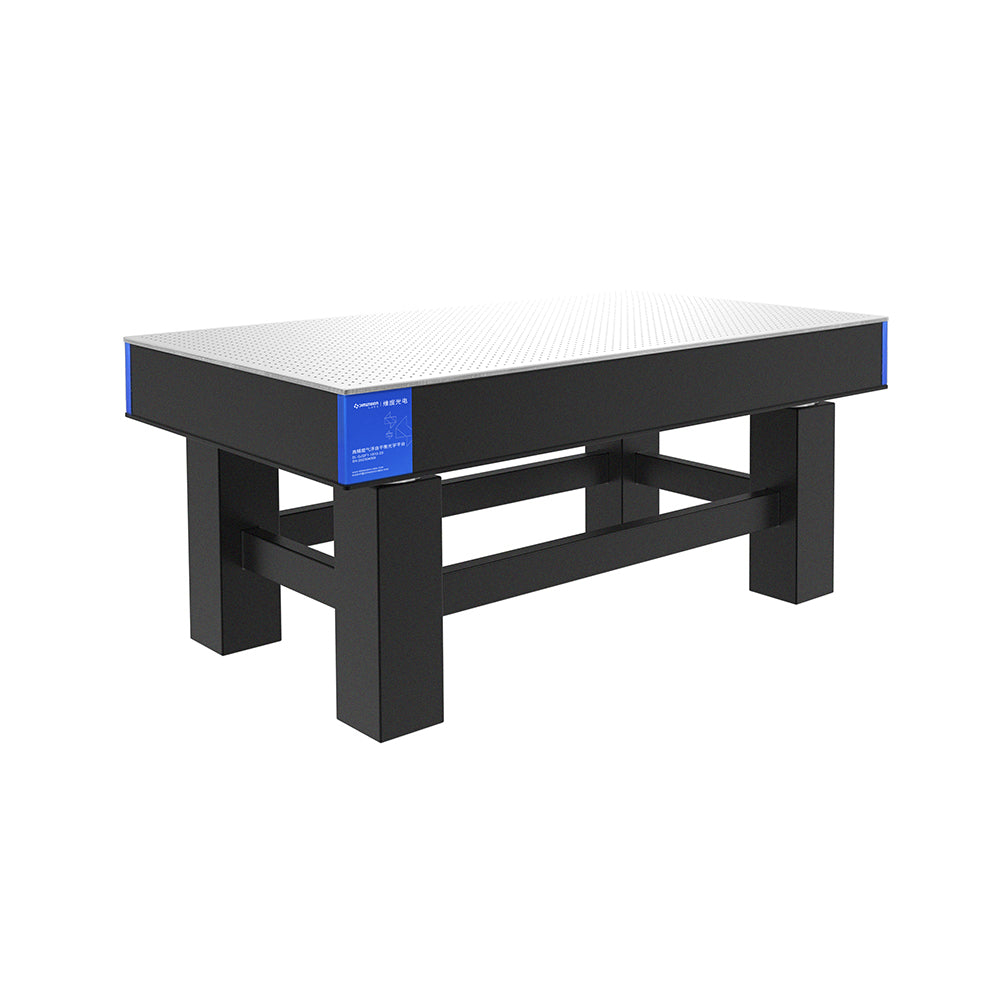

DL-GJQF1-1810-20 1800×1000×200 800 482 800
DL-GJQF1-1812-20 1800×1200×200 800 532 800

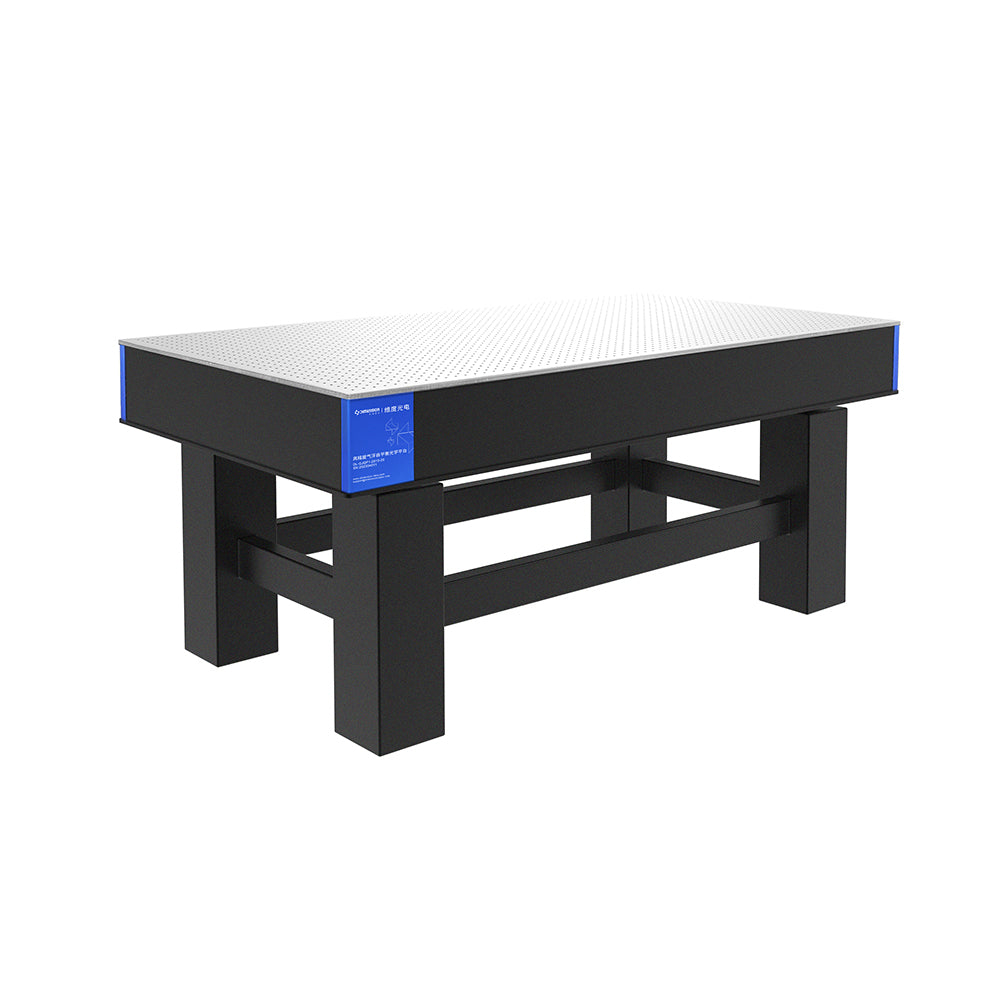

DL-GJQF1-2010-20 2000×1000×200 800 512 800
DL-GJQF1-2012-20 2000×1200×200 800 562 800
DL-GJQF1-2015-20 2000×1500×200 800 582 800

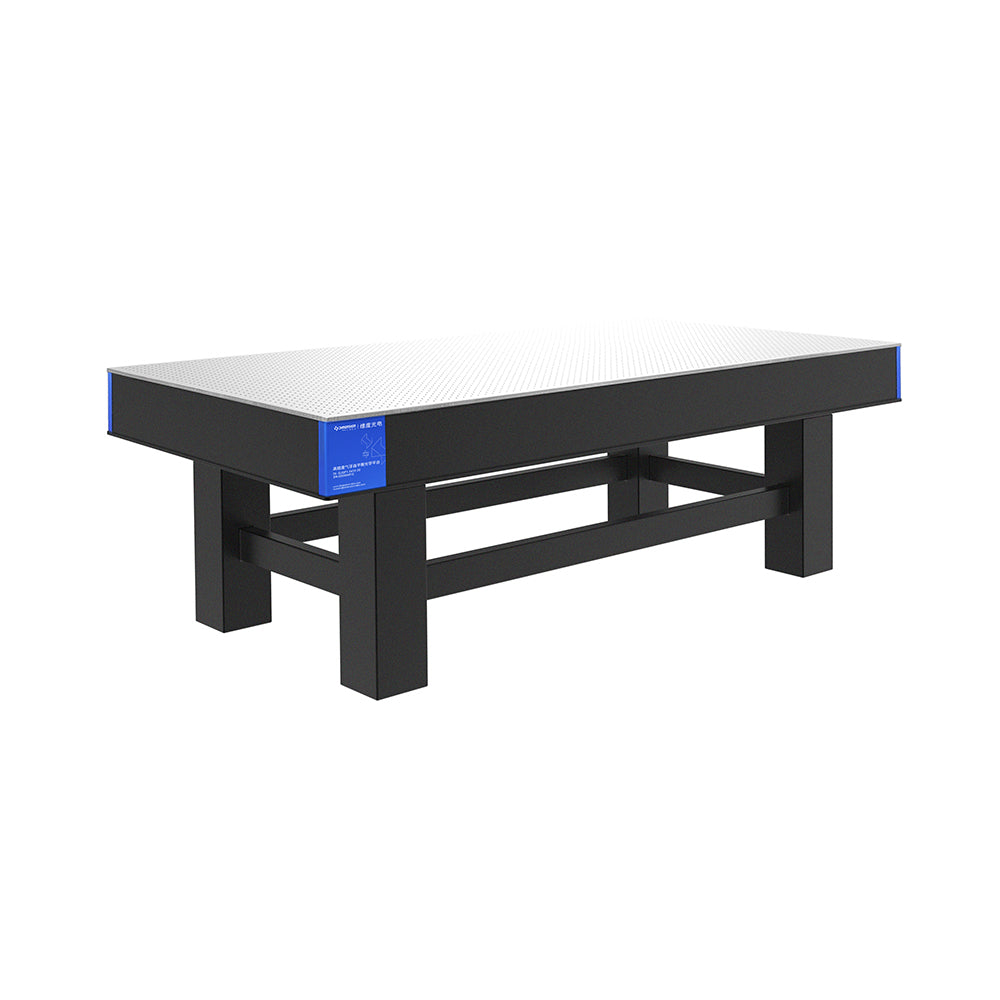

DL-GJQF1-2412-20 2400×1200×200 800 632 800
DL-GJQF1-2415-20 2400×1500×200 800 664 800

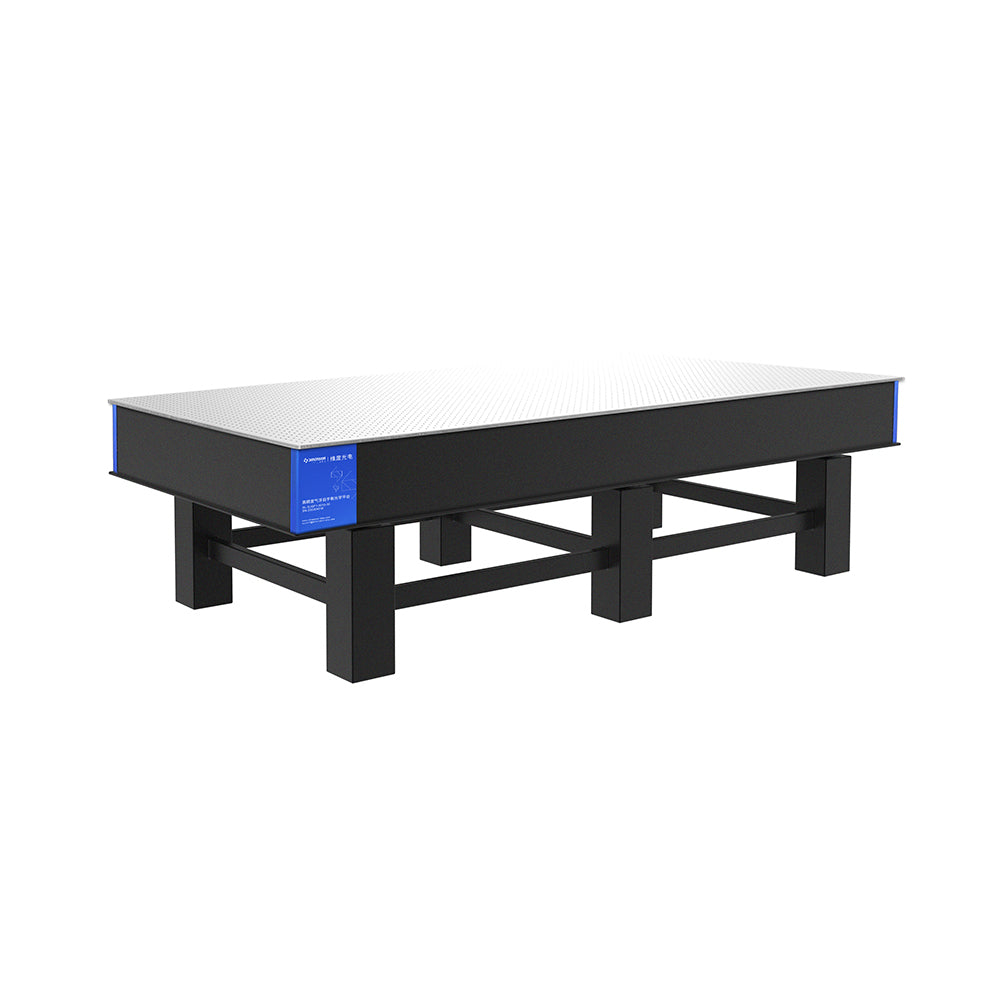

DL-GJQF1-3012-30 3000×1200×300 850 1074 800
DL-GJQF1-3013-30 3000×1300×300 850 1124 800
DL-GJQF1-3015-30 3000×1500×300 850 1211 800

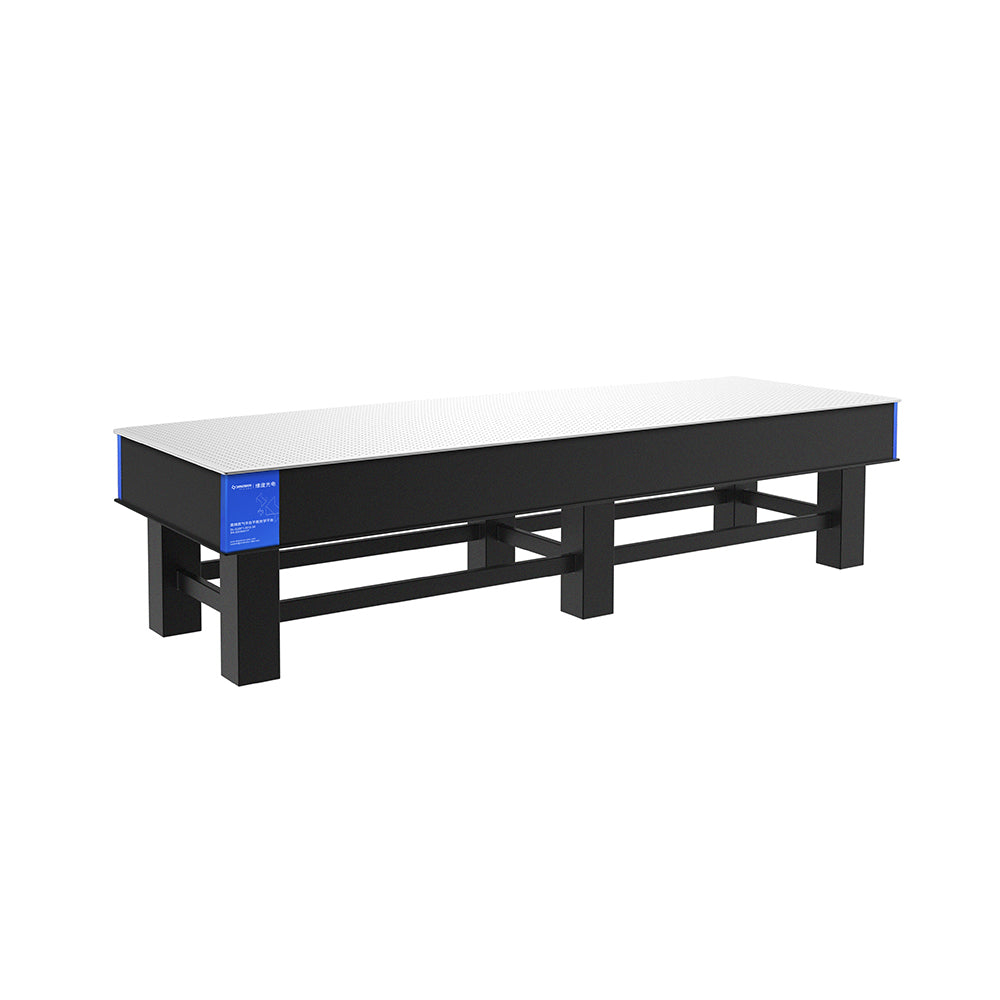

DL-GJQF1-3512-30 3500×1200×300 850 1394 800
DL-GJQF1-3513-30 3500×1300×300 850 1444 800
DL-GJQF1-3515-30 3500×1500×300 850 1514 800

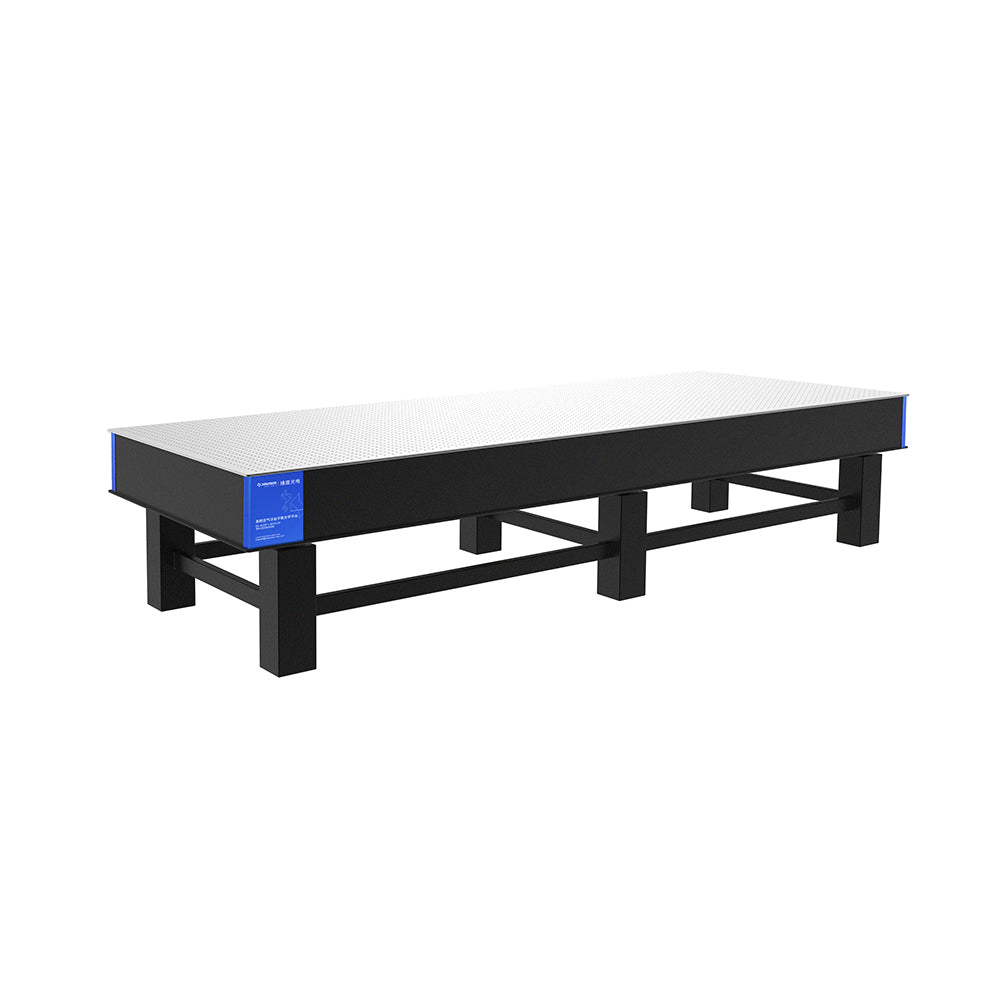

DL-GJQF1-4015-30 4000×1500×300 850 1564 800

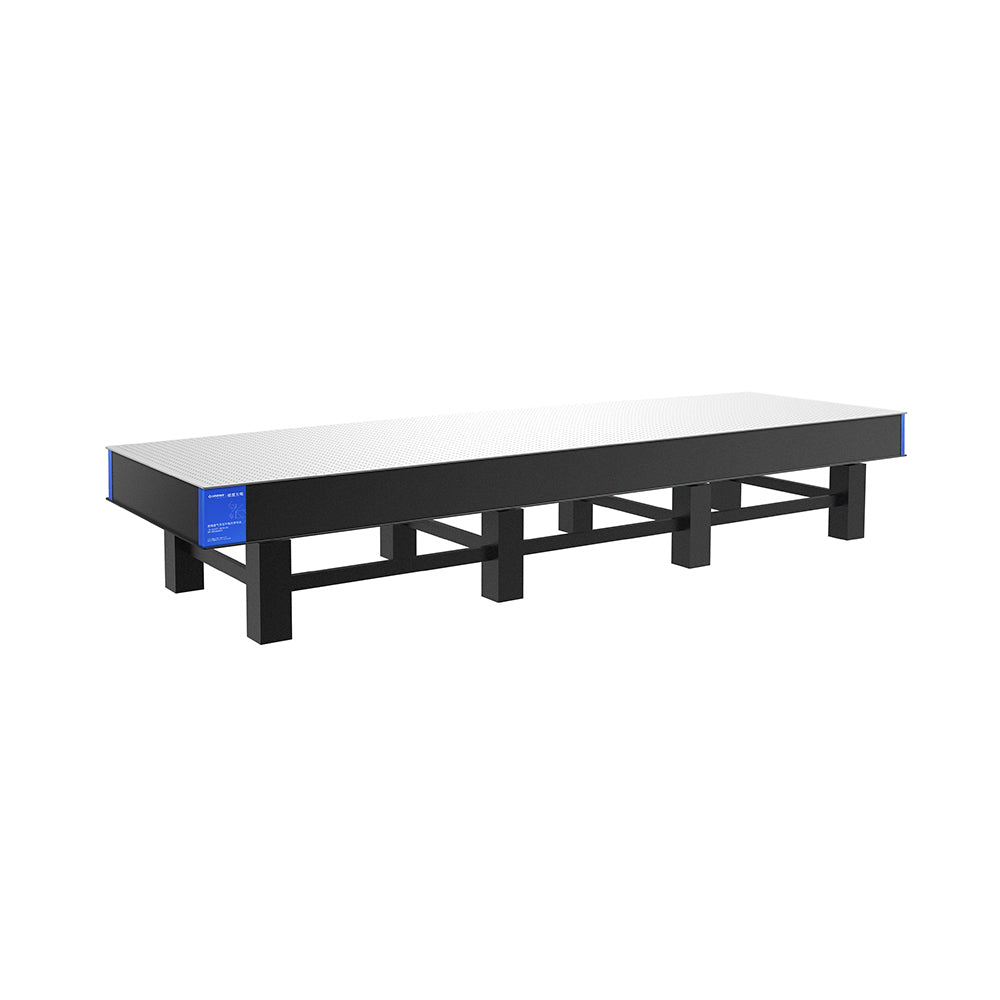

DL-GJQF1-5015-30 5000×1500×300 850 1794 800

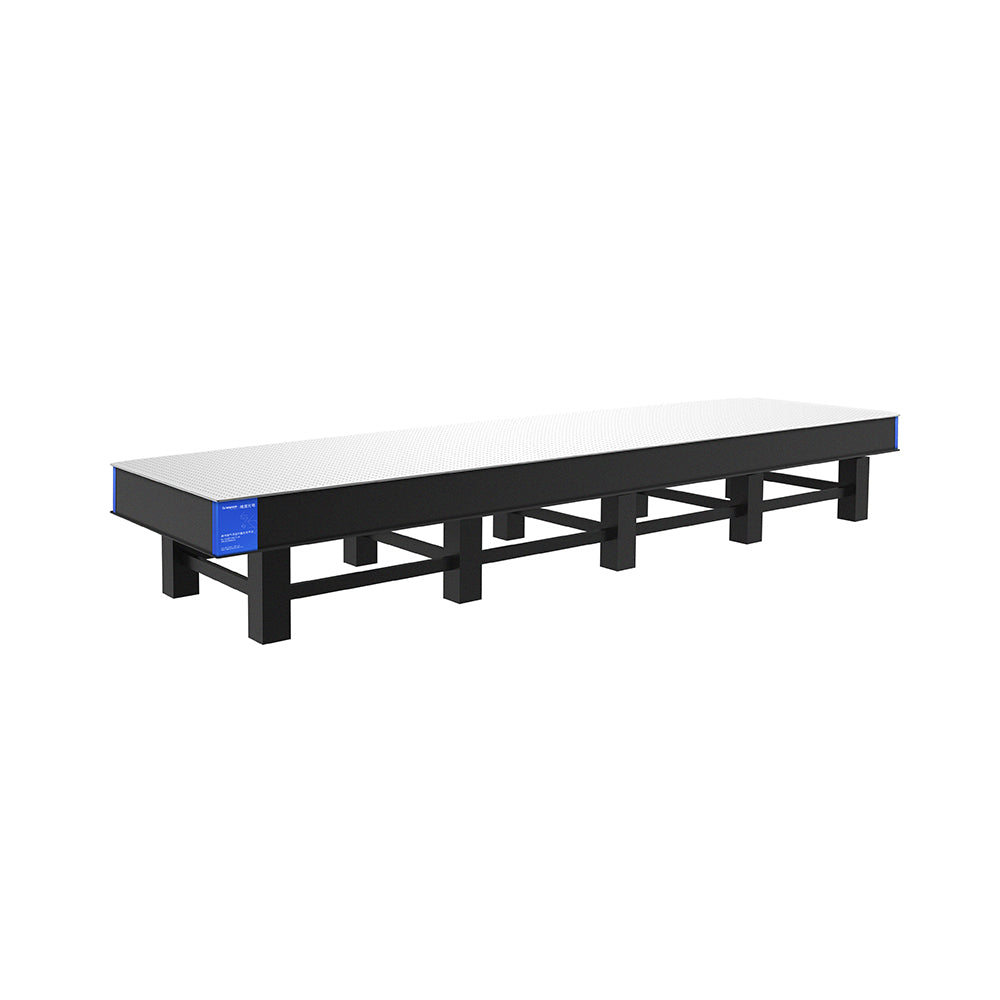

DL-GJQF1-6015-30 6000×1500×300 850 2194 3000

Bonded honeycomb core (models ending in -A)

Specification Value
Height (mm) 800
Isolation Method Air-floating isolation
Flatness (mm/m²) 0.1
Vertical Natural Frequency No load 1-1.7Hz, full load 0.8Hz
Horizontal Natural Frequency No load 1.1-1.7Hz, full load 1.0Hz
Max. Dynamic Deflection Coefficient 1.1×10⁻³ ~ 3.5×10⁻³
Inflation Pressure Max. 0.6 MPa
Max. Relative Displacement (nm) 0.22~0.70
Model Table Size L×W×T (mm) Table Weight (kg) Max. Load (kg)
DL-GJQF1-0906-05-A 900×600×50 180 200
DL-GJQF1-0906-10-A 900×600×100 194 400
DL-GJQF1-1208-10-A 1200×800×100 199 800
DL-GJQF1-1509-10-A 1500×900×100 264 800
DL-GJQF1-1510-10-A 1500×1000×100 294 800
DL-GJQF1-1511-10-A 1500×1100×100 314 800
DL-GJQF1-1810-20-A 1800×1000×200 482 800
DL-GJQF1-1812-20-A 1800×1200×200 532 800
DL-GJQF1-2010-20-A 2000×1000×200 512 800
DL-GJQF1-2012-20-A 2000×1200×200 562 800
DL-GJQF1-2015-20-A 2000×1500×200 582 800
DL-GJQF1-2412-20-A 2400×1200×200 632 800
DL-GJQF1-2415-20-A 2400×1500×200 664 800

Custom sizes, hole patterns and isolation options are available on request. Datasheet: Dimension-Labs optical table selection guide (Chinese).
