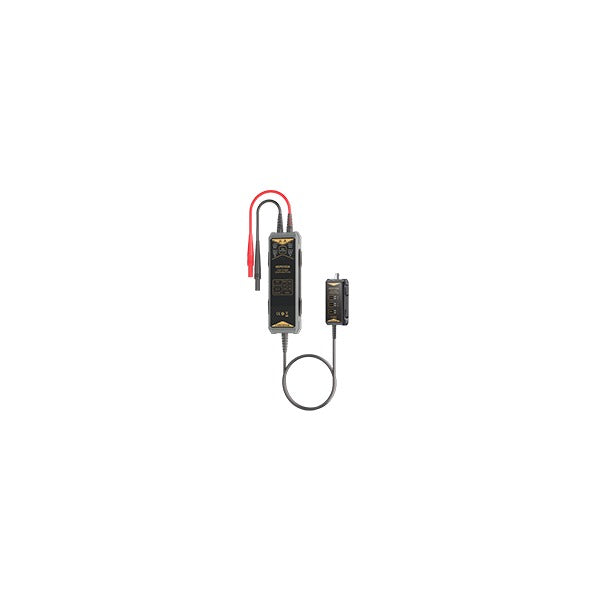

HDP6153A High-Voltage Differential Probe 15 kV, 100 MHz

Key Features

  • Differential voltage up to ±15000 V
  • Bandwidth DC–100 MHz, rise time ≤3.5 ns
  • 200X / 2000X attenuation
  • High stability and high CMRR
  • Accuracy ±1% (≤80% FS)
  • BNC output for any oscilloscope
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The HDP6153A is a high-voltage differential probe for floating measurements up to ±15 kV with 100 MHz bandwidth. Two attenuation ranges (200X for ±1500 V and 2000X for ±15000 V) and high CMRR make it suitable for high-voltage power conversion, pulsed power and insulation test work.

The standard BNC output works with any oscilloscope.

Models & Specifications

Specification HDP6153A
Max. Differential Voltage ±1500 V (200X) / ±15000 V (2000X)
Max. Differential Voltage (p-p) 30000 V
Bandwidth DC–100 MHz
Rise Time ≤3.5 ns
Attenuation 200X / 2000X
Accuracy ±1% (≤80% of full scale), ±2% (>80% of full scale)
Input Impedance 100 MΩ / 5 pF (each input)
CMRR >60 dB at 100 kHz
Output BNC

Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
