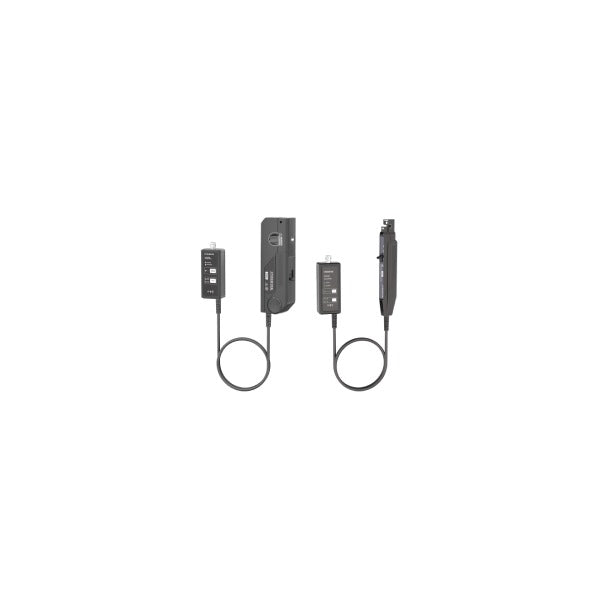

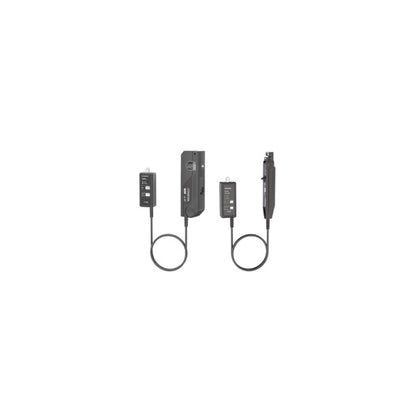

HCPR8000 Series Smart AC/DC Current Probe 30–500 A, up to 120 MHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The HCPR8000 series are wide-bandwidth smart DC/AC active current probes from 30 A to 500 A RMS with bandwidths up to 120 MHz and 1% accuracy. They capture fast current waveforms accurately with low circuit insertion loss and work with any oscilloscope that has a BNC input.
As smart probes, the HCPR8000 series can be connected to a PC through the OT7052 smart probe controller to read the probe status and remotely switch range, bandwidth limit and the overload alarm mute.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Accuracy | ±1% |
| Output Connector | BNC |
Model Comparison
| Model | Rated Current (RMS) | Peak Current | Bandwidth |
|---|---|---|---|

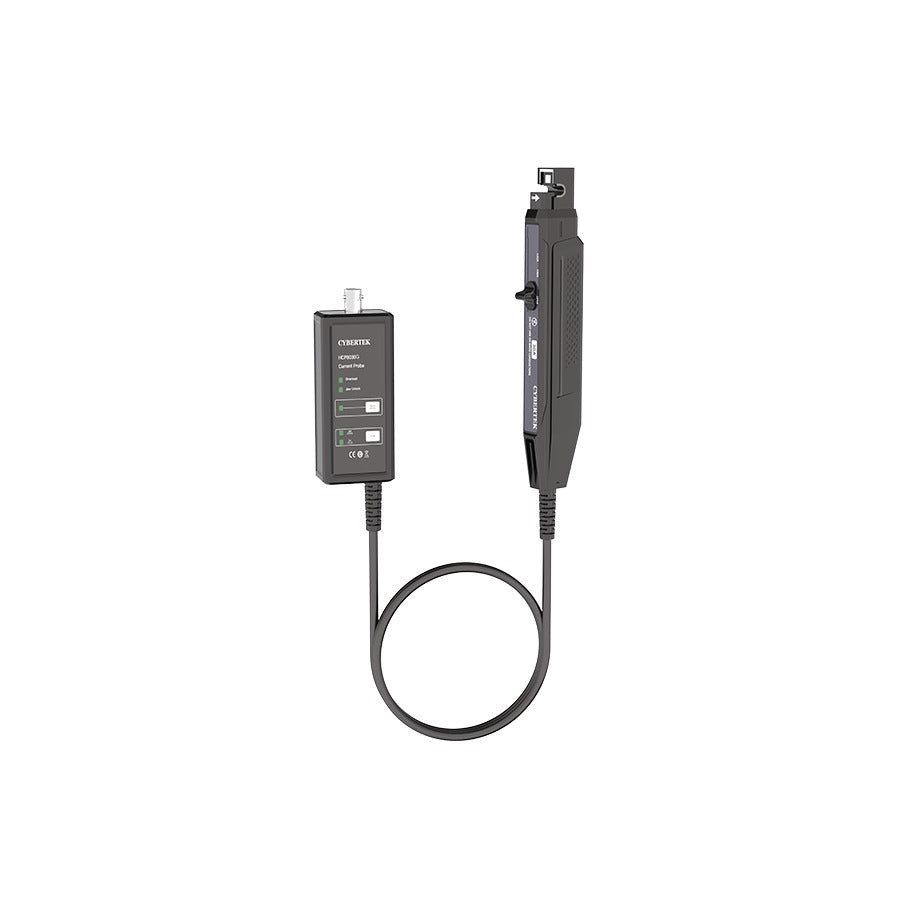

| HCPR8030 | 30 A | 50 A | DC–50 MHz |
| HCPR8030C | 30 A | 50 A | DC–70 MHz |
| HCPR8030D | 30 A | 50 A | DC–100 MHz |
| HCPR8030H | 30 A | 50 A | DC–120 MHz |
| HCPR8050 | 50 A | 75 A | DC–50 MHz |
| HCPR8070 | 70 A | 100 A | DC–30 MHz |

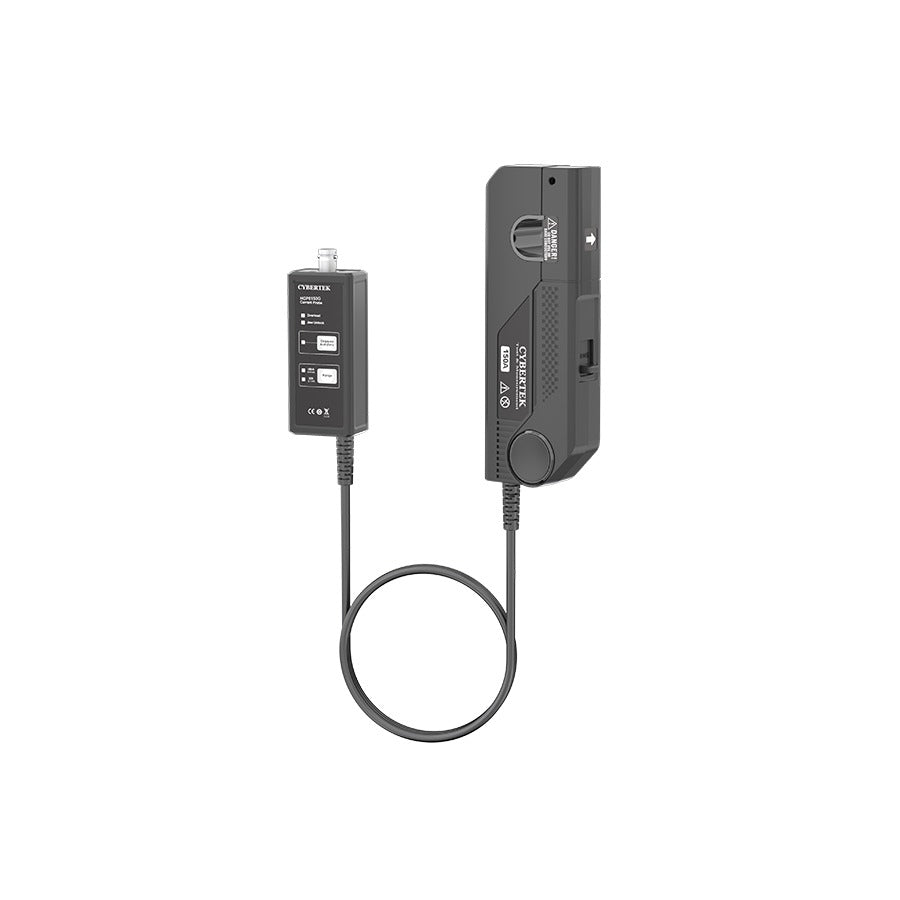

| HCPR8150 | 150 A | 300 A | DC–12 MHz |
| HCPR8150A | 150 A | 300 A | DC–22 MHz |
| HCPR8300 | 300 A | 500 A | DC–6 MHz |
| HCPR8300A | 300 A | 500 A | DC–8 MHz |
| HCPR8500 | 500 A | 750 A | DC–5 MHz |
Specifications from the official Cybertek product page. Contact us for the full specification sheet.
