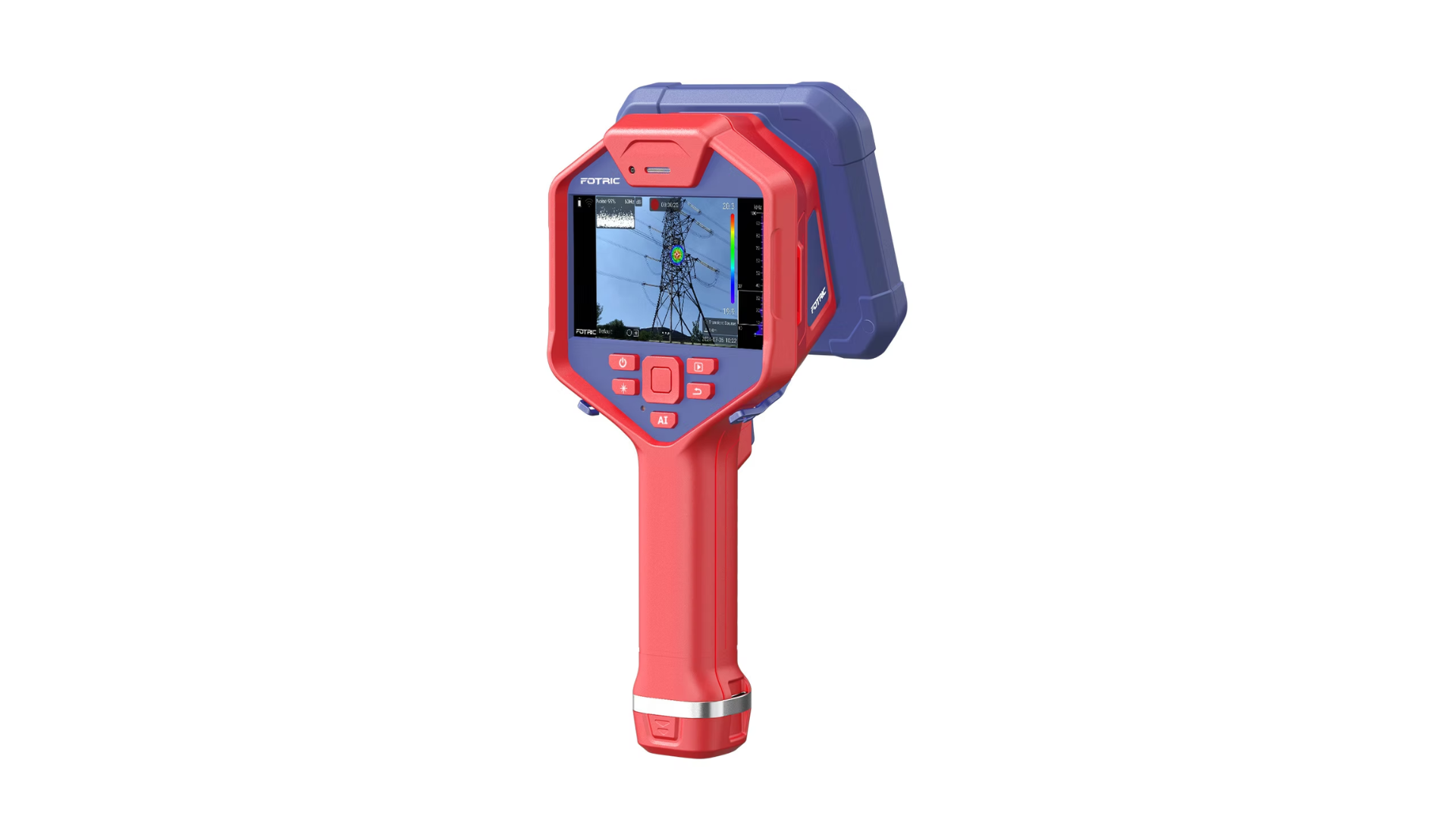

H7 345ch
Regular price
$0.00
Sale price
$0.00
Regular price
Unit price
per
Couldn't load pickup availability
|
Microphone Channels |
345 MEMS digital microphone
|
|
Working Distanc |
0.3~300m(1~984ft）
|
|
Acoustic Image Focus |
Masks the surrounding area and focuses only on a selected part of the acoustic image.
|
|
Partial Discharge Diagnostics |
Automatic diagnosis of discharge types such as surface, floating and tip (corona) discharges.
|
|
Gray-scale Background |
Displayed as a digital image in black and white grey scale.
|
|
Battery |
7.4V, 3500m rechargeable lithium battery, field replaceable.
|
|
Acoustic Image FOV |
66° × 52°
|
|
Acoustic Sampling Rate |
200kHz
|
|
Acoustic Refresh Rate |
25Hz
|
|
Frequency Range |
2k~100kHz
|
|
Detection Mode |
Leak Mode: Displays the leakage level; PD Mode: Displays a PRPD diagram, adapted to different AC frequencies (50/60Hz).
|
|
On-device Analysis |
The device can directly analyse acoustic images.
|
|
Analysis Software |
AnalyzIR professional thermal and acoustic image analysis software
|
|
Display Screen |
5", 1280*720 pixels, LCD touchscreen display with Gorilla Anti-Explosion screen.
|
|
Image Mode |
Single, Multi, Hologram
|
|
Digital Camera |
13 megapixel, industrial-grade digital camera.
|
|
Storage Card |
SD card, hot-swappable, supports up to 1TB.
|
|
Battery Operation Time |
Continuous work ≥ 3h （depends on the environment and workload
|
|
Languages |
English, French, German, Italian, Japanese, Korean, Portuguese, Spanish, Thai, Traditional Chinese
|
|
Size |
243mm*95mm*150mm
|
|
Weight |
770g
|
|
Acoustic Image Delay (T-FFTD®) |
Captures instantaneous sound signals, can stay longer in real-time acoustic image
|
|
Favorites |
Click the favorite button to save the favorite status to acoustic images and holographic acoustic videos, highlighted in the gallery preview screen, and later filter by favorite status in the gallery.
|
|
Battery Type |
3.6V, 5000mAh Rechargeable Lithium Battery, Field-Replaceable
|
