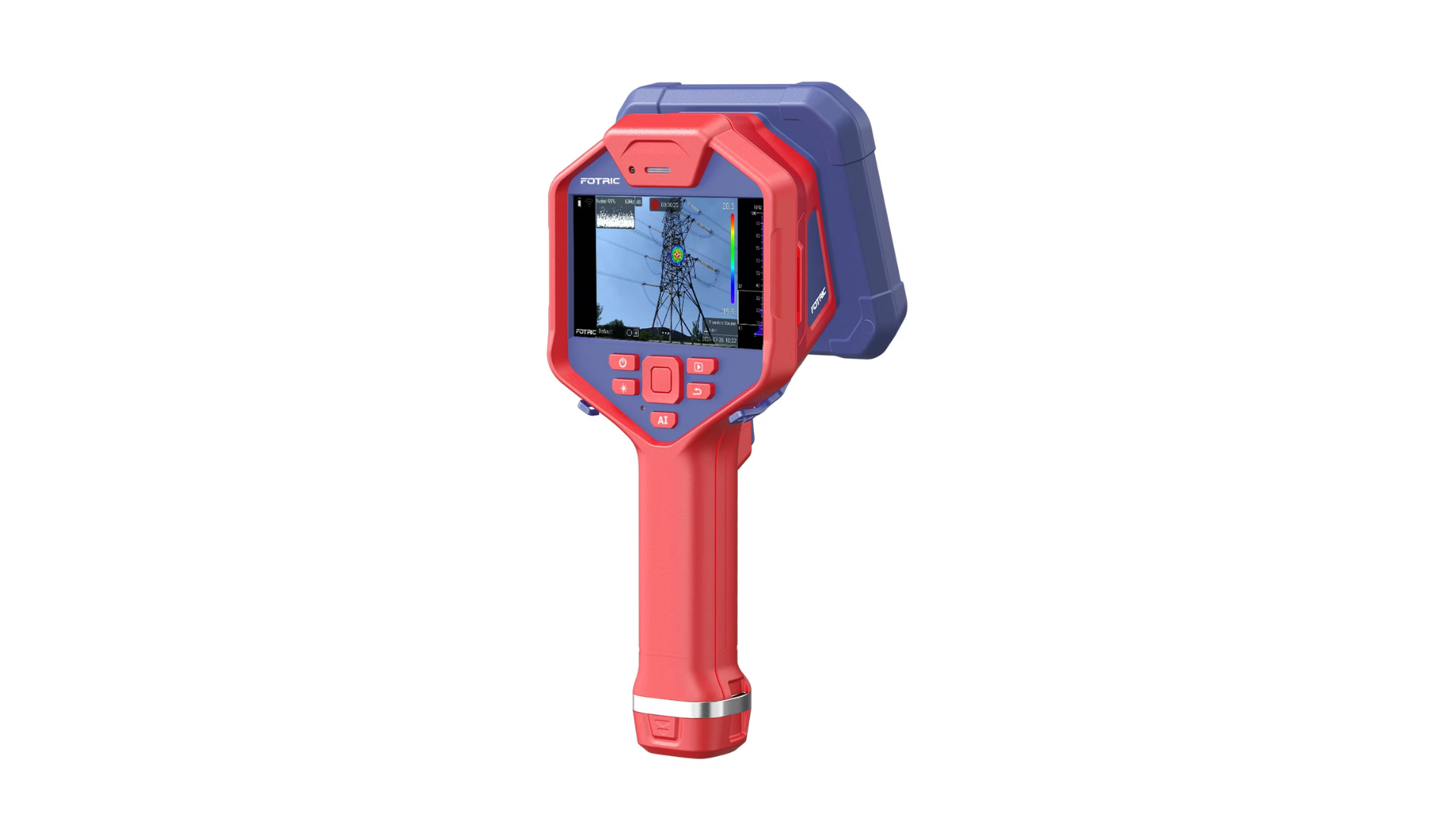

H6+ 234ch
Regular price
$0.00
Sale price
$0.00
Regular price
Unit price
per
Couldn't load pickup availability
| Microphone channels | 234 MEMS digital microphones |
|---|---|
|
Acoustic Image FOV |
66° × 52° |
|
Acoustic Sampling Rate |
200kHz |
|
Acoustic Refresh Rate |
25Hz |
|
Working Distance |
0.3~250m(1~820ft） |
|
Frequency Range |
2~100kHz |
|
Frequency Range Selection |
Support preset frequency range for different scenarios for later manual adjustment selection; Support for frequency range. |
|
Detection Mode |
LQ Mode: Displays the leakage PD level; PD Mode: Displays a PRPD diagram, adapted to different AC Default AC Frequency frequencies (50/60Hz). |
|
On-device Analysis |
The device can directly analyse acoustic images |
|
Analysis Software |
AnalyzIR professional thermal and acoustic image analysis software. |
|
Leak Evaluation |
Automatic identification of leakage points, automatic evaluation of leakage, and annual energy costs. |
| Partial Discharge Diagnostics |
Automatic diagnosis of discharge types such as surface, floating, and Acoustic Imaging Display tip (corona) discharges. |
| Display Screen |
5", 1280*720 pixels, LCD touchscreen display with Gorilla Anti-Explosion screen. |
|
LED Flash Lamp |
Supports torch illumination and flash light mode |
| Battery Operation Time | 2 batteries, Continuous work ≥ 4h per battery （depends on the environment and workload） |
|
Enclosure Rating |
IP54(IEC 60529) |
|
Recommended Calibration Interval |
1 year |
|
Size |
243mm*95mm*150mm
|
