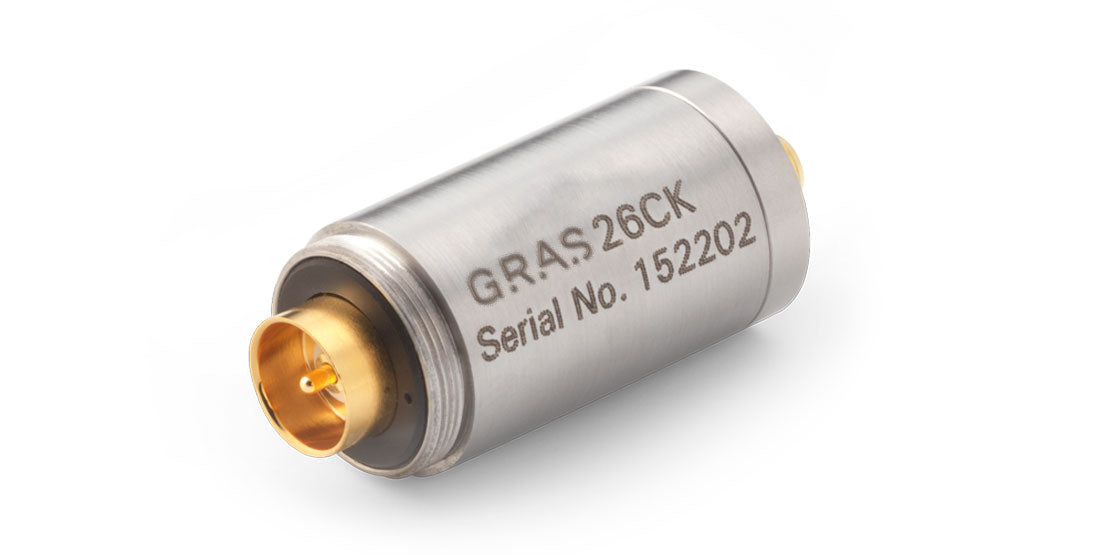

26CK 1/2" CCP Standard Preamplifier with Microdot Connector, Very Short
The GRAS 26CK ½” Preamplifier, Very Short is a very small preamplifier optimized for use with prepolarized condenser microphones. It is a robust unit that uses a constant current power (CCP) supply. The 26CK has a very low inherent noise level, a large dynamic range, and a frequency response from below 2 Hz to above 200 kHz.
The small, ceramic thick-film substrate in the 26CK has a very high input impedance and is shielded by a guard ring, which minimizes the influence of stray capacitance and microphonic interference.
The 26CK is delivered with Generation II TEDS. The calibration data is programmed into the built-in TEDS according to IEEE 1451.4 using UDID I27-0-0-0U. If your measurement platform supports Transducer Electronic Data Sheets you will be able to read and write data like properties and calibration data.
Key Specifications
| Frequency range (±0.2 dB) with 18 pF microphone dummy | 2.5 Hz to 200 kHz |
| Slew rate | 20 V/µs |
| Input impedance | 20 // 0.4 GΩ // pF |
| Output impedance | <50 Ω |
| Output Voltage Swing, min. @ 24-28 V CCP voltage supply | 8 Vp |
| Noise (A-Weighted) max. | 2.5 µV |
| Noise (A-Weighted) typ. | 1.8 µV |
| Noise (Linear 20 Hz – 20 kHz) max. | 6 µV |
| Noise (Linear 20 Hz – 20 kHz) typ. | 3.5 µV |
| High-pass filter @3dB cut-off | TBD Hz |
| Gain | -0.45 dB |
| Power supply (Constant Current Power) | 2 to 20 (typ. 4) mA |
| DC bias voltage, typ. | 12 V |
| Temperature range, operation | -30 to 70 °C / -22 to 158 °F |
| Temperature range, storage | -40 to 85 °C / -40 to 185 °F |
| Humidity range non condensing | 0 to 95 % RH |
| TEDS UDID (IEEE 1451.4) | I27-0-0-0U |
| Connector type | Microdot 10/32 |
| Weight | TBD g |
Specifications from the official GRAS product sheet. Please refer to the attached datasheet for full details.
