26CB 1/4" CCP Standard Preamplifier for Microphone with Microdot Connector
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

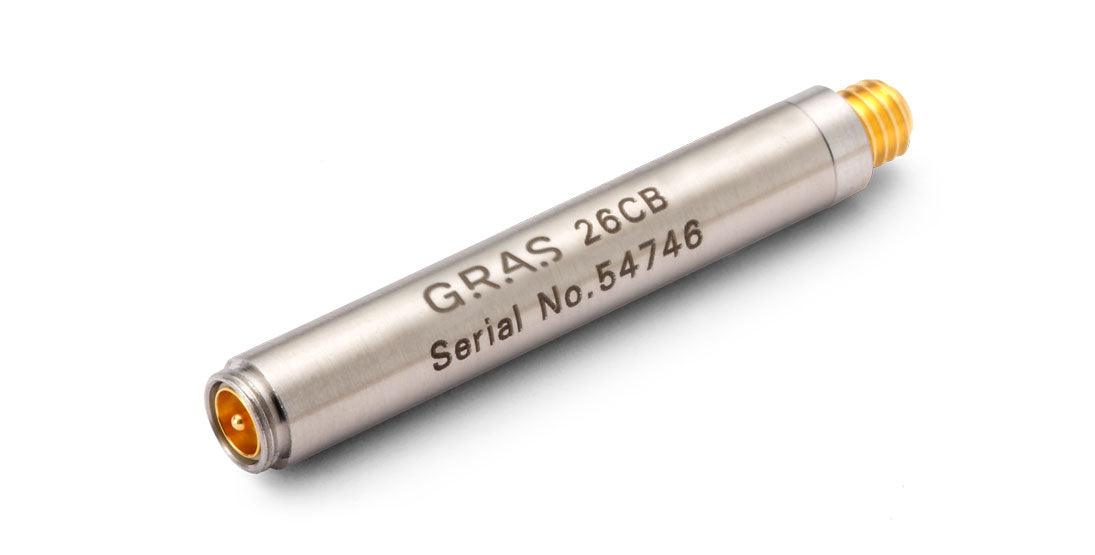

26CB 1/4" CCP Standard Preamplifier for Microphone with Microdot Connector
The GRAS 26CB 1/4" CCP Standard Preamplifier with Microdot Connector is a general-purpose preamplifier optimized for use with prepolarized condenser microphones. It is a small, robust unit and uses a GRAS CCP power supply, e.g., GRAS 12AL. It has a very low inherent noise level, a large dynamic range, and a frequency response from below 2 Hz to above 200 kHz.
Its small ceramic thick-film substrate has a very high input impedance and is shielded by a guard ring to minimize the influence of stray capacitance and microphonic interference.The GRAS 26CB is delivered with a built-in TEDS chip and can be programmed as a single unit with a microphone fitted.
The diameter is 6.35 mm (1/4"), length 44 mm and weight 19 g (0.67 oz)
Key Specifications
| Frequency range (±0.2 dB) with 18 pF microphone dummy | 2.5 Hz to 200 kHz |
| Slew rate | 20 V/µs |
| Input impedance | 20 // 0.4 GΩ // pF |
| Output impedance | < 50 Ω |
| Output Voltage Swing, min. @ 24-28 V CCP voltage supply | 8 Vp |
| Noise (A-Weighted) max. | 2.5 µV |
| Noise (A-Weighted) typ. | 1.8 µV |
| Noise (Linear 20 Hz – 20 kHz) max. | 6 µV |
| Noise (Linear 20 Hz – 20 kHz) typ. | 3.5 µV |
| Gain | -0.35 dB |
| Power supply (Constant Current Power) | 2 to 20 (typ. 4) mA |
| DC bias voltage, typ. | 12 V |
| Temperature range, operation | -30 to 70 °C / -22 to 158 °F |
| Temperature range, storage | -40 to 85 °C / -40 to 185 °F |
| Humidity range non condensing | 0 - 95 % RH |
| TEDS (IEEE 1451.4) | 769 v. 0.9 |
| Connector type | Microdot 10/32 |
| Weight | 7 g / 0.25 oz |
Specifications from the official GRAS product sheet. Please refer to the attached datasheet for full details.
