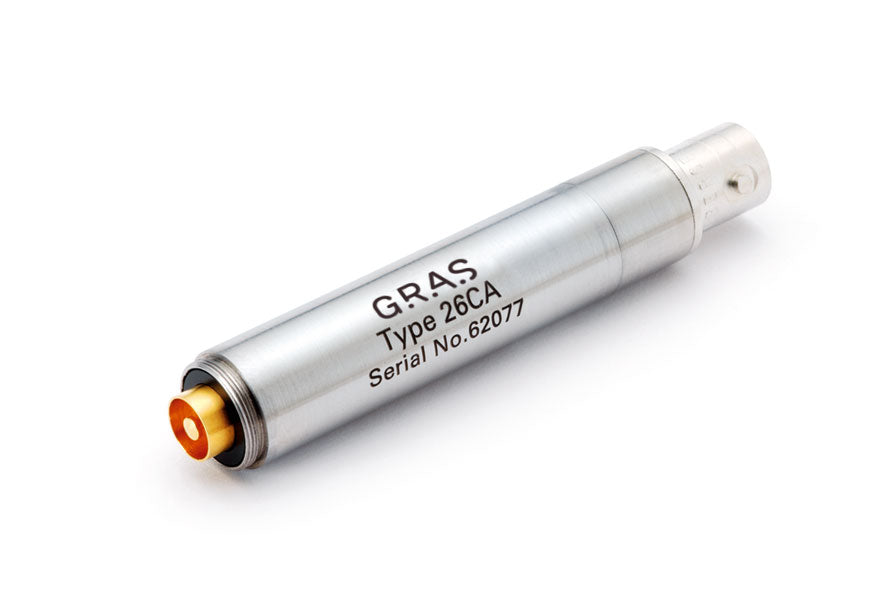

26CA 1/2" CCP Standard Microphone Preamplifier with BNC Connector
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
26CA 1/2" CCP Standard Microphone Preamplifier with BNC Connector
The GRAS 1/2" Preamplifier GRAS 26CA is a general purpose preamplifier optimized for use with prepolarized condenser microphones. It is a small,robust unit and uses a GRAS CCP power supply (ICP ®), e.g. GRAS 12AL. It has a very low inherent noise level, and a large dynamic range and a frequency response from below 2 Hz to above 200 kHz.
The GRAS 26CA 1/2'' CCP Standard Preamplifier is a small, robust unit and uses a CCP power supply (ICP ®), e.g. GRAS 12AL. It has a very low inherent noise level, a large dynamic range and a frequency response from below 2 Hz to above 200 kHz.
Its small ceramic thick-film substrate has a very high input impedance, and is shielded by a guard ring to minimise the influence of stray capacitance and microphonic interference.
Key Specifications
| Frequency range (±0.2 dB) with 18 pF microphone dummy | 2.5 Hz to 200 kHz |
| Slew rate | 20 V/µs |
| Input impedance | 20 // 0.4 GΩ // pF |
| Output impedance | < 50 Ω |
| Output Voltage Swing, min. @ 24-28 V CCP voltage supply | 8 Vp |
| Noise (A-Weighted) max. | 2.5 µV |
| Noise (A-Weighted) typ. | 1.8 µV |
| Noise (Linear 20 Hz – 20 kHz) max. | 6 µV |
| Noise (Linear 20 Hz – 20 kHz) typ. | 3.5 µV |
| Gain | -0.30 dB |
| Power supply (Constant Current Power) | 2 to 20 (typical 4) mA |
| DC bias voltage, typ. | 12 V |
| Temperature range, operation | -30 to 70 °C / -22 to 158 °F |
| Temperature range, storage | -40 to 85 °C / -40 to 185 °F |
| Humidity range non condensing | 0 - 95 % RH |
| TEDS UDID (IEEE 1451.4) | I27-0-0-0U |
| Connector type | BNC |
| Weight | 26.0 g / 0.92 oz |
Specifications from the official GRAS product sheet. Please refer to the attached datasheet for full details.
