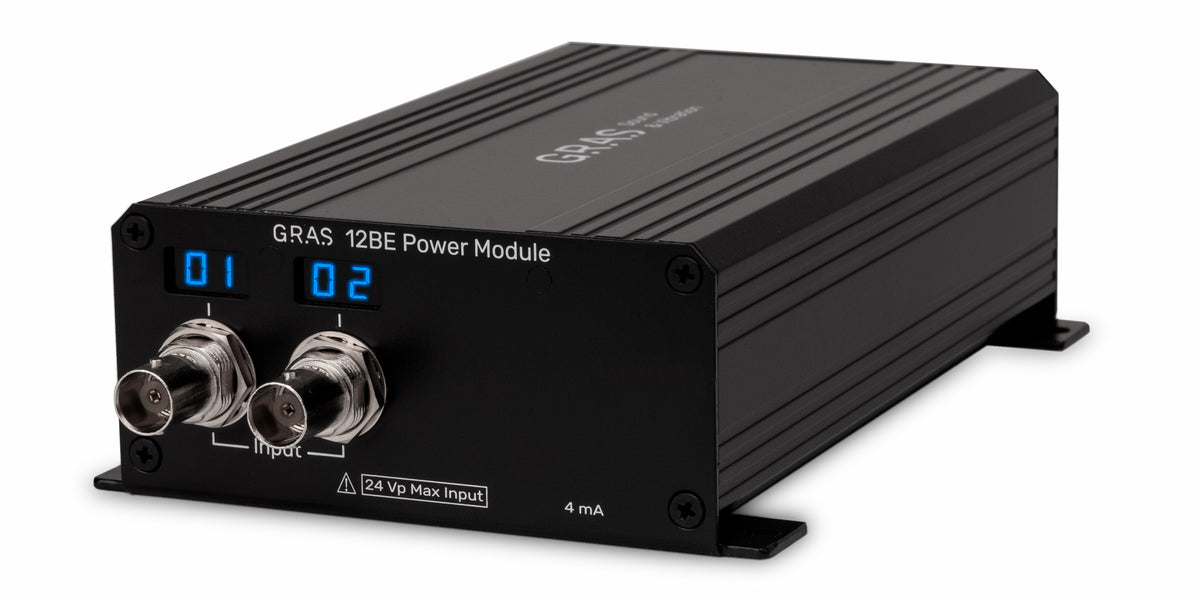

12BA / 12BE / 12BB CCP Power Module with TEDS

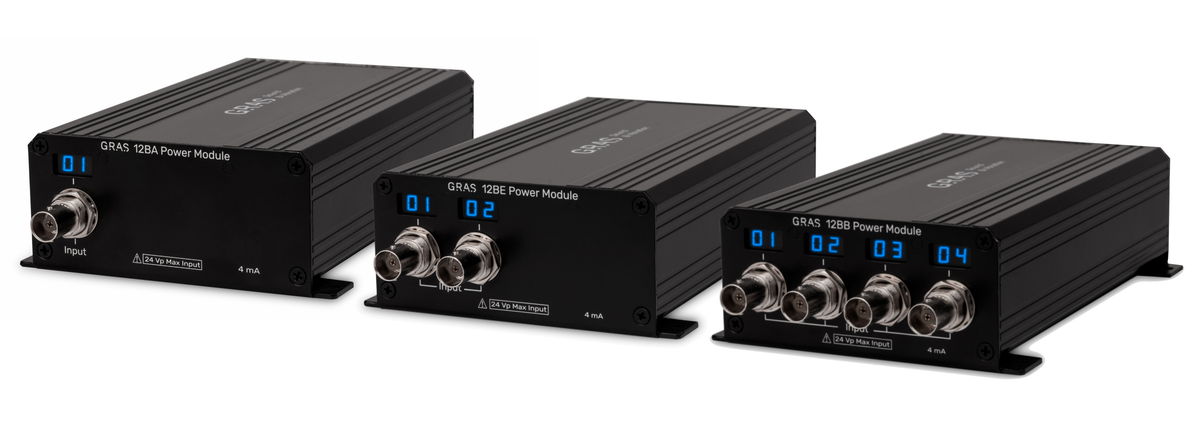

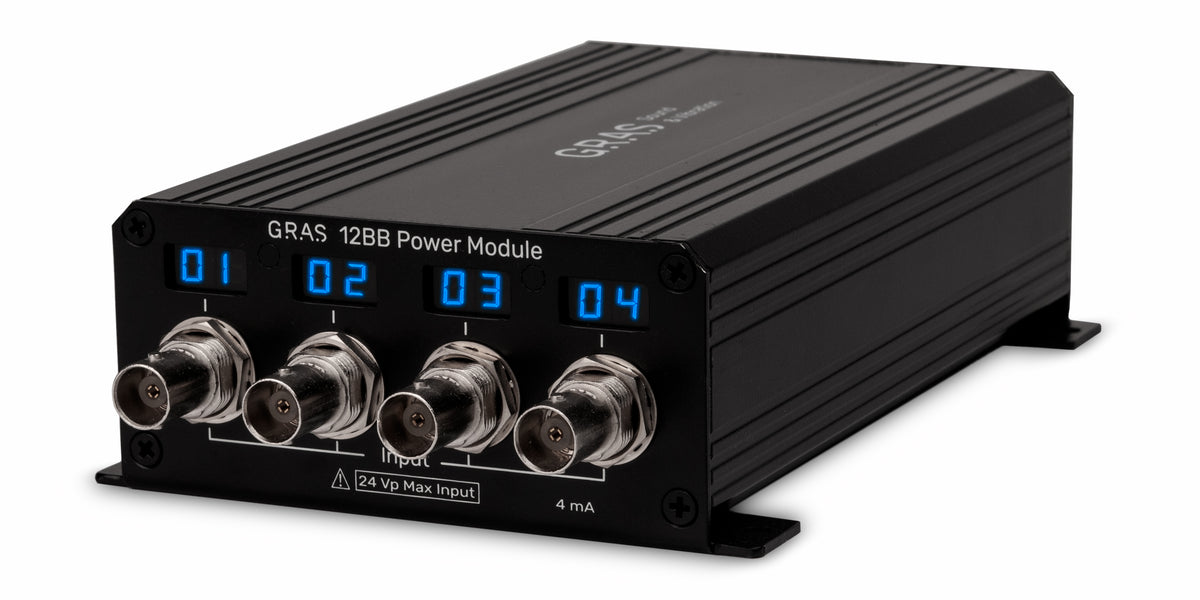

12BA, 12BE and 12BB are 1-, 2- and 4-channel CCP power modules, respectively. They have SysCheck2™ and TEDS support and are powered by USB.
The GRAS 12BA, 12BE and 12BB are, respectively, single- two- and four-channel USB-powered CCP power modules with TEDS support, and they are able to take full advantage of GRAS SysCheck2™ -enabled microphones, such as GRAS 246AE .
These power modules provide power to microphone sets without signal degradation, gain modification, or attenuation.
Key Specifications
| Frequency response (±0.06 dB) (with 100 kΩ load) | 10 to 20 Hz |
| Frequency response (±0.03 dB) (with 100 kΩ load) | 20 Hz to 200 kHz |
| Inherent noise, input shortet, 10 Hz - 20kHz | 2 µVrms |
| Overload indication | No |
| Temperature range, operation | 0 to +45 °C / 32 to 113 °F |
| Temperature range, storage | -40 to +75 °C / -40 to 167 °F |
| Humidity (non-condensing) | max. 90 % |
| Dimension including mounting ears (WxHxD) | 108 x 44.2 x 178.3 mm / 4.35 x 1.74 x 7.02" |
| Channels, 12BA | 1 |
| Channels, 12BE | 2 |
| Channels, 12BB | 4 |
| CCP preamplifier supply @ +24 V | 4 mA |
| Max input Voltage | 24 Vp |
| USB | C |
| USB Power + 5 Vdc | 0.5 A |
| Weight 12BA, 1 Ch | 397 g / 14.0 oz |
| Weight 12BE, 2 Ch | 425 g / 18.0 oz |
| Weight 12BB, 4 Ch | 494 g / 15.3 oz |
Specifications from the official GRAS product sheet. Please refer to the attached datasheet for full details.
