GP10 / GP20

Key Features

Touch-screen paperless recorder, SD card storage
GP10 up to 100 channels; GP20-2 up to 450 analog channels
DC voltage, thermocouple, RTD, DI and mA on each channel
Ethernet with email, web monitoring, FTP and Modbus
Future pen, freehand messages, and report output

Model GP10 GP20-1 GP20-2

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

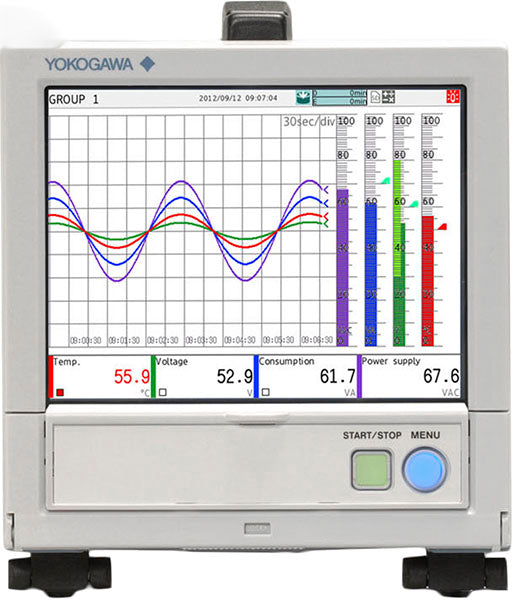

Portable paperless recorders with a touch screen. Measured data is shown live and saved to an SD card. Inputs and outputs are modular, and expandable I/O or a GM sub unit can be placed away from the main unit.

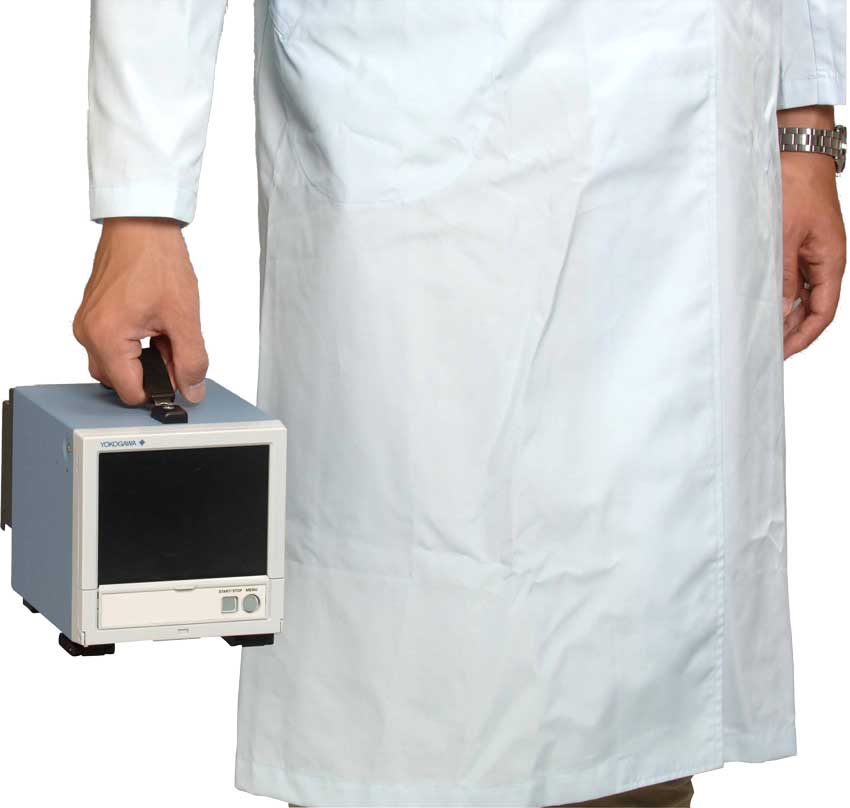

GP10 is the smaller chassis, up to 100 analog channels with expansion. GP20-1 is the standard 12.1-inch model, up to 100 channels. GP20-2 is the large-memory model, up to 450 analog channels and 500 I/O channels.

Models & Specifications

Common Specifications

Specification	Value
Storage	SD card (SD/SDHC, up to 32 GB), FAT32 or FAT16
Inputs	DC voltage, thermocouple, RTD, DI (TTL or contact), mA
Expansion	Up to 6 expandable I/O or GM sub units
Network	Ethernet, email, FTP, web server, Modbus/TCP
Display gestures	Flick, pinch, historical trend and future pen

Model Comparison

Specification	GP10	GP20-1	GP20-2
Type	Standard	Standard	Large memory
Display	5.7-inch TFT, 640 × 480	12.1-inch TFT, 800 × 600	12.1-inch TFT, 800 × 600
Analog inputs, main unit	0 to 30	0 to 100	0 to 100
Analog inputs with expansion	Up to 100	Up to 100	Up to 450
Max. I/O channels	100	100	500
Internal memory	500 MB	500 MB	1.2 GB
Module slots	3	10	10
Trend groups	30	50	60
Dimensions	144 × 168 × 248 mm	288 × 318 × 248 mm	288 × 318 × 248 mm
Weight	Approx. 1.9 kg, modules excluded	Approx. 5.4 kg, modules excluded	Approx. 5.4 kg, modules excluded
