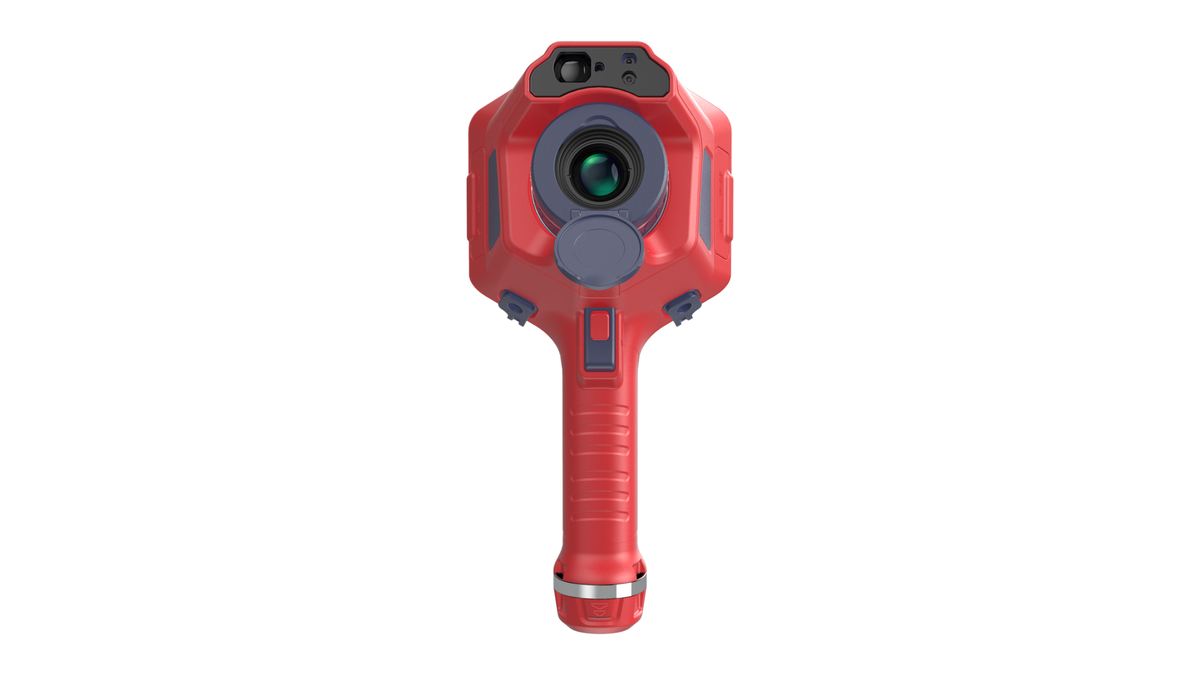

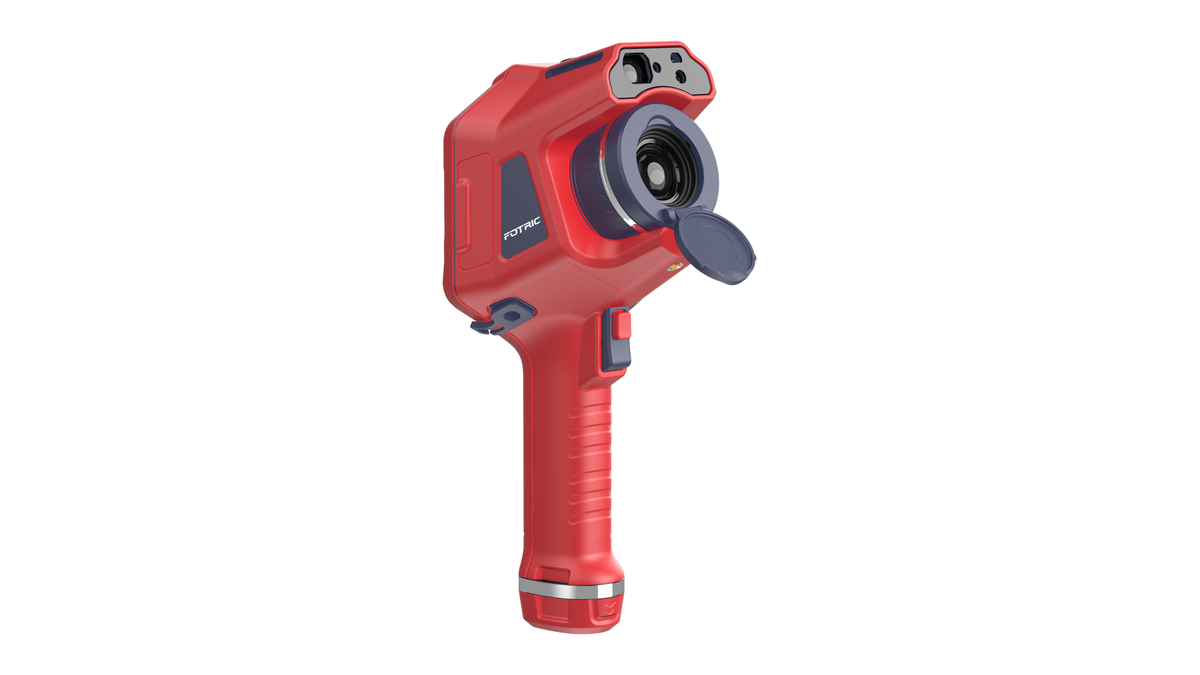

V Series Professional Thermal Camera
The FOTRIC V-series is an advanced industrial thermal camera, designed for professionals to improve maintenance efficiency in the electric, oil and gas, and manufacturing industries. Its up to 640 × 480 IR resolution and 30 mK NETD enable superior imaging on a 5-inch LCD touch screen. Other advanced features like laser-assisted autofocus, interchangeable lens options and powerful AnalyzIR report software all boost operational performance, making it an ideal tool for site inspections.
Key Features
- IR resolution up to 640 × 480, thermal sensitivity 30 mK
- Temperature range up to -20 ~ 1550 ℃
- IFOV down to 0.19 mrad (with 7° lens)
- TurboFocus® system for continuous, laser-assisted and thermal-contrast AF, plus manual focus
- Interchangeable wide-angle, standard, telephoto and ultra-telephoto lenses
- Programmable AI quick-access button; complimentary Face Detection feature
- AI-powered NaviPdM® inspection assistant with Delta-T diagnostics and routing inspections
- TWB (thermal white balance) and IREdge imaging algorithms
- 5-inch LCD touch screen, 13 MP industrial digital camera, Micro SD expandable up to 1 TB
- IRExplorer remote access and AnalyzIR analysis & reporting software
Models
| Model | IR Resolution | Thermal Sensitivity (NETD) | Standard Lens FOV / IFOV | Temperature Range | Accuracy |
|---|---|---|---|---|---|

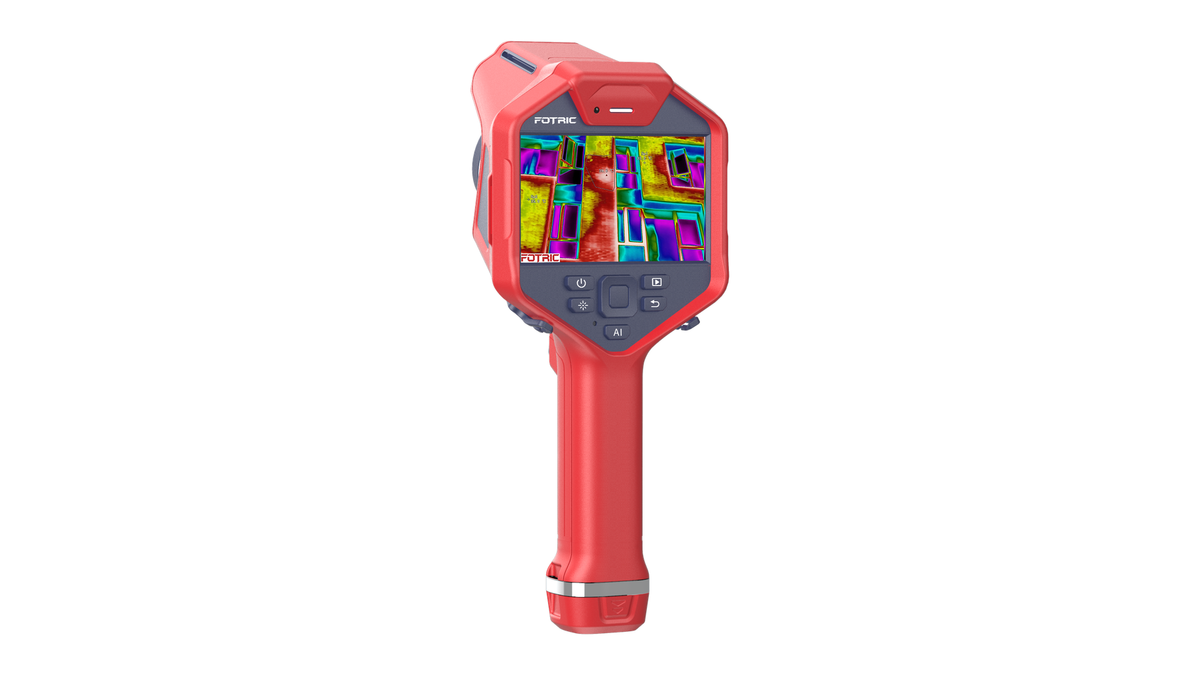

| V5 | 384 × 288 | 30 mK (0.03 ℃) @30 ℃ | 25° × 19° / 1.14 mrad | -20 ~ 120 ℃, 0 ~ 650 ℃, 300 ~ 1550 ℃ | ±2 ℃ or ±2 % |

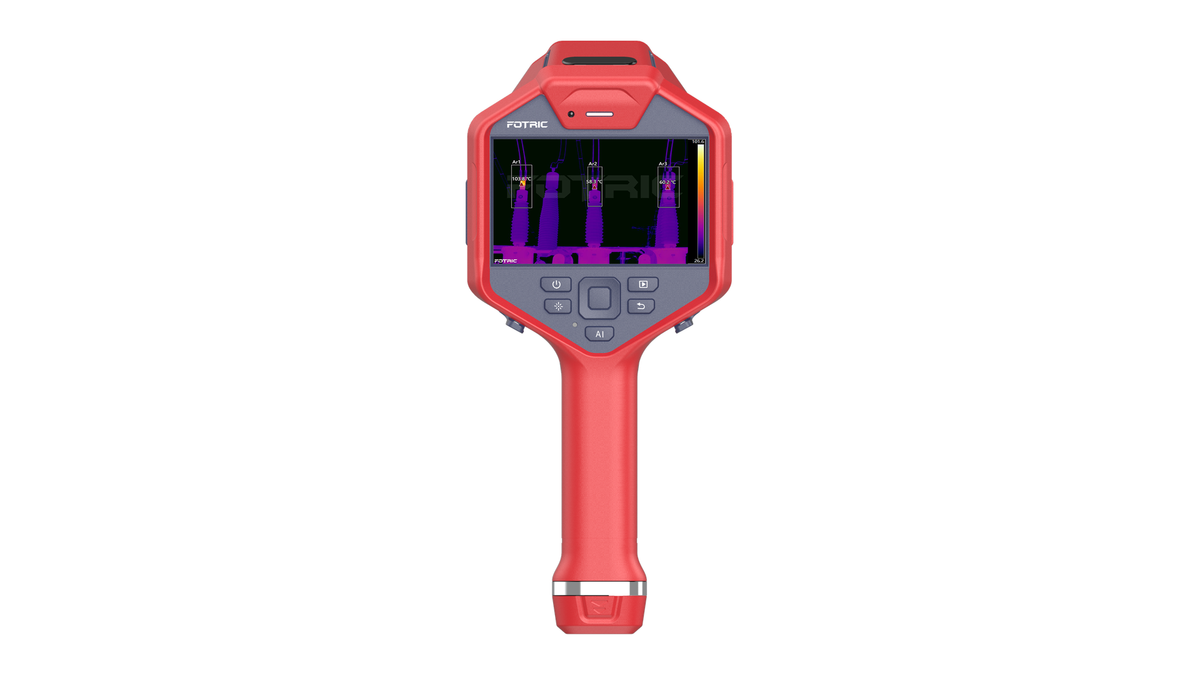

| V7 | 640 × 480 | 30 mK (0.03 ℃) @30 ℃ | 25° × 19° / 0.68 mrad | -20 ~ 120 ℃, 0 ~ 650 ℃, 300 ~ 1550 ℃ | ±2 ℃ or ±2 % |
Datasheets for the V7 and V5 are available on request.
