P-MiX Series AcouTherm Camera
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

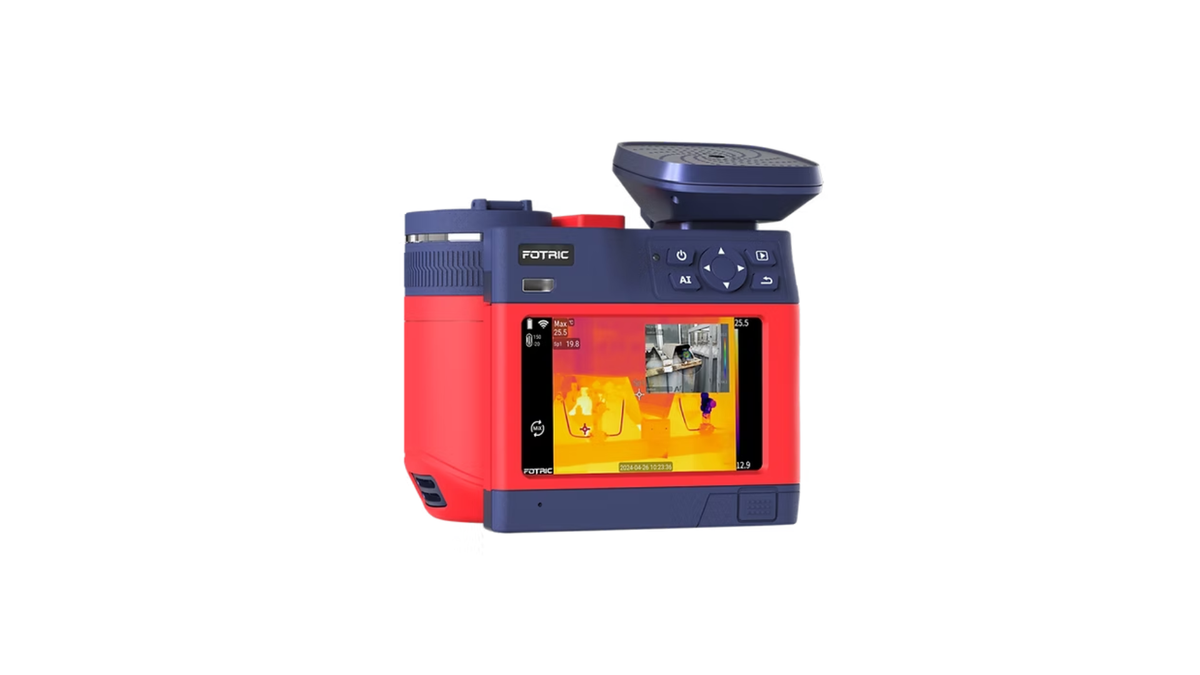

P-MiX Series AcouTherm Camera
The FOTRIC P-MiX AcouTherm Camera is a fusion of a professional thermal camera and an advanced acoustic camera, providing precise temperature measurement, high-definition imaging and evaluation of leaks and partial discharges in one device. With top-notch hardware components sourced from global leaders, the P-MiX ensures unparalleled accuracy, efficiency and reliability for industrial inspections and predictive maintenance.
MiX mode introduces a novel diagnostic approach: the 5-inch screen displays real-time thermal and acoustic images simultaneously, so the thermal distribution and acoustic patterns of the device under test can be analysed together from multiple perspectives. The rotatable infrared lens barrel and acoustic microphone array let you reach tight corners and awkward angles safely.
Key Features
- Three adjustable modes: IR, AC (acoustic) and MiX
- IR resolution up to 640 × 480, thermal sensitivity <30 mK
- Up to 162 MEMS digital microphones; 66° × 52° acoustic FOV; 2–100 kHz; 0.3–100 m working distance
- Detects partial discharge, gas / compressed-air leaks, noise and vibration
- TurboFocus® system: thermal-contrast, laser-assisted, continuous and touch AF, plus manual
- AI-based MagicThermal® auto-recognition and contour mark-up; T-DEF®, T-TWB® and IREdge®
- Single-view 46° / 25° / 12° / 7° and dual-view 25°&12° / 25°&7° lenses
- AI-powered NaviPdM® inspection assistant and AnalyzIR® reporting software
- 5-inch 1280 × 720 IPS touchscreen with Gorilla anti-explosion glass; hot-swappable SD up to 1 TB
Models
| Model | IR Resolution | Thermal Sensitivity (NETD) | IFOV (25° lens) | Microphones | Acoustic FOV | Temperature Range | Accuracy |
|---|---|---|---|---|---|---|---|
| P5MiX | 384 × 288 | <40 mK @30 ℃ | 1.14 mrad | 140 MEMS | 66° × 52° | -20 ~ 650 ℃ (extendable to 1550 ℃) | ±2 ℃ or ±2 % |
| P7MiX | 640 × 480 | <30 mK @30 ℃ | 0.68 mrad | 162 MEMS | 66° × 52° | -20 ~ 650 ℃ (extendable to 2000 ℃) | ±1 ℃ or ±1 % (0–100 ℃) |
The attached datasheet is the official FOTRIC P-MiX catalog covering the P7MiX and P5MiX.
