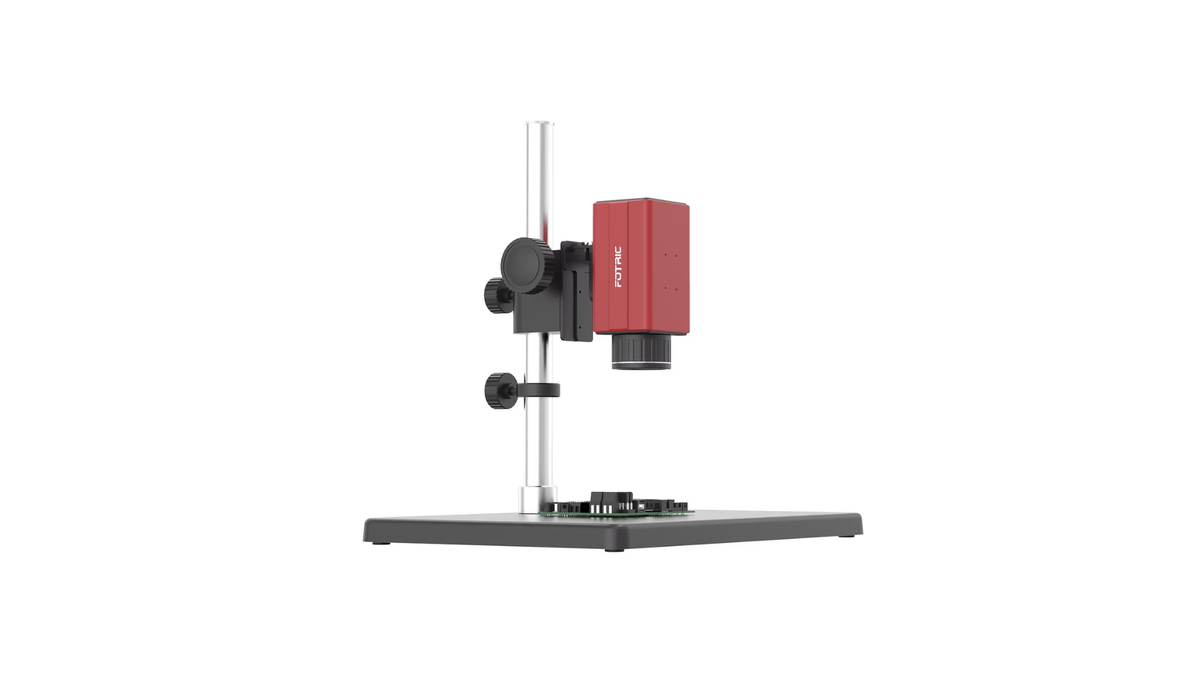

220Link Series R&D Thermal Camera
FOTRIC R&D thermal cameras are the preferred choice of professors and scientists from 500+ universities and research institutes worldwide, utilized in research experiments and featured in publications in top SCI journals.
The FOTRIC 220Link series is designed for education and research applications, with a simple and elegant design that makes operation intuitive and efficient. The camera can be used with its standard lens for a comprehensive overview, or with optional macro lenses (down to 20 μm image pixel size) to obtain the temperature distribution and detailed data of microstructures such as chips. A dedicated R&D test platform lets researchers observe and analyse in a flexible, fine and stable manner, and the AnalyzIR professional software matches the camera for real-time display, recording and analysis.
Key Features
- IR resolution up to 640 × 480 – a thermal map of over 300,000 temperature points
- Thermal sensitivity down to <0.03 ℃ @30 ℃ (30 mK)
- Optional macro lenses: 20 μm, 34 μm, 50 μm and 100 μm image pixel size
- Measurement accuracy ±2 ℃ or ±2 %
- R&D test platform for easy lifting, rotation and fixation; manual focus for fine thermogram acquisition
- AnalyzIR software: real-time full radiometric video, histogram, 3D temperature graph, temperature curves and batch reports
- 25 Hz radiometric stream, ONVIF, 10/100/1000M Ethernet, 12/24 V DC or PoE power
- RS-485 and alarm I/O with Modbus output for integration with external systems
- High EMC compatibility, IP40 aluminium-alloy housing
Models
| Model | IR Resolution | Thermal Sensitivity (NETD) | Standard Lens FOV | Optional Macro Lenses | Frame Rate | Temperature Range | Accuracy |
|---|---|---|---|---|---|---|---|
| 223Link | 160 × 120 | <60 mK (0.06 ℃) | — | 50 μm | 30 Hz | — | ±2 ℃ or ±2 % |
| 226Link | 384 × 288 | <50 mK (0.05 ℃) | 30° × 22° | M34 (34 μm), M100 (100 μm) | 60 Hz | -20 ~ 650 ℃ | ±2 ℃ or ±2 % |
| 228Link | 640 × 480 | <30 mK (0.03 ℃) | 29° × 22° | M20 (20 μm), M50 (50 μm) | 30 Hz | -20 ~ 650 ℃ | ±2 ℃ or ±2 % |
The attached datasheet is the official FOTRIC 220Link series catalog (covers 226Link and 228Link). 223Link specifications are from our previous listing; a 223Link datasheet is available on request.
