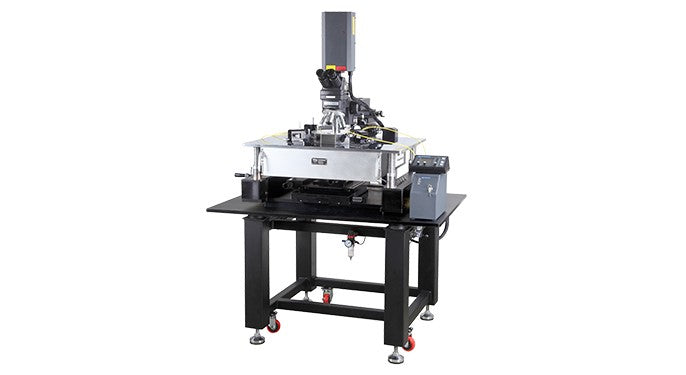

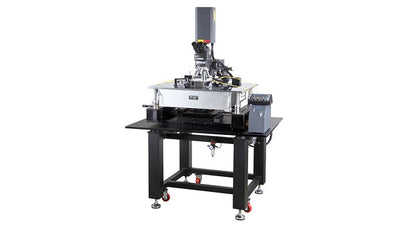

FA Series Failure Analysis Probe Station
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

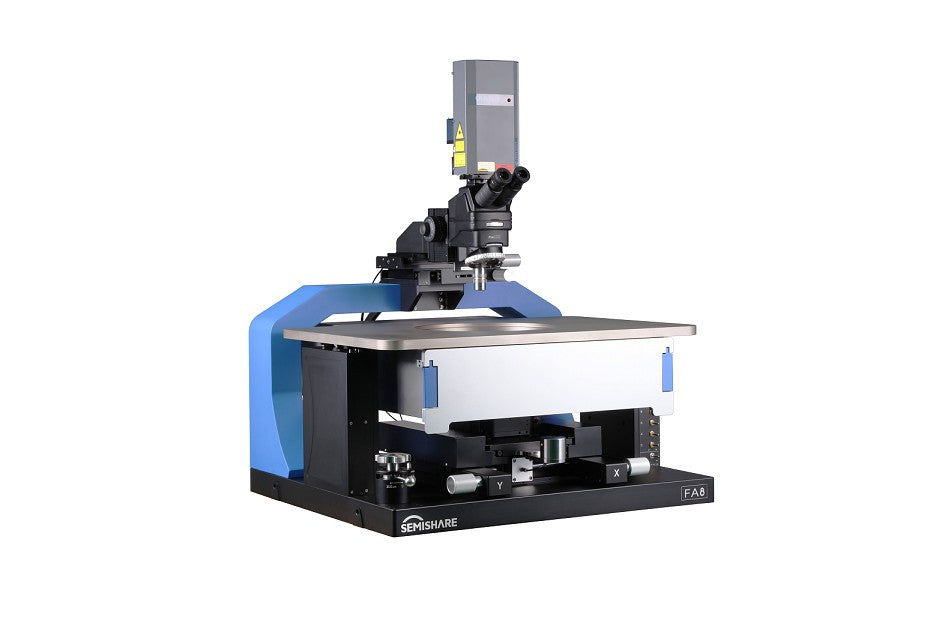

The FA series is a manual 8 inch station for a failure-analysis laboratory. FA8 is the open station. FA8-SC adds a −80 °C to 200 °C chuck and a quick-pull sample stage. An optional laser, at 1064, 532, 355 or 266 nm, cuts or clears metal and ITO features down to 1 × 1 µm with a 100X lens.
Key Features
- 8 inch chuck, 360° rotation, 1 µm movement
- U platen for 10 micropositioners, or an O platen for 12 on FA8-SC
- Microscope 20X to 4000X
- Laser micromachining of Cr, Al, ITO, Ni, TFT, poly and similar films
- Coaxial leakage 1 pA/V, triaxial 100 fA/V, at 25 °C
- High-voltage and high-current kit is an option
Specifications
| Specification | FA8 | FA8-SC |
|---|---|---|
| Wafer | 8 inch, 360° rotation | 8 inch, 360° rotation |
| Size (L × W × H) | 960 × 850 × 1500 mm | 880 × 860 × 1550 mm |
| Weight | About 260 kg | About 280 kg |
| Power | 220 V, 50–60 Hz | 220 V, 50–60 Hz |
| XY travel / resolution | 8 × 8 inch / 1 µm | 8 × 8 inch / 1 µm |
| Temperature | Room temperature | −80 °C to 200 °C |
| Quick stage pull-out | No | Yes |
| Platen | U shape, up to 10 positioners | O shape, up to 12 positioners |
| Microscope travel | XY 2 × 2 inch, Z 50.8 mm | XY 1 × 1 inch, Z 50.8 mm |
| Magnification | 20X to 4000X | 20X to 4000X |
| Laser wavelength | 1064 / 532 / 355 / 266 nm | 1064 / 532 / 355 / 266 nm |
| Laser output | 2.2 mJ/pulse, upgradeable | 2.2 mJ/pulse, upgradeable |
| Smallest laser cut | 1 × 1 µm with a 100X lens | 1 × 1 µm with a 100X lens |
| Leakage | 1 pA/V coaxial, 100 fA/V triaxial | 1 pA/V coaxial, 100 fA/V triaxial |
Official product pages do not publish a downloadable datasheet. Contact us for the configuration and a quotation.
