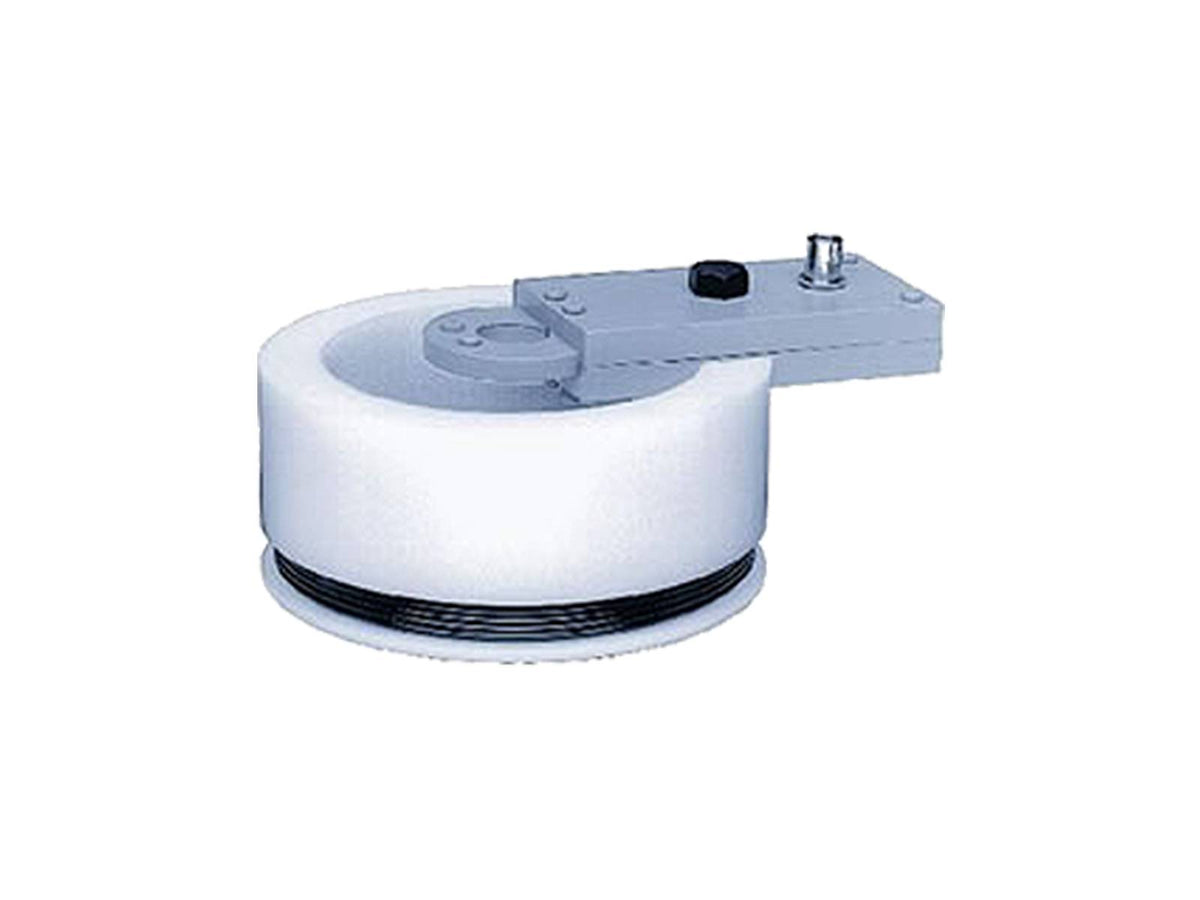

The Model 7605 Radiating Loop is precision-built to the exact specifications as described in MIL-STD 461G for Method RS101, and is used as part of a system to verify the ability of an EUT to withstand radiating magnetic fields. The 7605 is a 20-turn coil of AWG-12 enamel-insulated copper wire and features a 5 cm spacing from the top of the loop to the center-point of the coils as per MIL-STD 462D.

The model 7605 is now the recommended antenna for ISO 11452-8 Road vehicles – Component test methods for electrical disturbances for narrowband radiated electromagnetic energy – Part 8: Immunity to magnetic fields. It produces a magnetic flux density of 9.5x10^7 pT/A, or 160 dB(pT/A), on axis at a distance of 5 cm from its center.

The 7605 is used together with the Model 7606B Sensing Loop, which calibrates the 7605 and the other instrumentation used in the test.
