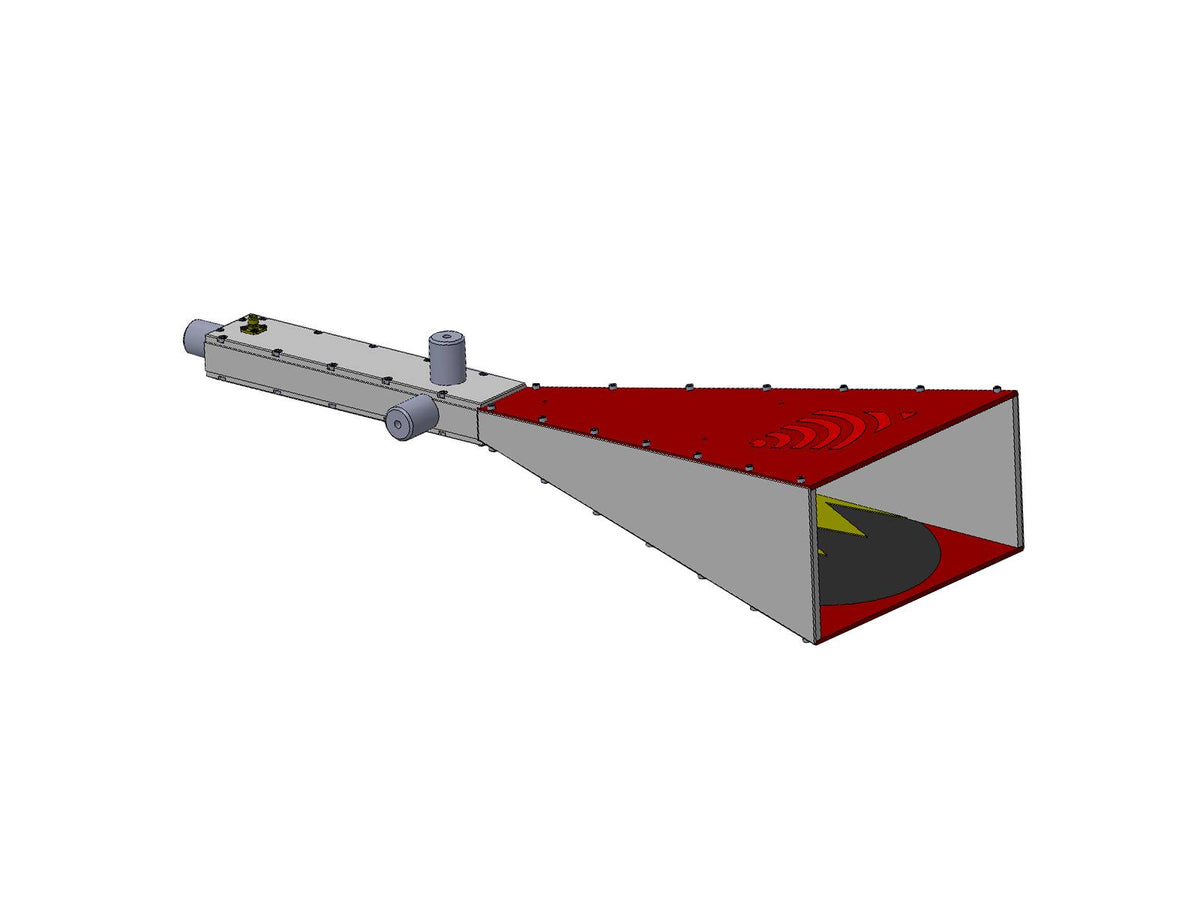

3166 TEM Horn Antenna

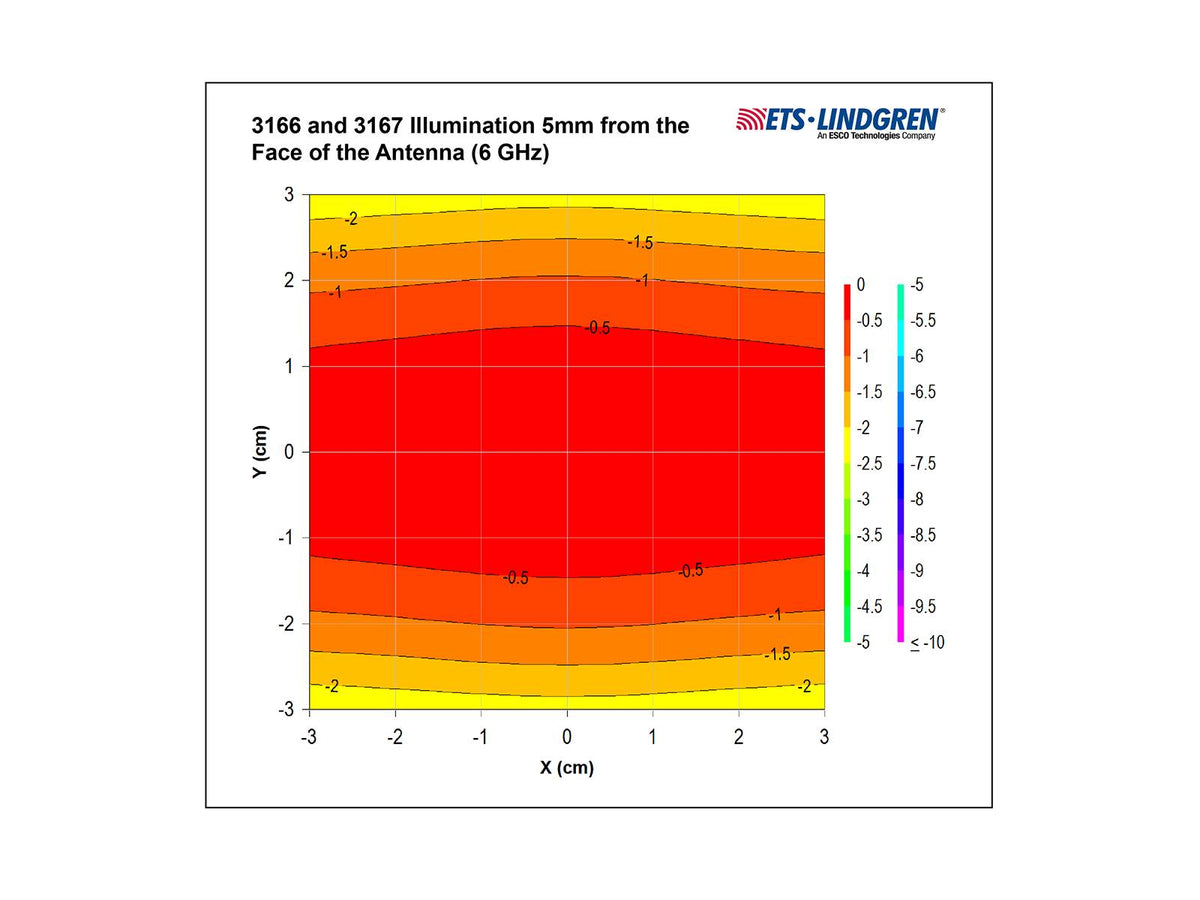

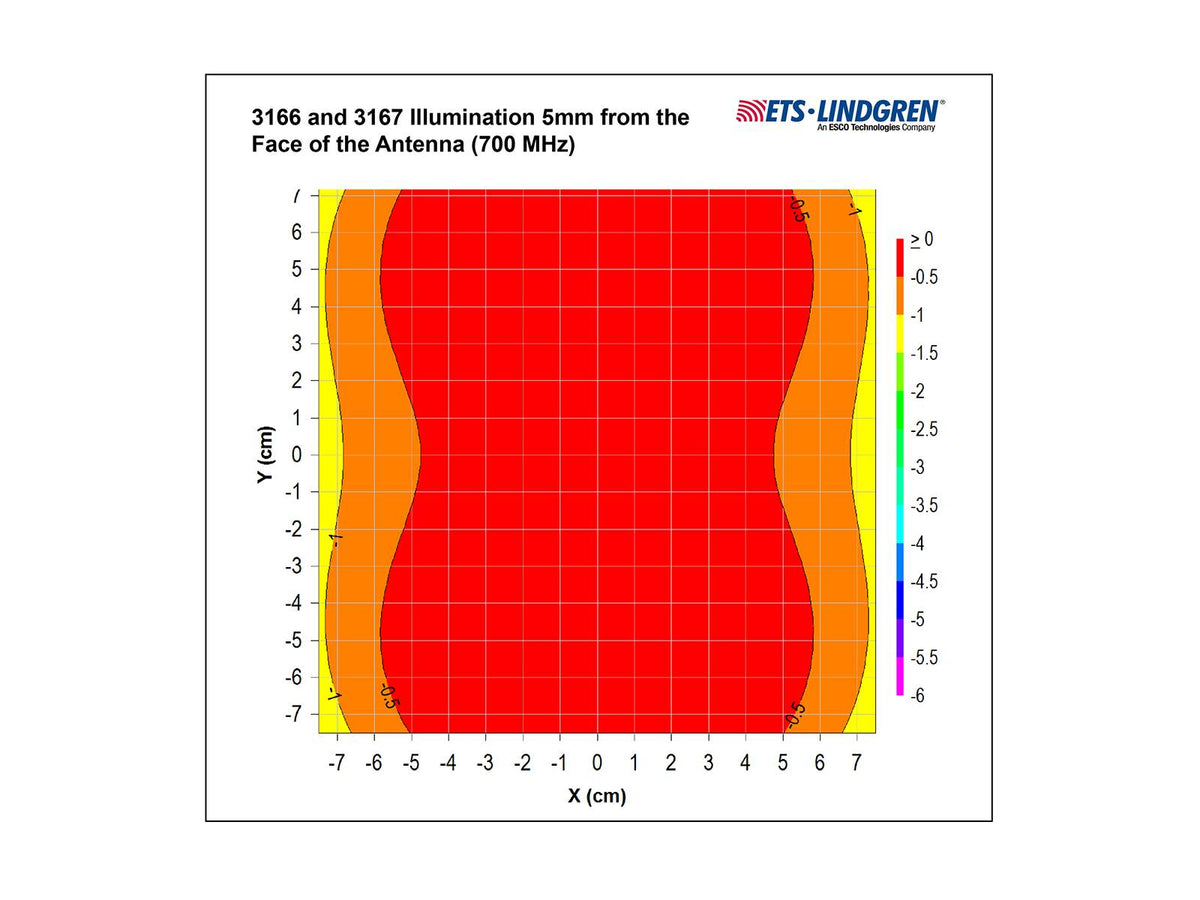

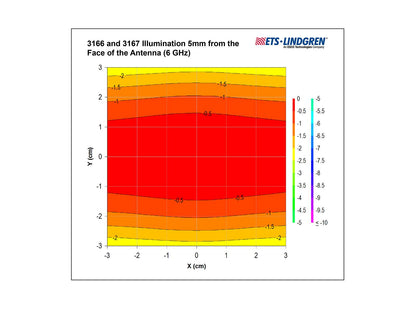

The Model 3166 and 3167 TEM Horn Antennas generate homogenous fields in the frequency range 380 MHz to 6 GHz specifically for immunity testing in close proximity as per the IEC/EN 61000-4-39 standard.
The 3166 model operates from 380 MHz to 3 GHz with less than 7:1 VSWR from 400 MHz to 700 MHz and 3:1 VSWR from 700 MHz and above. Maximum continuous power is 250 W via an N-type female connector.
Key Features
- Frequency Range: 380 MHz – 3 GHz
- Generates Homogenous Fields for Immunity Testing
- Close Proximity Immunity Testing
- IEC/EN 61000-4-39
- VSWR: 7:1 (400 MHz – 700 MHz), 3:1 (700 MHz – 3 GHz)
- Maximum Continuous Power: 250 W
- Connector: N Type, Female
- Dimensions: 21.6 × 47.6 × 13.2 cm, approx. 3.6 kg
