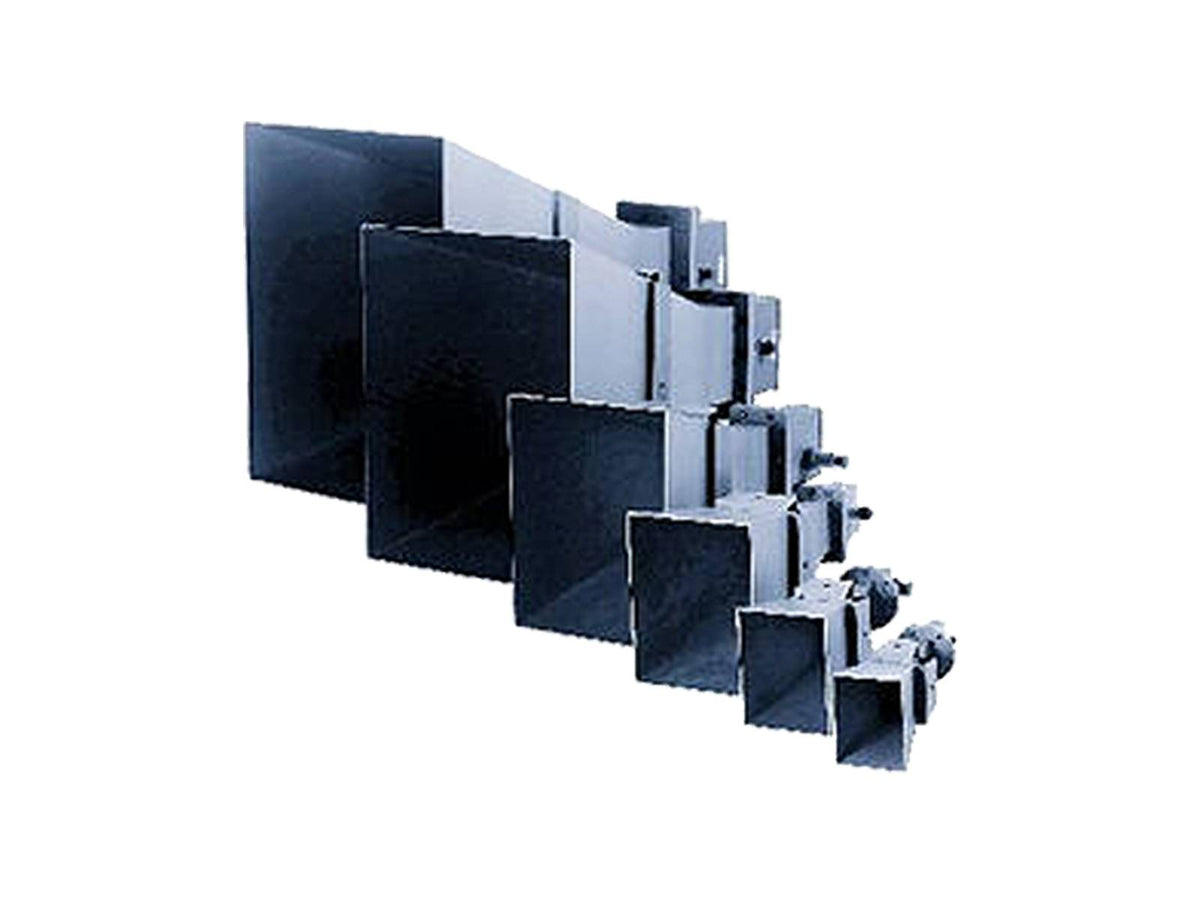

3161-03 Octave Horn Antenna
The Model 3161 Octave Horn Antenna Series are lineraly polarized, have medium gain, optimum half power beam width (equal in both horizontal and vertical planes), low VSWR, and cover a bandwidth of 1 GHz to 8 GHz.
Model 3161-03 covers 4 GHz – 8 GHz (WR-159 waveguide, Type N female connector), with a typical gain of 17.5 dBi, antenna factor of 28.3 dB(1/m), maximum continuous power of 250 W and typical field strength of 500 V/m.
Key Features
- Frequency Range: 4 GHz – 8 GHz
- Constant Antenna Factor Over Frequency
- Complete with Feed, Waveguide, Mount
- Increased Power Dissipation
- Optimal Beam Width
- Low VSWR
- Gain: 17.5 dBi
- Antenna Factor: 28.3 dB(1/m)
- Maximum Continuous Power: 250 W
- Typical Field Strength: 500 V/m
- Waveguide: WR-159, Type N Female Connector
