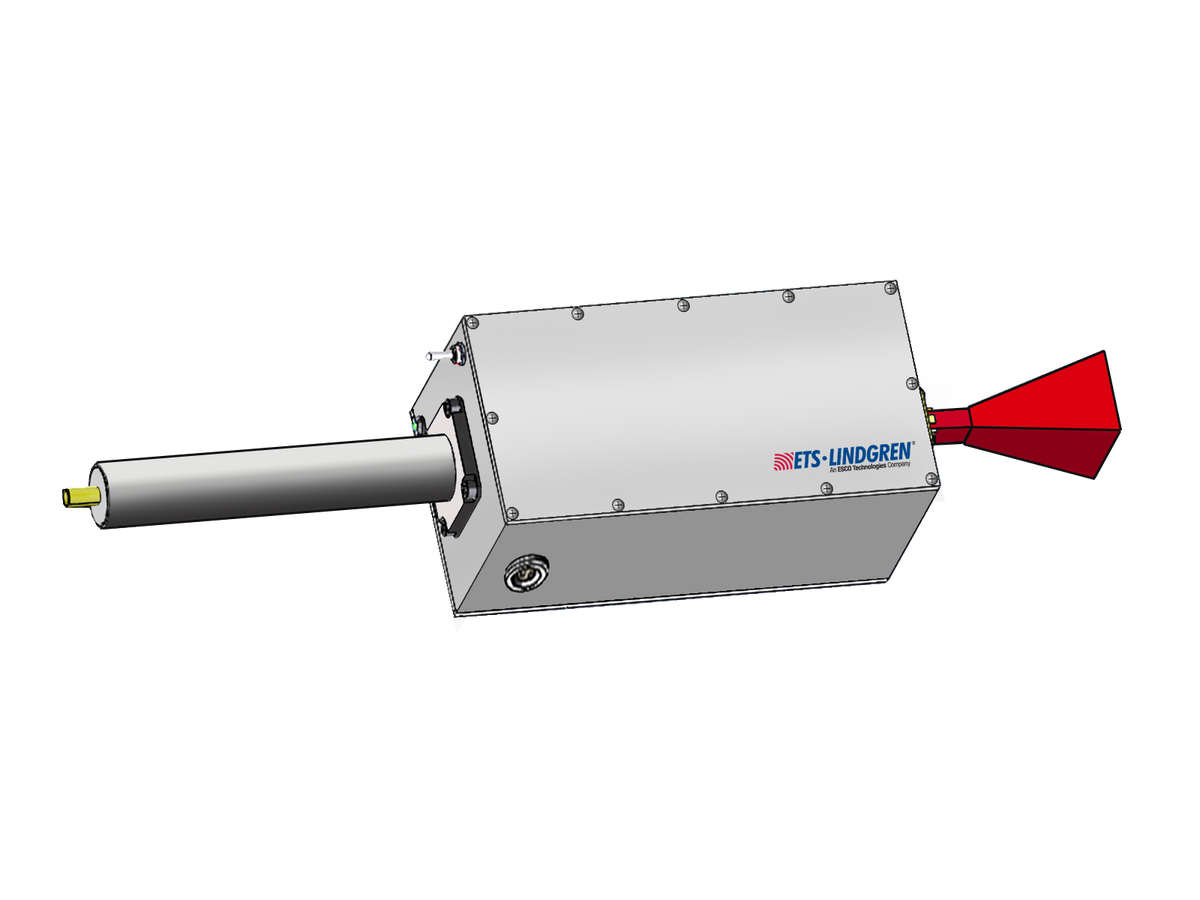

3160-09PA Rectangular Waveguide Horn Antenna with Pre-Amplifier

Product Features

  • Frequency range: 18 GHz – 26.5 GHz
  • Ideal as a Receive Antenna for Emissions Testing from 18 GHz to 26.5 GHz
  • Maintains Single Lobe Radiation
  • Provides Low AF That is Less Than 6 dB (1/m) Typical for the Entire Frequency Range
  • Calibrated as a Single Unit with the Pre-Amplifier
  • Official ETS-Lindgren product
  • Enquire for quotation and configuration
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

3160-09PA Rectangular Waveguide Horn Antenna with Pre-Amplifier

The Model 3160-09PA Rectangular Waveguide Horn Antenna with Pre-Amplifier (114514) is a special version of our popular model 3160-09 Rectangular Waveguide Horn Antenna, fitted with a pre-amplifier package and calibrated as a single unit. By doing this, any possible mismatches between antenna and pre-amplifier are taken into account in the antenna factor (AF), which is provided with this unit. The antenna is ideal as a receive antenna for emissions testing for 18 GHz – 26.5 GHz.

Key Features

  • Frequency Range: 18 GHz – 26.5 GHz
  • Ideal as a Receive Antenna for Emissions Testing from 18 GHz to 26.5 GHz
  • Maintains Single Lobe Radiation
  • Provides Low AF That is Less Than 6 dB (1/m) Typical for the Entire Frequency Range
  • Calibrated as a Single Unit with the Pre-Amplifier
