PSI 9000 DT 40V-750V 320W-1.5kW

  • Programmable benchtop DC power supply, 320 W to 1500 W
  • Voltages 0–40 V up to 0–750 V, currents 0–4 A up to 0–60 A
  • Autoranging output stage with low-ripple output filter
  • Integrated function generator and internal resistance simulation (CV, CC, CP, CR)
  • 90–264 V AC input with active PFC, efficiency up to 92%
  • Colour touch panel; galvanically isolated USB, Ethernet and analog interfaces
  • SCPI and ModBus RTU; 40 V models SELV compliant
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

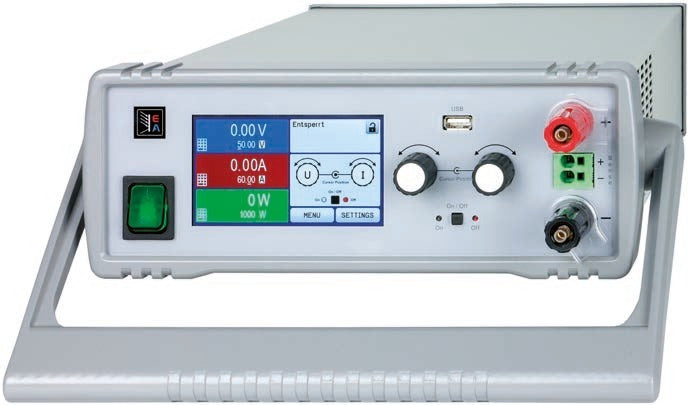

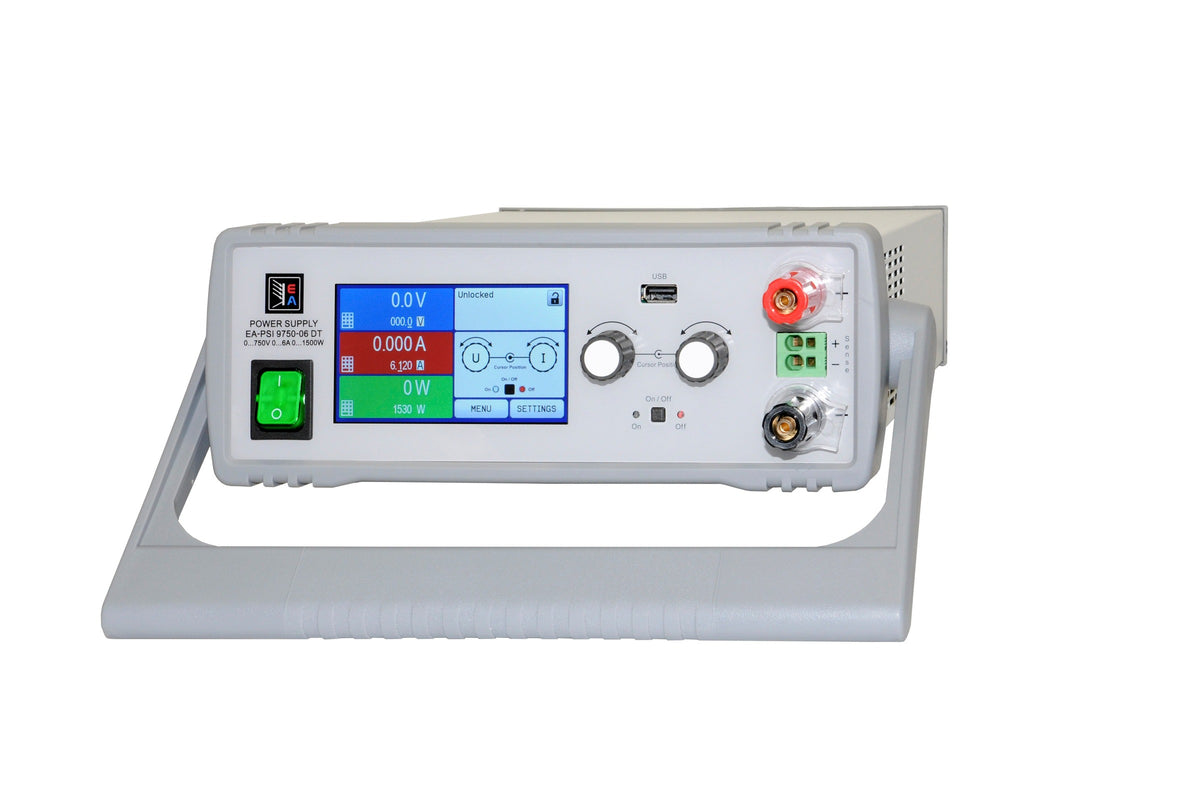

Programmable Benchtop DC Power Supply PSI 9000 DT Series

The PSI 9000 DT series are programmable desktop (benchtop) DC power supplies rated 320 W to 1500 W, with output voltages 0–40 V up to 0–750 V and currents 0–4 A up to 0–60 A. They combine an autoranging output stage and an extra output filter for low ripple with an intuitive colour touch panel, integrated function generator and internal-resistance simulation, in a compact enclosure with carrying handle and tilt stand. The wide 90–264 V AC input with active PFC allows worldwide use; USB, Ethernet and analog interfaces are galvanically isolated.

Models

Model Voltage Current Power Article no.
PSI 9040-20 DT 0–40 V 0–20 A 320 W 06200500
PSI 9080-10 DT 0–80 V 0–10 A 320 W 06200501
PSI 9200-04 DT 0–200 V 0–4 A 320 W 06200502
PSI 9040-40 DT 0–40 V 0–40 A 640 W 06200503
PSI 9080-20 DT 0–80 V 0–20 A 640 W 06200504
PSI 9200-10 DT 0–200 V 0–10 A 640 W 06200505
PSI 9080-40 DT 0–80 V 0–40 A 1 kW 06200506
PSI 9200-15 DT 0–200 V 0–15 A 1 kW 06200507
PSI 9360-10 DT 0–360 V 0–10 A 1 kW 06200508
PSI 9500-06 DT 0–500 V 0–6 A 1 kW 06200509
PSI 9750-04 DT 0–750 V 0–4 A 1 kW 06200510
PSI 9040-60 DT 0–40 V 0–60 A 1.5 kW 06200516
PSI 9080-60 DT 0–80 V 0–60 A 1.5 kW 06200511
PSI 9200-25 DT 0–200 V 0–25 A 1.5 kW 06200512
PSI 9360-15 DT 0–360 V 0–15 A 1.5 kW 06200513
PSI 9500-10 DT 0–500 V 0–10 A 1.5 kW 06200514
PSI 9750-06 DT 0–750 V 0–6 A 1.5 kW 06200515

EA Elektro-Automatik is part of Tektronix. Please contact us for a quotation and lead time.
