Programmable DC power supply, 30 kW per 4U unit
Voltages 0–60 V up to 0–2000 V, currents 0–40 A up to 0–1000 A
Autoranging output stage; CV, CC, CP and CR regulation with fast crossover
Integrated function generator with predefined curves; LV123 / LV124 / LV148 automotive tests and EN 50530 PV test mode
208 V or 380–480 V AC three-phase input (output derated to 18 kW at 208 V), active PFC typ. 0.99, efficiency up to 96%
5-inch colour TFT touch panel; SCPI and ModBus, LabVIEW and IVI drivers
USB, Ethernet, analog and USB host built in; optional CAN, CANopen, RS232, Profibus, Profinet, EtherCAT, ModBus TCP
Master-slave and Share-Bus parallel operation of up to 64 units of the 10000 series

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

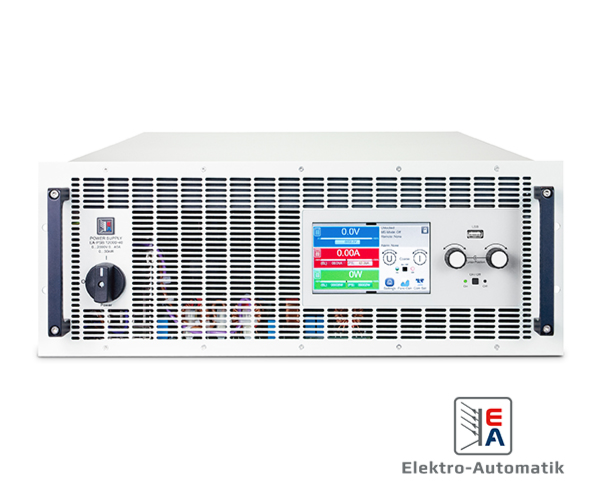

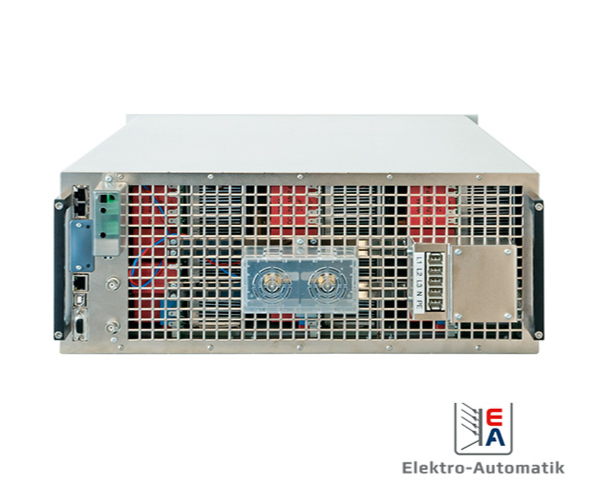

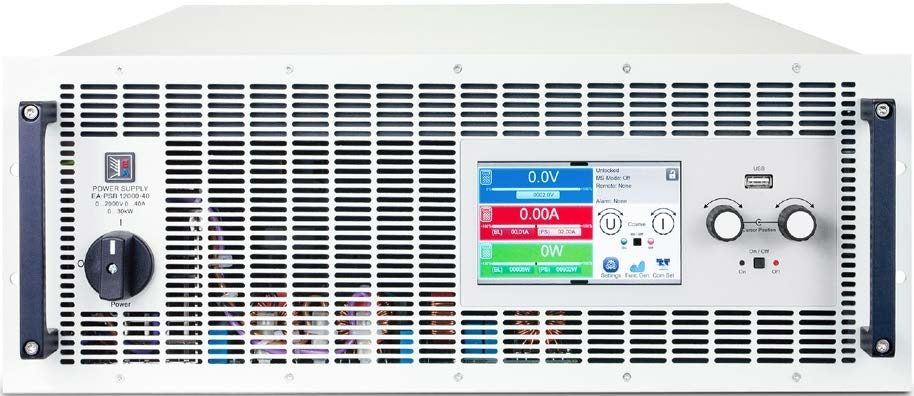

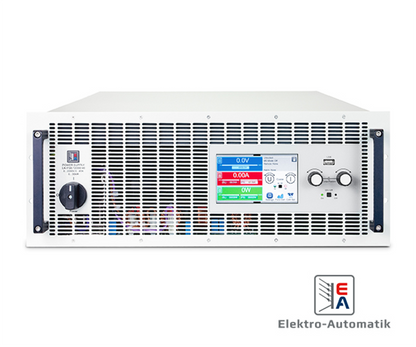

Programmable DC Power Supply PSI 10000 4U Series

The PSI 10000 4U series are high-performance programmable DC power supplies in a 19-inch 4U rack enclosure, delivering 30 kW per unit with output voltages 0–60 V up to 0–2000 V and currents 0–40 A up to 0–1000 A. A flexible autoranging output stage provides higher voltage at lower current, or higher current at lower voltage, so one unit covers a wide range of applications. The PSI adds an integrated function generator with predefined curves, automotive test routines (LV123, LV124, LV148) and a photovoltaics test mode (EN 50530) to the basic PS 10000 feature set, making it suited to automotive, renewable-energy, battery and industrial R&D and production testing.

Models

Model	Voltage	Current	Power
PSI 10060-1000	0–60 V	0–1000 A	30 kW
PSI 10080-1000	0–80 V	0–1000 A	30 kW
PSI 10200-420	0–200 V	0–420 A	30 kW
PSI 10360-240	0–360 V	0–240 A	30 kW
PSI 10500-180	0–500 V	0–180 A	30 kW
PSI 10750-120	0–750 V	0–120 A	30 kW
PSI 10920-125	0–920 V	0–125 A	30 kW
PSI 11000-80	0–1000 V	0–80 A	30 kW
PSI 11500-60	0–1500 V	0–60 A	30 kW
PSI 12000-40	0–2000 V	0–40 A	30 kW
