PSB 20000 Triple 60V-920V 15kW-30kW

  • 3 independent, isolated, bidirectional DC channels per unit
  • 15 kW (3U, 3 × 5 kW) or 30 kW (4U, 3 × 10 kW) per unit
  • Voltages 0–60 V up to 0–920 V, currents up to 340 A per channel
  • Regenerative sink mode with energy recovery, efficiency > 96%
  • 208–480 V AC ±10% three-phase input, active PFC typ. 0.99
  • USB, 1 Gbit Ethernet, EtherCAT, CAN FD, digital I/O and Share-Bus built in
  • EA Power Control and EA Battery Simulator software; optional water cooling
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

3-Channel Bidirectional DC Power Supply PSB 20000 Triple Series

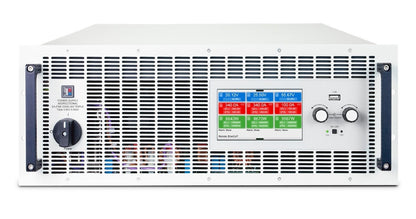

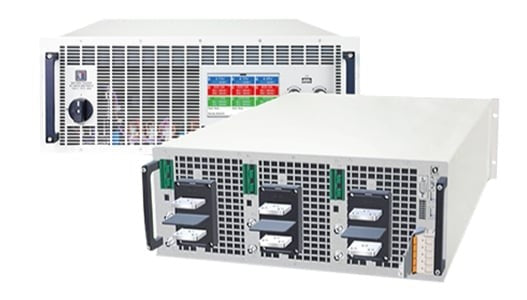

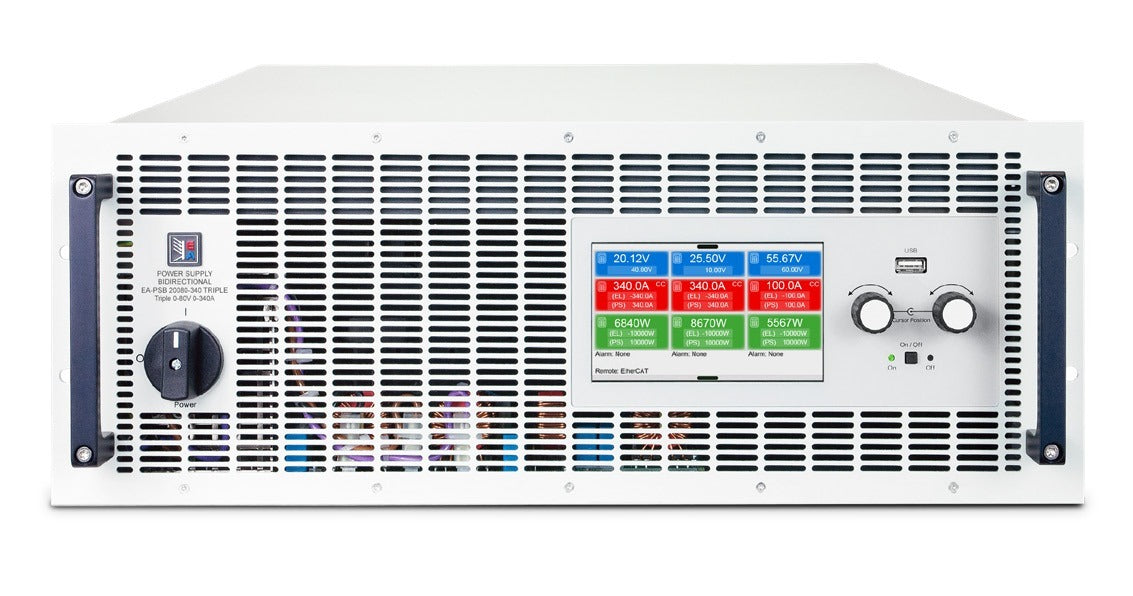

The PSB 20000 Triple is a compact, three-channel bidirectional programmable DC power supply. Each unit contains three independent, fully isolated, bidirectional autoranging DC stages, so different components such as motors, inverters and on-board chargers can be tested in parallel in one setup while saving more than 50% of rack space compared with single-output devices. The 3U version delivers 15 kW per unit (5 kW per channel) and the 4U version 30 kW per unit (up to 10 kW per channel), with 0–60 V up to 0–920 V and up to 340 A per channel. In sink mode, energy is returned to the grid with efficiency above 96%. Voltage and current in the model list are per channel; power is the total device power.

Models

Model Chassis Voltage per channel Current per channel Device power
PSB 20060-170 Triple 3U 0–60 V 0–170 A 15 kW
PSB 20080-170 Triple 3U 0–80 V 0–170 A 15 kW
PSB 20200-70 Triple 3U 0–200 V 0–70 A 15 kW
PSB 20360-40 Triple 3U 0–360 V 0–40 A 15 kW
PSB 20500-30 Triple 3U 0–500 V 0–30 A 15 kW
PSB 20920-20 Triple 3U 0–920 V 0–20 A 15 kW
PSB 20060-340 Triple 4U 0–60 V 0–340 A 30 kW
PSB 20080-340 Triple 4U 0–80 V 0–340 A 30 kW
PSB 20200-140 Triple 4U 0–200 V 0–140 A 30 kW
PSB 20360-80 Triple 4U 0–360 V 0–80 A 30 kW
PSB 20500-60 Triple 4U 0–500 V 0–60 A 30 kW
PSB 20920-40 Triple 4U 0–920 V 0–40 A 30 kW

EA Elektro-Automatik is part of Tektronix. Please contact us for a quotation and lead time.
