Bidirectional (source + regenerative sink) DC power supply, 10 kW to 30 kW per 4U unit
Voltages 0–10 V up to 0–2000 V, currents 0–40 A up to 0–1000 A
Energy recovery to the grid in sink mode, efficiency up to 96%
Autoranging; CV, CC, CP and CR regulation with fast crossover
Battery test mode, battery and fuel-cell simulation, PV test mode (EN 50530, MPPT)
Function generator; LV123 / LV124 / LV148 automotive tests
208 V or 380–480 V AC three-phase input (output derated to 18 kW at 208 V), active PFC typ. 0.99
USB, Ethernet, analog, USB host built in; optional CAN, CANopen, RS232, Profibus, Profinet, EtherCAT, ModBus TCP
Master-slave and Share-Bus parallel operation of up to 64 units of the 10000 series

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

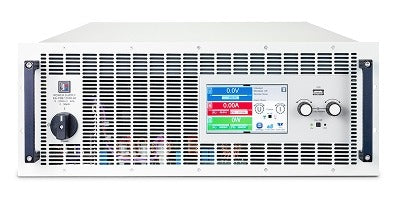

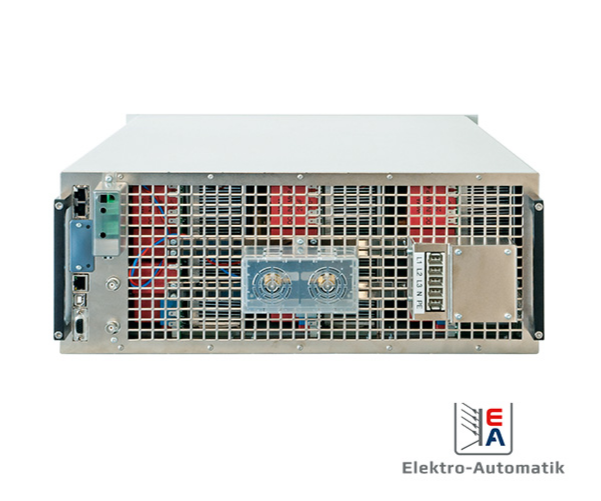

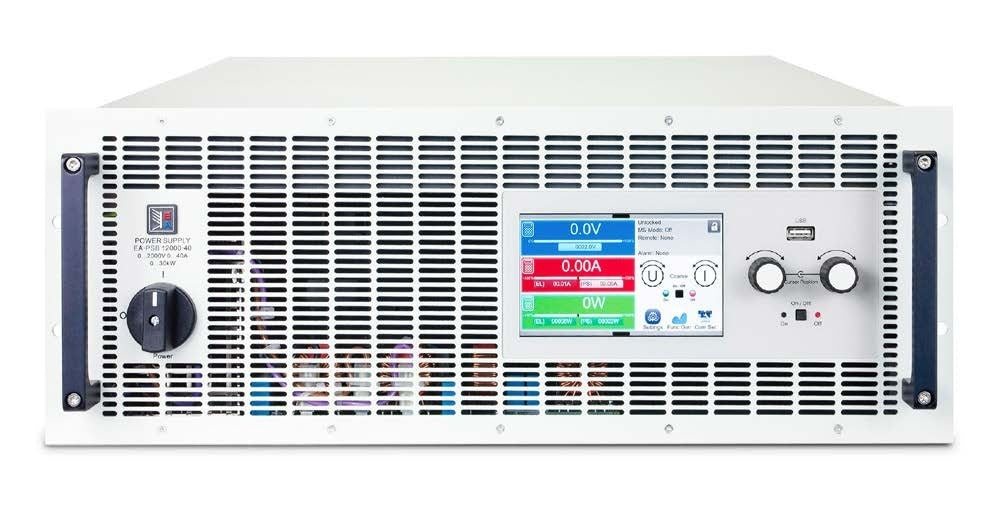

Bidirectional Regenerative DC Power Supply PSB 10000 4U Series

The PSB 10000 4U series are bidirectional programmable DC power supplies that combine a DC source and a regenerative electronic load in one 19-inch 4U unit, with 10 kW to 30 kW per unit, voltages 0–10 V up to 0–2000 V and currents 0–40 A up to 0–1000 A. They switch seamlessly between source and sink (two-quadrant operation) and, in sink mode, feed the absorbed energy back to the grid with efficiency up to 96%, cutting energy and cooling costs. Built-in battery test and battery/fuel-cell simulation, a PV test mode (EN 50530, MPPT), a function generator and automotive test routines make the PSB 10000 suited to battery, EV powertrain, on-board charger, DC-DC converter and inverter testing.

Models

Model	Voltage	Current	Power
PSB 10010-1000	0–10 V	0–1000 A	10 kW
PSB 10060-1000	0–60 V	0–1000 A	30 kW
PSB 10080-1000	0–80 V	0–1000 A	30 kW
PSB 10200-420	0–200 V	0–420 A	30 kW
PSB 10360-240	0–360 V	0–240 A	30 kW
PSB 10500-180	0–500 V	0–180 A	30 kW
PSB 10750-120	0–750 V	0–120 A	30 kW
PSB 10920-125	0–920 V	0–125 A	30 kW
PSB 11000-80	0–1000 V	0–80 A	30 kW
PSB 11500-60	0–1500 V	0–60 A	30 kW
PSB 12000-40	0–2000 V	0–40 A	30 kW
