PSB 10000 3U 60V-2000V 5kW-15kW

  • Bidirectional (source + regenerative sink) DC power supply, 5 kW to 15 kW per 3U unit
  • Voltages 0–60 V up to 0–2000 V, currents 0–20 A up to 0–510 A
  • Energy recovery to the grid in sink mode, efficiency up to 96%
  • Autoranging; CV, CC, CP and CR regulation with fast crossover
  • Battery test mode, battery and fuel-cell simulation, PV test mode (EN 50530, MPPT)
  • Function generator; LV123 / LV124 / LV148 automotive tests
  • 208 V or 380–480 V AC three-phase input, active PFC typ. 0.99
  • USB, Ethernet, analog, USB host built in; optional CAN, CANopen, RS232, Profibus, Profinet, EtherCAT, ModBus TCP
  • Master-slave and Share-Bus parallel operation of up to 64 units of the 10000 series
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

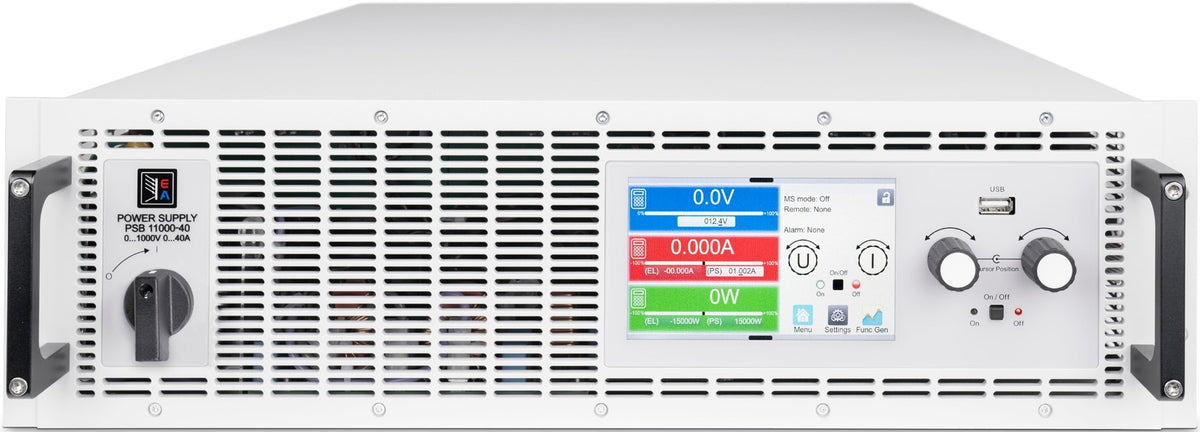

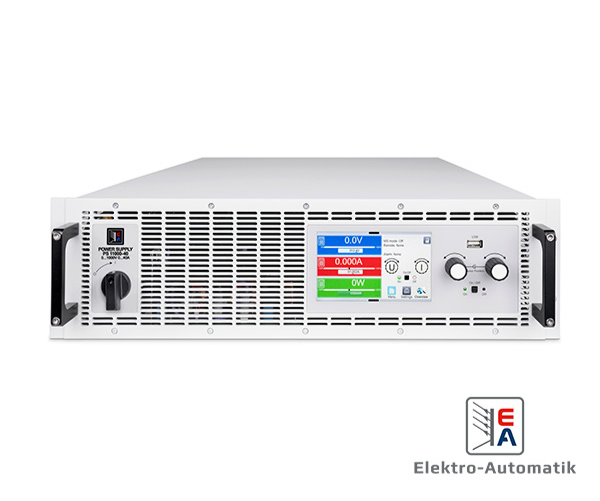

Bidirectional Regenerative DC Power Supply PSB 10000 3U Series

The PSB 10000 3U series are bidirectional programmable DC power supplies that combine a DC source and a regenerative electronic load in one 19-inch 3U unit, with 5 kW to 15 kW per unit, voltages 0–60 V up to 0–2000 V and currents 0–20 A up to 0–510 A. They switch seamlessly between source and sink (two-quadrant operation) and, in sink mode, feed the absorbed energy back to the grid with efficiency up to 96%, cutting energy and cooling costs. Built-in battery test and battery/fuel-cell simulation, a PV test mode (EN 50530, MPPT), a function generator and automotive test routines make the PSB 10000 suited to battery, EV powertrain, on-board charger, DC-DC converter and inverter testing. The 3U models listed here are the standard 208 V / 380–480 V AC versions; dedicated US208V models with their own article numbers are available on request.

Models

Model Voltage Current Power Article no.
PSB 10060-170 0–60 V 0–170 A 5 kW 30000737
PSB 10080-170 0–80 V 0–170 A 5 kW 30000738
PSB 10200-70 0–200 V 0–70 A 5 kW 30000739
PSB 10360-40 0–360 V 0–40 A 5 kW 30000740
PSB 10500-30 0–500 V 0–30 A 5 kW 30000741
PSB 10750-20 0–750 V 0–20 A 5 kW 30000742
PSB 10920-20 0–920 V 0–20 A 5 kW 30000768
PSB 10060-340 0–60 V 0–340 A 10 kW 30000744
PSB 10080-340 0–80 V 0–340 A 10 kW 30000745
PSB 10200-140 0–200 V 0–140 A 10 kW 30000746
PSB 10360-80 0–360 V 0–80 A 10 kW 30000747
PSB 10500-60 0–500 V 0–60 A 10 kW 30000748
PSB 10750-40 0–750 V 0–40 A 10 kW 30000749
PSB 10920-40 0–920 V 0–40 A 10 kW 30000769
PSB 11000-30 0–1000 V 0–30 A 10 kW 30000750
PSB 11500-20 0–1500 V 0–20 A 10 kW 30000751
PSB 10060-510 0–60 V 0–510 A 15 kW 30000700
PSB 10080-510 0–80 V 0–510 A 15 kW 30000701
PSB 10200-210 0–200 V 0–210 A 15 kW 30000702
PSB 10360-120 0–360 V 0–120 A 15 kW 30000703
PSB 10500-90 0–500 V 0–90 A 15 kW 30000704
PSB 10750-60 0–750 V 0–60 A 15 kW 30000705
PSB 10920-60 0–920 V 0–60 A 15 kW 30000770
PSB 11000-40 0–1000 V 0–40 A 15 kW 30000706
PSB 11500-30 0–1500 V 0–30 A 15 kW 30000707
PSB 12000-20 0–2000 V 0–20 A 15 kW 30000708

EA Elektro-Automatik is part of Tektronix. Please contact us for a quotation and lead time.
