Programmable DC power supply, 30 kW per 4U unit
Voltages 0–60 V up to 0–2000 V, currents 0–40 A up to 0–1000 A
Autoranging output stage; CV, CC, CP and CR regulation with fast crossover
Digital regulation with 16-bit ADCs/DACs and selectable control speed
208 V or 380–480 V AC three-phase input (output derated to 18 kW at 208 V), active PFC typ. 0.99, efficiency up to 96%
5-inch colour TFT touch panel; SCPI and ModBus, LabVIEW and IVI drivers
USB, Ethernet, analog and USB host built in; optional CAN, CANopen, RS232, Profibus, Profinet, EtherCAT, ModBus TCP
Master-slave and Share-Bus parallel operation of up to 64 units of the 10000 series

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

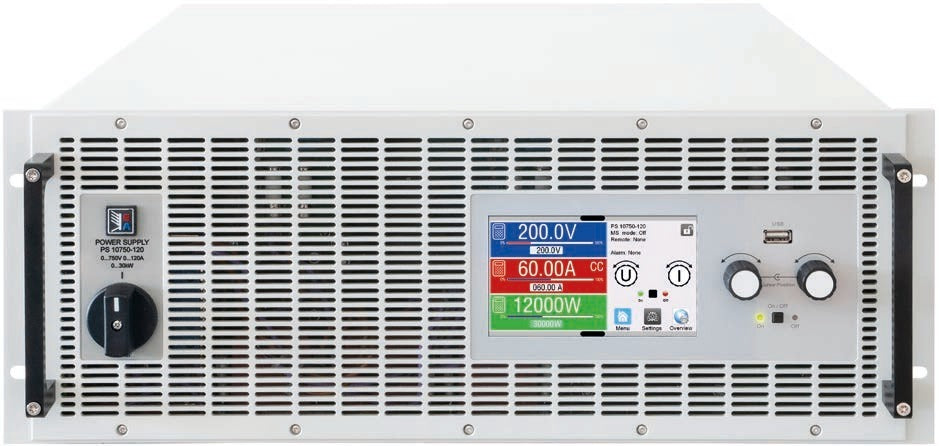

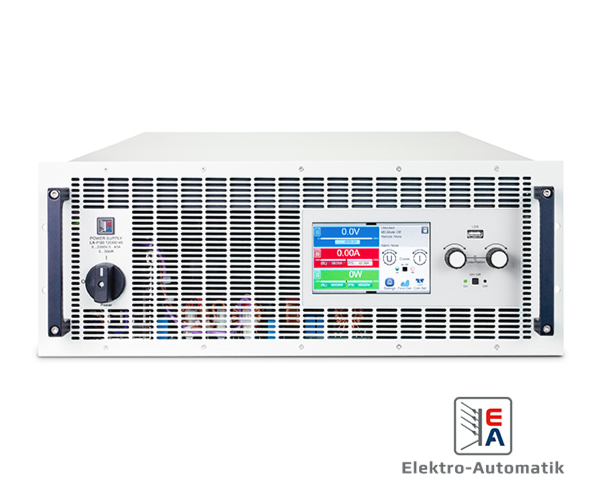

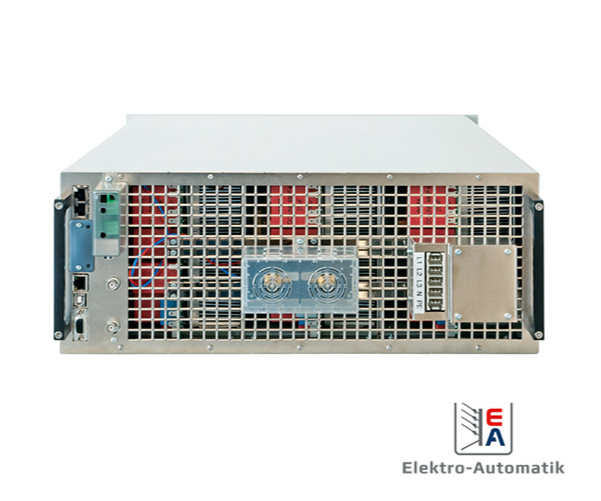

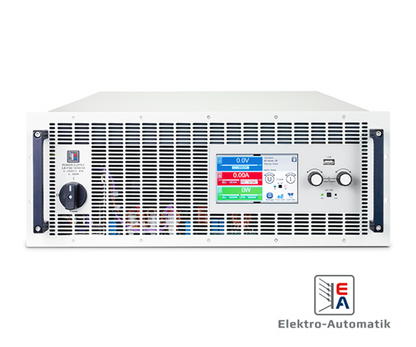

Programmable DC Power Supply PS 10000 4U Series

The PS 10000 4U series are programmable DC power supplies in a 19-inch 4U rack enclosure, delivering 30 kW per unit with output voltages 0–60 V up to 0–2000 V and currents 0–40 A up to 0–1000 A. They share the 10000-series autoranging power stage, high-resolution digital regulation and touch-panel control of the PSI 10000, but without the function generator, which makes them a cost-effective choice for system integration, burn-in and production test where a stable, accurate DC source is needed.

Models

Model	Voltage	Current	Power
PS 10060-1000	0–60 V	0–1000 A	30 kW
PS 10080-1000	0–80 V	0–1000 A	30 kW
PS 10200-420	0–200 V	0–420 A	30 kW
PS 10360-240	0–360 V	0–240 A	30 kW
PS 10500-180	0–500 V	0–180 A	30 kW
PS 10750-120	0–750 V	0–120 A	30 kW
PS 10920-125	0–920 V	0–125 A	30 kW
PS 11000-80	0–1000 V	0–80 A	30 kW
PS 11500-60	0–1500 V	0–60 A	30 kW
PS 12000-40	0–2000 V	0–40 A	30 kW
