Programmable DC power supply, 1.5 kW to 3 kW per 2U unit
Voltages 0–60 V up to 0–1500 V, currents 0–6 A up to 0–120 A
Autoranging output stage; CV, CC, CP and CR regulation with fast crossover
Digital regulation with 16-bit ADCs/DACs and selectable control speed
110–240 V AC single-phase input (power derating at 110/120 V), active PFC typ. 0.99, efficiency up to 95%
5-inch colour TFT touch panel; SCPI and ModBus, LabVIEW and IVI drivers
USB, Ethernet, analog and USB host built in; optional CAN, CANopen, RS232, Profibus, Profinet, EtherCAT, ModBus TCP
Master-slave and Share-Bus parallel operation of up to 64 units of the 10000 series

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

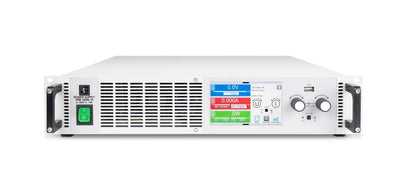

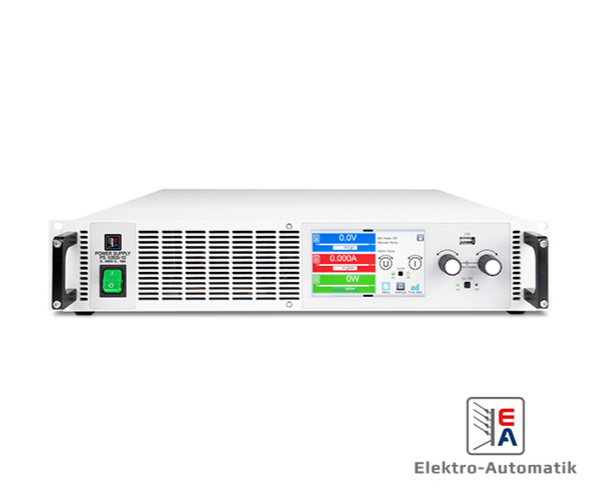

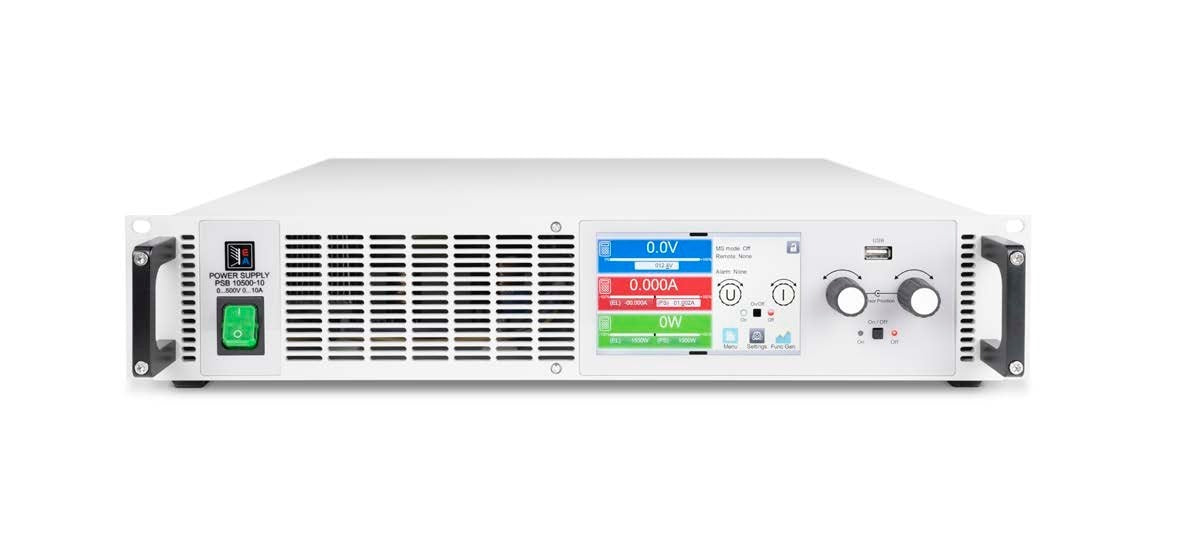

Programmable DC Power Supply PS 10000 2U Series

The PS 10000 2U series are programmable DC power supplies in a 19-inch 2U rack enclosure, delivering 1.5 kW to 3 kW per unit with output voltages 0–60 V up to 0–1500 V and currents 0–6 A up to 0–120 A. They share the 10000-series autoranging power stage, high-resolution digital regulation and touch-panel control of the PSI 10000, but without the function generator, which makes them a cost-effective choice for system integration, burn-in and production test where a stable, accurate DC source is needed.

Models

Model	Voltage	Current	Power
PS 10060-60	0–60 V	0–60 A	1.5 kW
PS 10080-60	0–80 V	0–60 A	1.5 kW
PS 10200-25	0–200 V	0–25 A	1.5 kW
PS 10360-15	0–360 V	0–15 A	1.5 kW
PS 10500-10	0–500 V	0–10 A	1.5 kW
PS 10750-06	0–750 V	0–6 A	1.5 kW
PS 10060-120	0–60 V	0–120 A	3 kW
PS 10080-120	0–80 V	0–120 A	3 kW
PS 10200-50	0–200 V	0–50 A	3 kW
PS 10360-30	0–360 V	0–30 A	3 kW
PS 10500-20	0–500 V	0–20 A	3 kW
PS 10750-12	0–750 V	0–12 A	3 kW
PS 11000-10	0–1000 V	0–10 A	3 kW
PS 11500-06	0–1500 V	0–6 A	3 kW
