Regenerative electronic DC load, 1.5 kW to 3 kW per 2U unit
Voltages 0–80 V up to 0–1500 V, currents 0–6 A up to 0–120 A
Energy recovery to the grid, efficiency up to 95%
Autoranging input stage; CV, CC, CP and CR modes with fast crossover
Function generator, battery test mode and MPPT solar inverter test mode
110–240 V AC single-phase input (power derating at 110/120 V), active PFC typ. 0.99
USB, Ethernet, analog and USB host built in; optional CAN, CANopen, RS232, Profibus, Profinet, EtherCAT, ModBus TCP
Master-slave and Share-Bus parallel operation of up to 64 units of the 10000 series

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

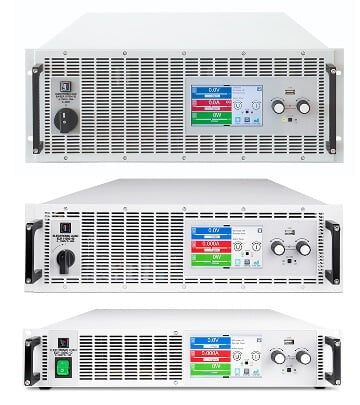

Regenerative Electronic DC Load ELR 10000 2U Series

The ELR 10000 2U series are regenerative programmable electronic DC loads in a 19-inch 2U rack enclosure, sinking 1.5 kW to 3 kW per unit at voltages 0–80 V up to 0–1500 V and currents 0–6 A up to 0–120 A. Instead of converting the absorbed energy into heat, they feed it back to the local grid with efficiency up to 95%, reducing energy and cooling costs in burn-in, end-of-line and R&D testing. An autoranging input stage, CV/CC/CP/CR modes, an integrated function generator, battery test mode and a solar inverter (MPPT) test mode make the ELR 10000 suited to testing batteries, fuel cells, DC sources, chargers and power electronics.

Models

Model	Voltage	Current	Power
ELR 10080-60	0–80 V	0–60 A	1.5 kW
ELR 10200-25	0–200 V	0–25 A	1.5 kW
ELR 10360-15	0–360 V	0–15 A	1.5 kW
ELR 10500-10	0–500 V	0–10 A	1.5 kW
ELR 10750-06	0–750 V	0–6 A	1.5 kW
ELR 10080-120	0–80 V	0–120 A	3 kW
ELR 10200-50	0–200 V	0–50 A	3 kW
ELR 10360-30	0–360 V	0–30 A	3 kW
ELR 10500-20	0–500 V	0–20 A	3 kW
ELR 10750-12	0–750 V	0–12 A	3 kW
ELR 11000-10	0–1000 V	0–10 A	3 kW
ELR 11500-06	0–1500 V	0–6 A	3 kW
