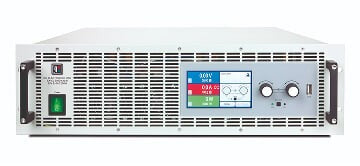

• EA Elektro-Automatik EL 9000 B 3U

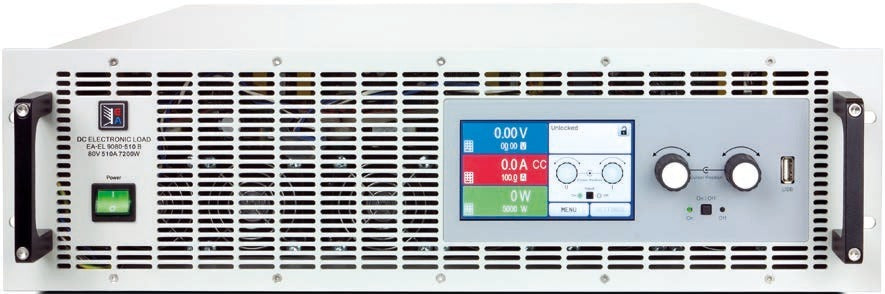

  • EA Elektro-Automatik EL 9000 B 3U

EL 9000 B 3U 80V-750V 1.2kW-7.2kW

  • Programmable electronic DC load, 1.2 kW to 7.2 kW in 3U
  • Voltages 0–80 V up to 0–750 V, currents up to 510 A per unit
  • CV, CC, CP and CR modes; FPGA-based digital control
  • Function generator for arbitrary curves and XY table function
  • Expandable to 72 kW in cabinets via master-slave bus
  • Galvanically isolated analog and USB interfaces; slot for optional interface modules
  • SCPI and ModBus RTU/TCP; LabVIEW VIs and Windows control software
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

Programmable Electronic DC Load EL 9000 B 3U Series

The EL 9000 B series are programmable electronic DC loads in a 19-inch 3U enclosure with input power ratings from 1.2 kW to 7.2 kW, voltages 0–80 V up to 0–750 V and currents up to 510 A per unit, expandable to 72 kW in cabinet systems. An FPGA-based digital control circuit provides CV, CC, CP and CR modes, an extensive function generator for arbitrary curves and a table-based XY function for simulating non-linear internal resistances. A multilingual colour touch panel, master-slave bus and Share bus for parallel and two-quadrant (source-sink) operation make the EL 9000 B well suited to power supply, battery and component testing.

Models

Model Voltage Current Power Article no.
EL 9500-30 B 0–500 V 0–30 A 1.2 kW 33200263
EL 9750-20 B 0–750 V 0–20 A 1.2 kW 33200264
EL 9360-40 B 0–360 V 0–40 A 1.8 kW 33200262
EL 9200-70 B 0–200 V 0–70 A 2 kW 33200261
EL 9080-170 B 0–80 V 0–170 A 2.4 kW 33200260
EL 9500-60 B 0–500 V 0–60 A 2.4 kW 33200268
EL 9750-40 B 0–750 V 0–40 A 2.4 kW 33200269
EL 9360-80 B 0–360 V 0–80 A 3.6 kW 33200267
EL 9500-90 B 0–500 V 0–90 A 3.6 kW 33200273
EL 9750-60 B 0–750 V 0–60 A 3.6 kW 33200274
EL 9200-140 B 0–200 V 0–140 A 4 kW 33200266
EL 9080-340 B 0–80 V 0–340 A 4.8 kW 33200265
EL 9360-120 B 0–360 V 0–120 A 5.4 kW 33200272
EL 9200-210 B 0–200 V 0–210 A 6 kW 33200271
EL 9080-510 B 0–80 V 0–510 A 7.2 kW 33200270

EA Elektro-Automatik is part of Tektronix. Please contact us for a quotation and lead time.
