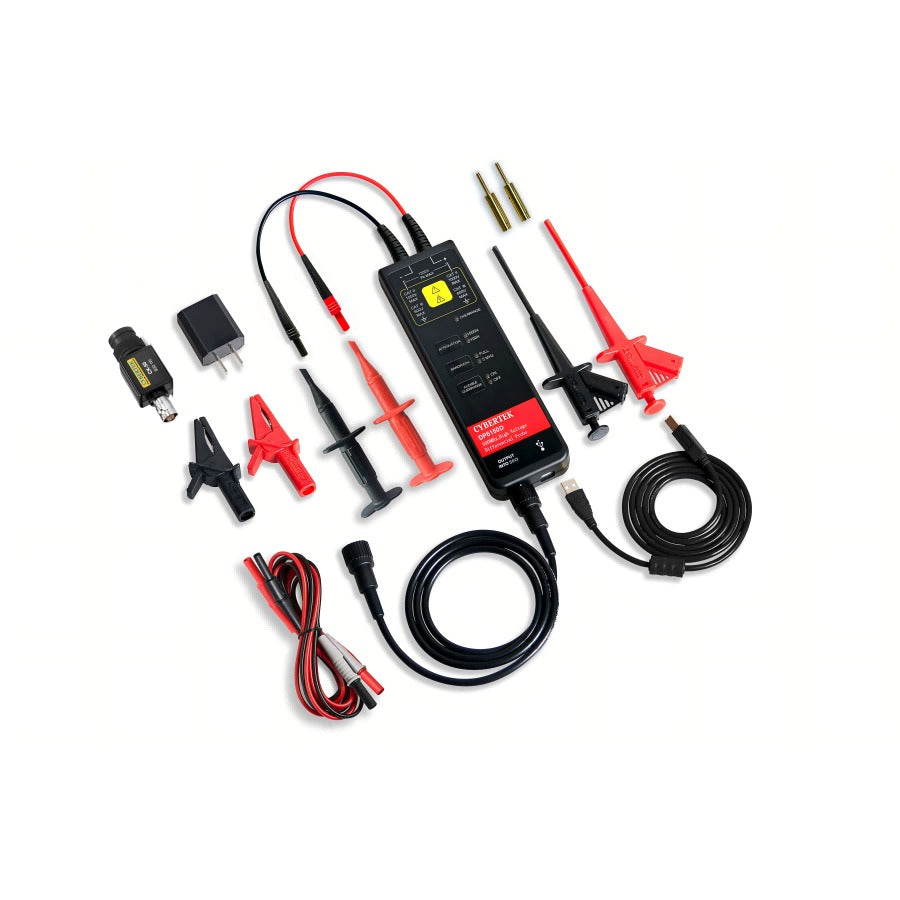

DPX6000D Series Smart High-Voltage Differential Probe 700–7000 V, 500 MHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The DPX6000D series are smart high-voltage differential probes with 500 MHz bandwidth for safe floating measurement in switching power supplies, inverters, motor drives and other power electronics. Each model has two attenuation ranges, a 5 MHz bandwidth-limit switch and an audible and visual over-range alarm.
With built-in communication, the probes work with the OT7001 smart probe controller, which sets the oscilloscope model, voltage type, attenuation ratio and delay automatically. The standard BNC output connects to any oscilloscope set to 1 MΩ input impedance.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Bandwidth | DC–500 MHz |
| Accuracy | ±2% |
Model Comparison
| Model | Max. Differential Voltage (RMS) | Max. Differential Voltage (Peak) | Attenuation |
|---|---|---|---|
| DPX6070D | 49 V/495 V | 70 V/700 V | 20X / 200X |
| DPX6150D | 106 V/1060 V | 150 V/1500 V | 100X / 1000X |
| DPX6350D | 247 V/2475 V | 350 V/3500 V | 200X / 2000X |
| DPX6700D | 495 V/4950 V | 700 V/7000 V | 200X / 2000X |
Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
