DPX6000B Series Smart High-Voltage Differential Probe 700–7000 V, 300 MHz

Key Features

Smart probe: works with the OT7001 smart probe controller for automatic oscilloscope setup
Floating differential measurement for high-voltage power circuits
Two attenuation ranges per model
5 MHz bandwidth-limit switch to filter high-frequency noise
Audible and visual over-range alarm
Settings auto-saved at power-off
Standard BNC output (1 MΩ oscilloscope input)

Model DPX6070B DPX6150B DPX6350B DPX6700B

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

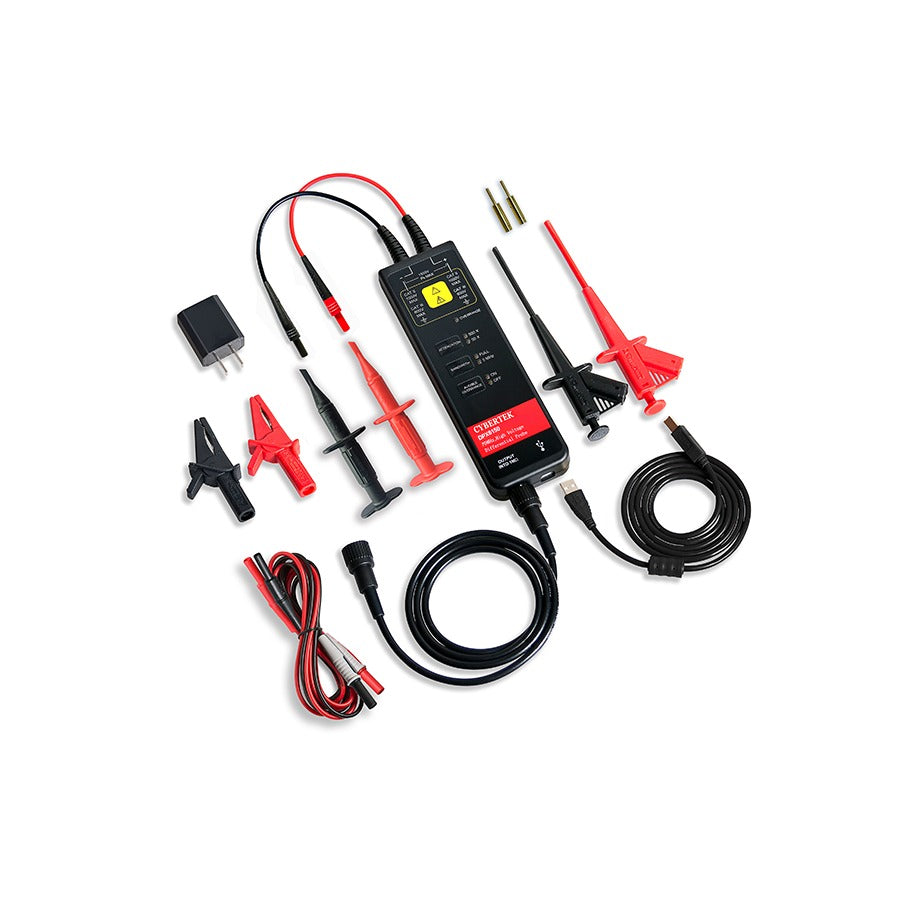

The DPX6000B series are smart high-voltage differential probes with 300 MHz bandwidth for safe floating measurement in switching power supplies, inverters, motor drives and other power electronics. Each model has two attenuation ranges, a 5 MHz bandwidth-limit switch and an audible and visual over-range alarm.

With built-in communication, the probes work with the OT7001 smart probe controller, which sets the oscilloscope model, voltage type, attenuation ratio and delay automatically. The standard BNC output connects to any oscilloscope set to 1 MΩ input impedance.

Models & Specifications

Common Specifications

Specification	Value
Bandwidth	DC–300 MHz
Accuracy	±2%

Model Comparison

Model	Max. Differential Voltage (RMS)	Max. Differential Voltage (Peak)	Attenuation
DPX6070B	49 V/495 V	70 V/700 V	20X / 200X
DPX6150B	106 V/1060 V	150 V/1500 V	50X / 500X
DPX6350B	247 V/2475 V	350 V/3500 V	100X / 1000X
DPX6700B	495 V/4950 V	700 V/7000 V	200X / 2000X
