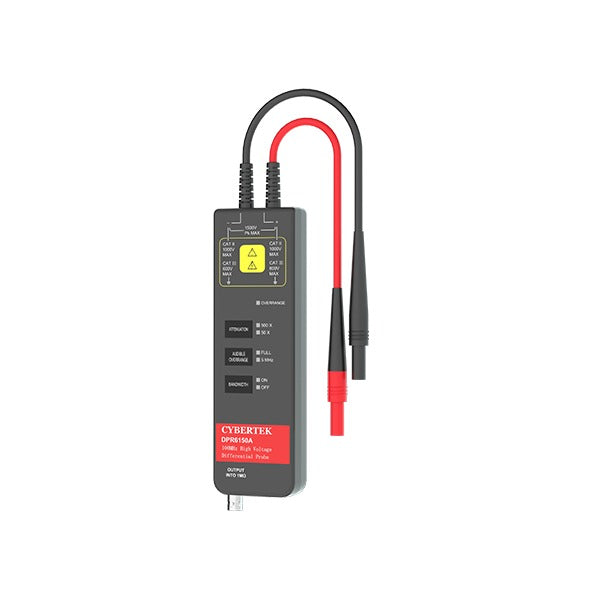

DPR6000A Series Smart High-Voltage Differential Probe 700–7000 V, 100 MHz

Key Features

  • Remote control from a PC through the OT7052 smart probe controller
  • Floating differential measurement for high-voltage power circuits
  • Two attenuation ranges per model
  • 5 MHz bandwidth-limit switch to filter high-frequency noise
  • Audible and visual over-range alarm
  • Settings auto-saved at power-off
  • Standard BNC output (1 MΩ oscilloscope input)
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The DPR6000A series are smart high-voltage differential probes with 100 MHz bandwidth and differential ranges up to 7000 V peak. Each model has two attenuation ranges, a 5 MHz bandwidth-limit switch and an audible and visual over-range alarm that can be muted.

Through the OT7052 smart probe controller, the probe status can be read from a PC and range, bandwidth limit and alarm mute can be switched remotely. The standard BNC output connects to any oscilloscope set to 1 MΩ input impedance.

Models & Specifications

Common Specifications

Specification Value
Bandwidth DC–100 MHz
Accuracy ±2%

Model Comparison

Model Max. Differential Voltage (RMS) Max. Differential Voltage (Peak) Attenuation

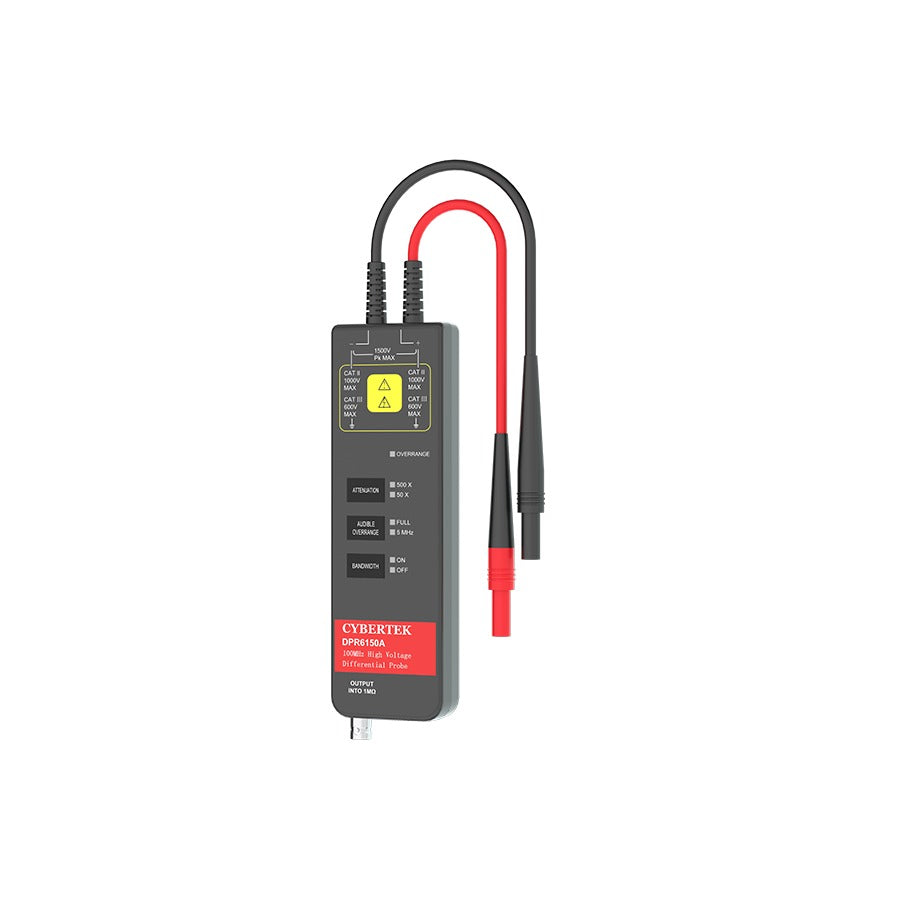

DPR6070A 49 V/495 V 70 V/700 V 10X / 100X
DPR6150A 106 V/1060 V 150 V/1500 V 50X / 500X
DPR6350A 247 V/2475 V 350 V/3500 V 100X / 1000X
DPR6700A 495 V/4950 V 700 V/7000 V 100X / 1000X

Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
